9 OM-SKEWER SOAK
Electrical Connections
The final electrical connections between the Skewer Soak and the electrical supply
must be made by a licensed electrician. The Skewer Soak has several options
for motors and heater. Review the information tag for determining the specific
requirements of the machine being installed (see Verify the Electric Requirements
section of this instruction booklet).
Checking the Motor Rotation (“JOG” Feature)
The motor must rotate in the correct direction in order for the Skewer Soak to function
properly. An arrow indicating the direction of rotation is located on the pump housing.
The control unit has a feature that allows the motor to be “jogged” for checking the
rotation even if the wash tank is empty. Press and hold the green START button for 5
to 10 seconds and watch the fan blades inside the motor fan cover. After holding the
start button for the 5 to 10 second delay, the motor will start for a few rotations and
automatically stop if the wash tank is empty. If the wash tank is full of water the motor
will continue to run even if the direction of rotation is not correct. When the wash tank
is full, the red STOP button must be pressed to stop the motor. Running the motor
in the wrong direction does not damage the motor or pump, but the pump will not
circulate water in the wash tank correctly.
Complete the connection
of all drains and water
supply lines
IMPORTANT:
ALL PLUMBING MUST CONFORM TO LOCAL BUILDING CODES.
IMPORTANT:
THE MOTOR MUST ROTATE IN THE CORRECT DIRECTION FOR THE
MACHINE TO OPERATE PROPERLY. USE THE “JOG” FEATURE TO CHECK
THE MOTOR ROTATION.

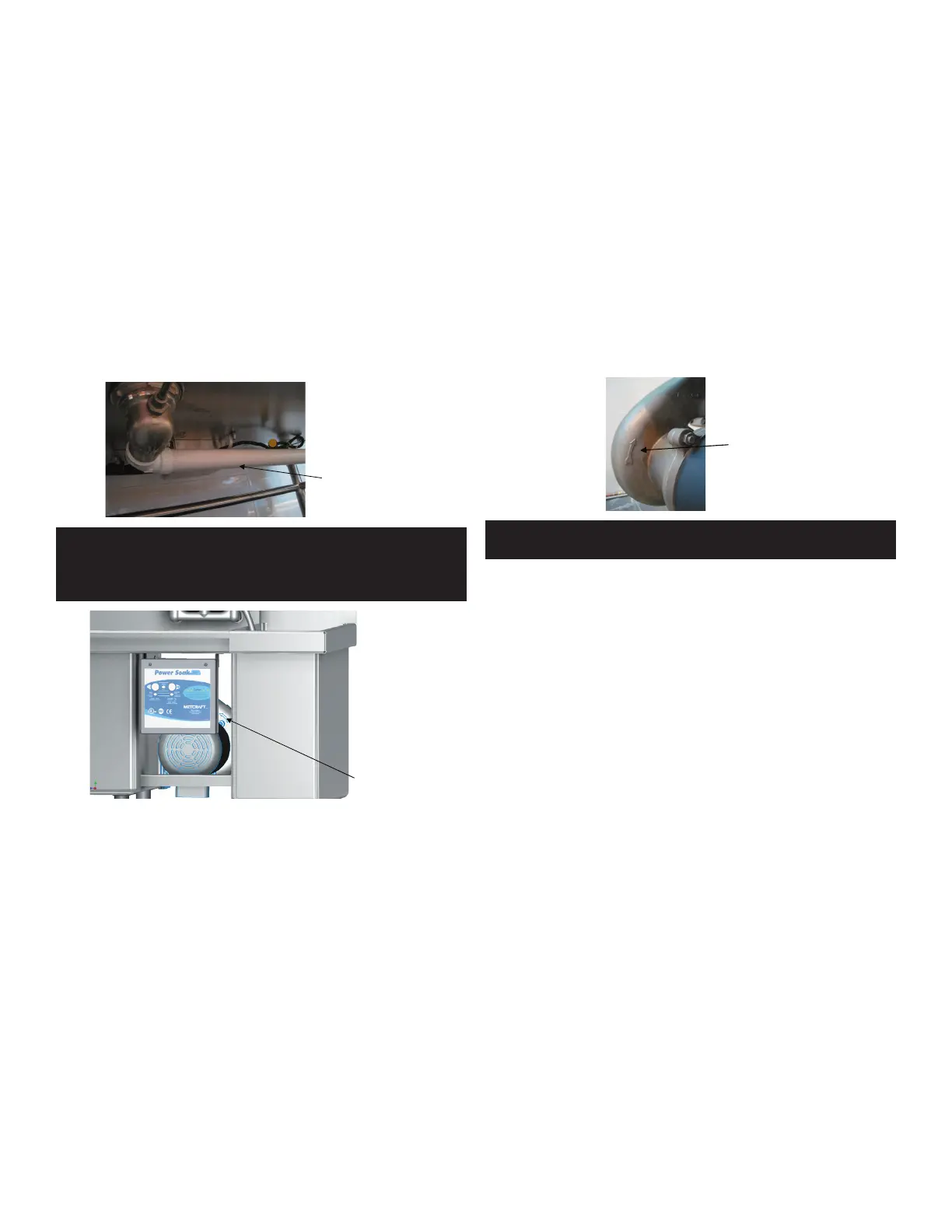

Arrow indicating the
direction of rotation is
located on the pump
housing
Shelving
Reinstall any shelving that was removed for convenience of installation. If the shelving
is damaged or corroded, it is recommended that the shelving be replaced.
VALIDATING THE INSTALLATION
TESTING THE COMPONENTS
Check for Leaks
• Turn on the water supply and inspect all joints for leaks.
• Close the drain valve(s), fill the sink(s) with water and inspect the drain fittings for
leaks.
• Open the drain valve(s) and inspect the drain joins for leaks as the water is
draining from the sink.
Check the Electrical Installation
• Verify that there are no loose wires or open electrical enclosure.
• Fill the wash sink with water and press the START button to see that the motor will
start. Have a qualified electrician verify that the amp draw on the electrical supply
is within the specifications on the identification tag.
• Check motor rotation for the correct direction as indicated by the arrow on the
pump housing.
Direction of
rotation arrow
IMPORTANT:
MOTOR ROTATION MUST BE THE CORRECT DIRECTION FOR THE MACHINE
TO OPERATE CORRECTLY.
Check Operation
• Open each faucet knob and verify that water flows from each hand control. Verify
that hot and cold water are running from the correct hand control.
• With the sink full of water, skewers in the rack and the motor running, verify that
skewer rack rotates gently with the water flow.
• With the water valves open, turn the center knob to see that it will shut off flow to
the faucet and that the hand sprayer is still functional.
Check the Chemical Dispensing System
The Chemical Dispensing System must be checked by a representative of the
manufacturer. It will need to be verified that the proper amount of chemical is
being dispensed and that the proper chemical concentration is maintained during
operation.
