Connecting the ber cable
1. Attach the duplex LC connector on the network cable to the SFP+ transceiver.
2. Connect the other end of the cable to a device, switches with SFP+ installed, and
ber NIC on a workstation or media converter.
Removing the Transceiver Module
1. Make sure there is no network activity by consulting or checking with the
network administrator. Or through the management interface of the switch/
converter (if available), disable the port in advance.
2. Remove the ber optic cable gently.
3. Turn the lever of the MTB module to a horizontal position.
4. Pull out the module gently through the lever.
MTB Series Transceiver
1
2

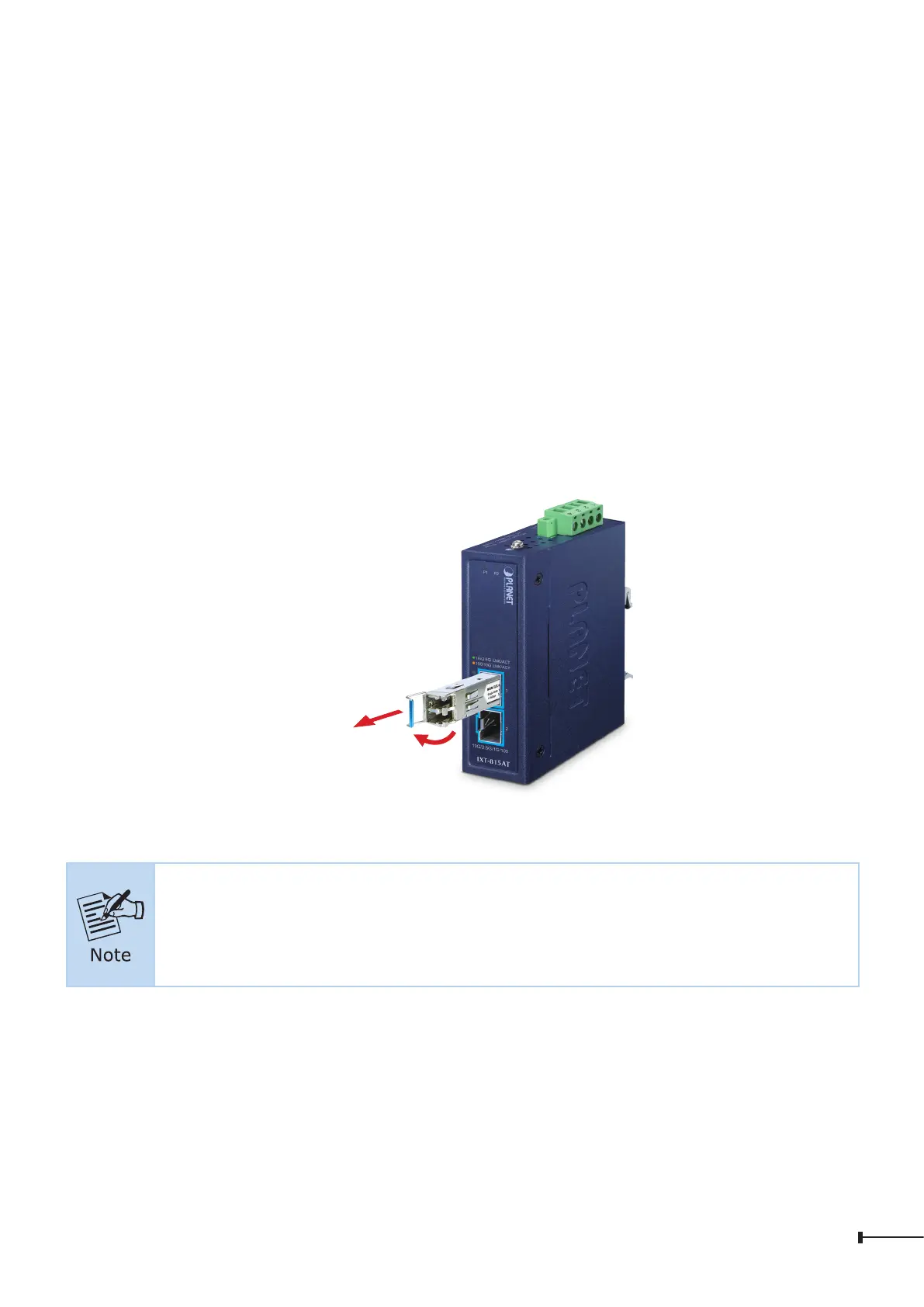

Figure 5-2: Pulling Out from the SFP+ Transceiver
Never pull out the module without pulling the lever or the push bolts on
the module. Directly pulling out the module with effort could damage the
module and SFP+ module slot of the Industrial Media Converter.
The 100/1G/2.5G/10GBASE-X port comes with auto-negotiation capability. It
automatically supports 100BASE-FX, 1000BASE-X, 2500BASE-X and 10GBASE-X
networks. Users only need to plug a working network device into the
100/1G/2.5G/10GBASE-X port, and then turn on the Media Converter. The port will
automatically run at 1000Mbps, 2500Mbps and 10000Mbps after the negotiation with
the connected device.
