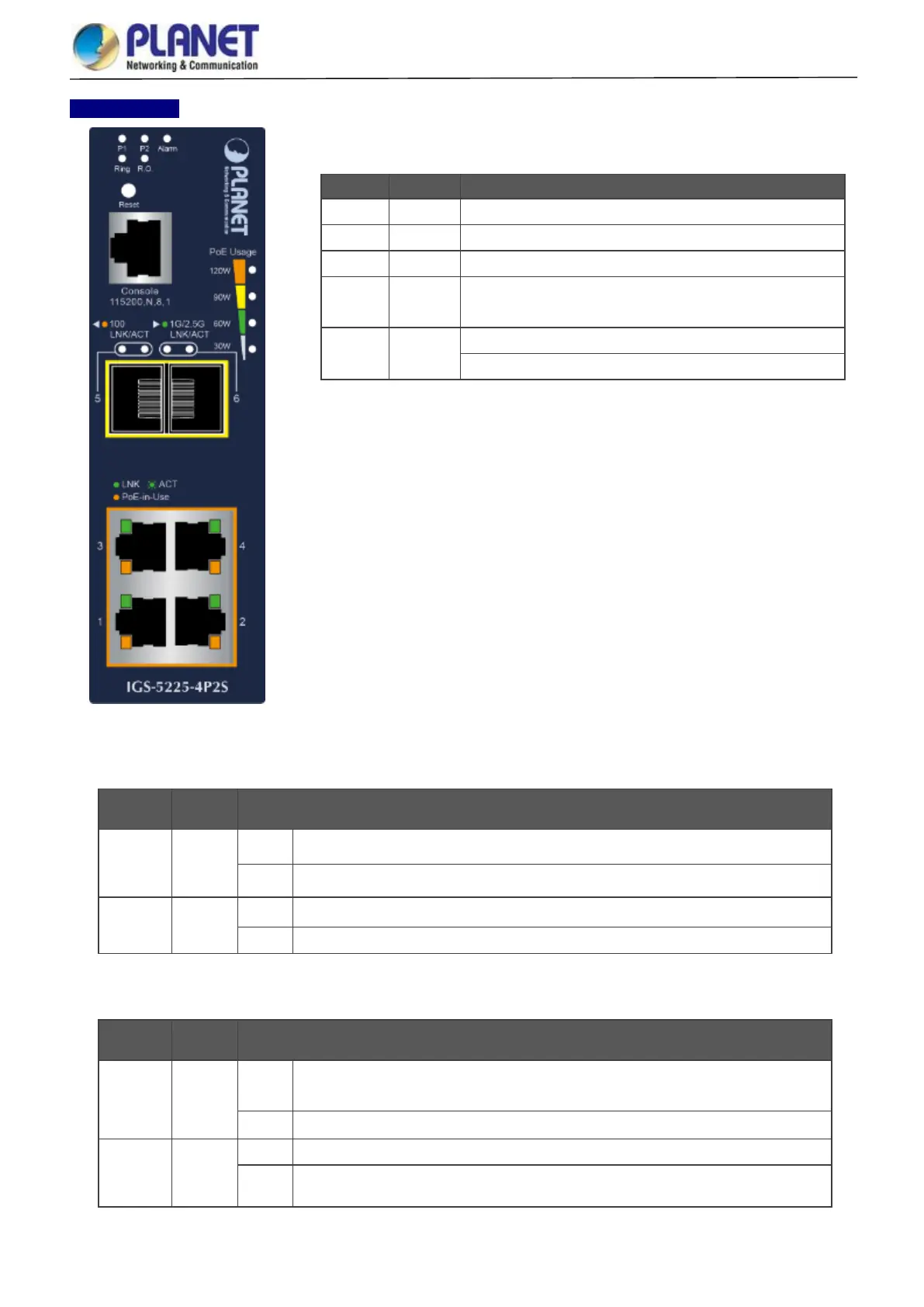

User’s Manual of IGS-5225 series
60
IGS-5225-4P2S
System
LED
Color
Function
PWR1
Green
Lights to indicate that the switch has power.
PWR2
Green
Lights to indicate that the switch has power.
Alarm
Red
Lights to indicate Power failure.
Ring
Green
Lights to indicate that the ERPS Ring has been created
successfully.
R.O.
Green
Lights to indicate that the Ring Owner has been enabled.
Lights to indicate that the switch has power.
Per 10/100/1000BASE-T Port with PoE (Port-1~Port-4)
LED
Color
Function
LNK/ACT
Green
Lights
Indicating the port is running at 10/100/1000Mbps speed and successfully established.
Blinks
Indicating that the switch is actively sending or receiving data over that port.
PoE
Amber
Lights
Indicating the port is providing DC in-line power with end-span.
Off
Indicating the connected device is not a PoE PD.
Per 100/1000BASE-X SFP Interface (Port-5~Port-6)
LED
Color
Function
1G/2.5G
LNK/ACT
Green
Lights
Indicating the port is running at 1000Mbps or 2500Mbps and successfully
established.
Blinks
Indicating that the switch is actively sending or receiving data over that port.
100
LNK/ACT
Amber
Lights
Indicating the port is running at 100Mbps speed and successfully established.
Blinks
Indicating that the switch is actively sending or receiving data over that port.
