User’s Manual of IGS-5225 series
54

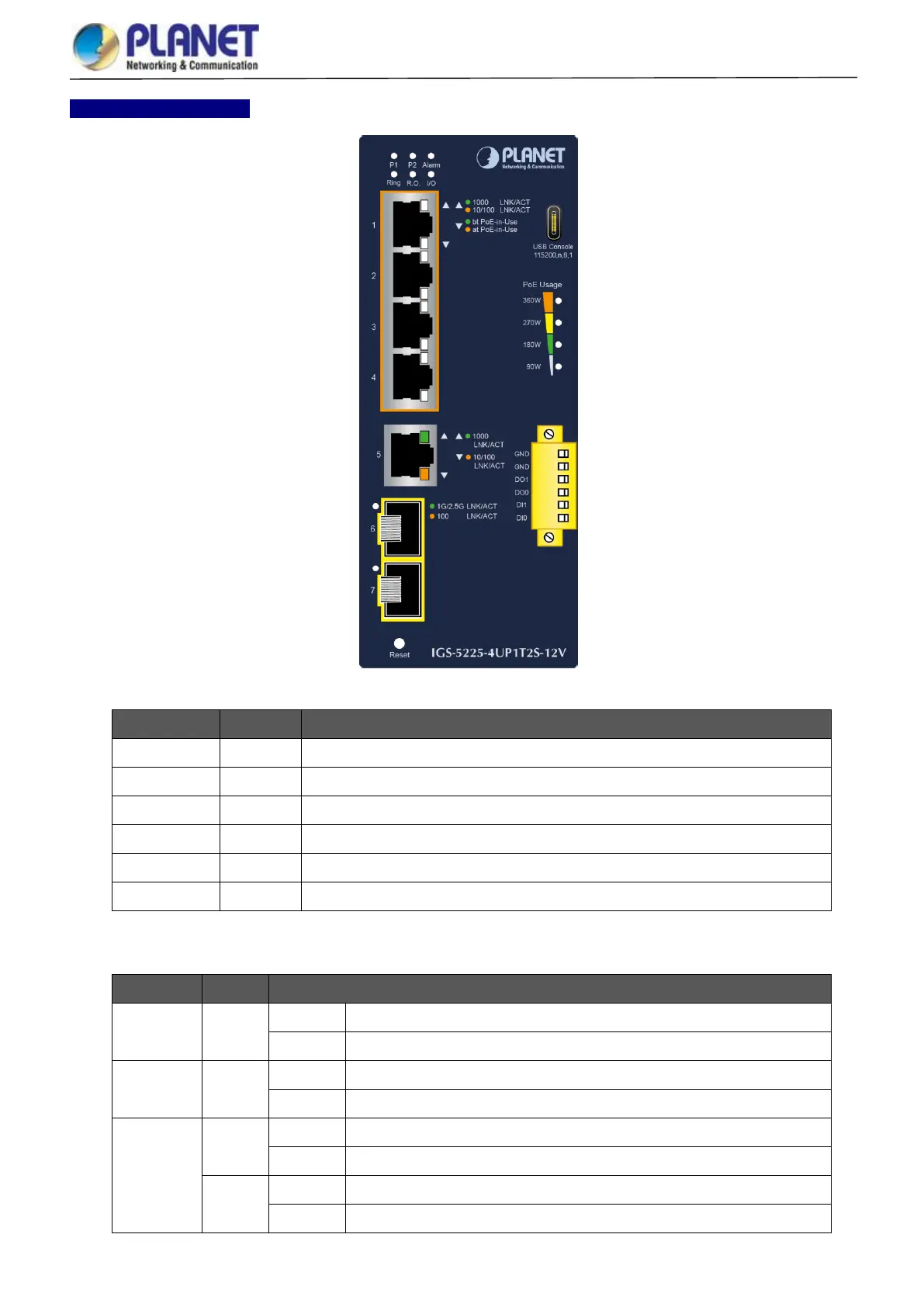

IGS-5225-4UP1T2S-12V
System
LED
Color
Function
P1
Green
Lights to indicate DC power input 1 has power.
P2
Green
Lights to indicate DC power input 2 has power.
Alarm
Red
Lights to indicate that Switch power or port has failed.
Ring
Green
Lights to indicate that the ERPS Ring has been created successfully.
R.O.
Green
Lights to indicate that Switch has enabled Ring Owner.
I/O
Red
Blinks to indicate that Switch AC/DC or port has failed or DI has event.
10/100/1000T RJ45 PoE++ Ports (Port 1 to port 4)
LED
Color
Function
1000
LNK/ACT
Green
Lights:
To indicate the port is successfully established.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
10/100
LNK/ACT
Amber
Lights:
To indicate the port is successfully established.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
PoE-in-Use
Green
Lights:
To indicate the port is providing DC in-line power under 802.3bt mode.
Off:
To indicate the connected device is not a PoE PD.
Amber
Lights:
To indicate the port is providing DC in-line power under 802.3at mode.
Off:
To indicate the connected device is not a PoE PD.
