User’s Manual of IGS-5225 series
262

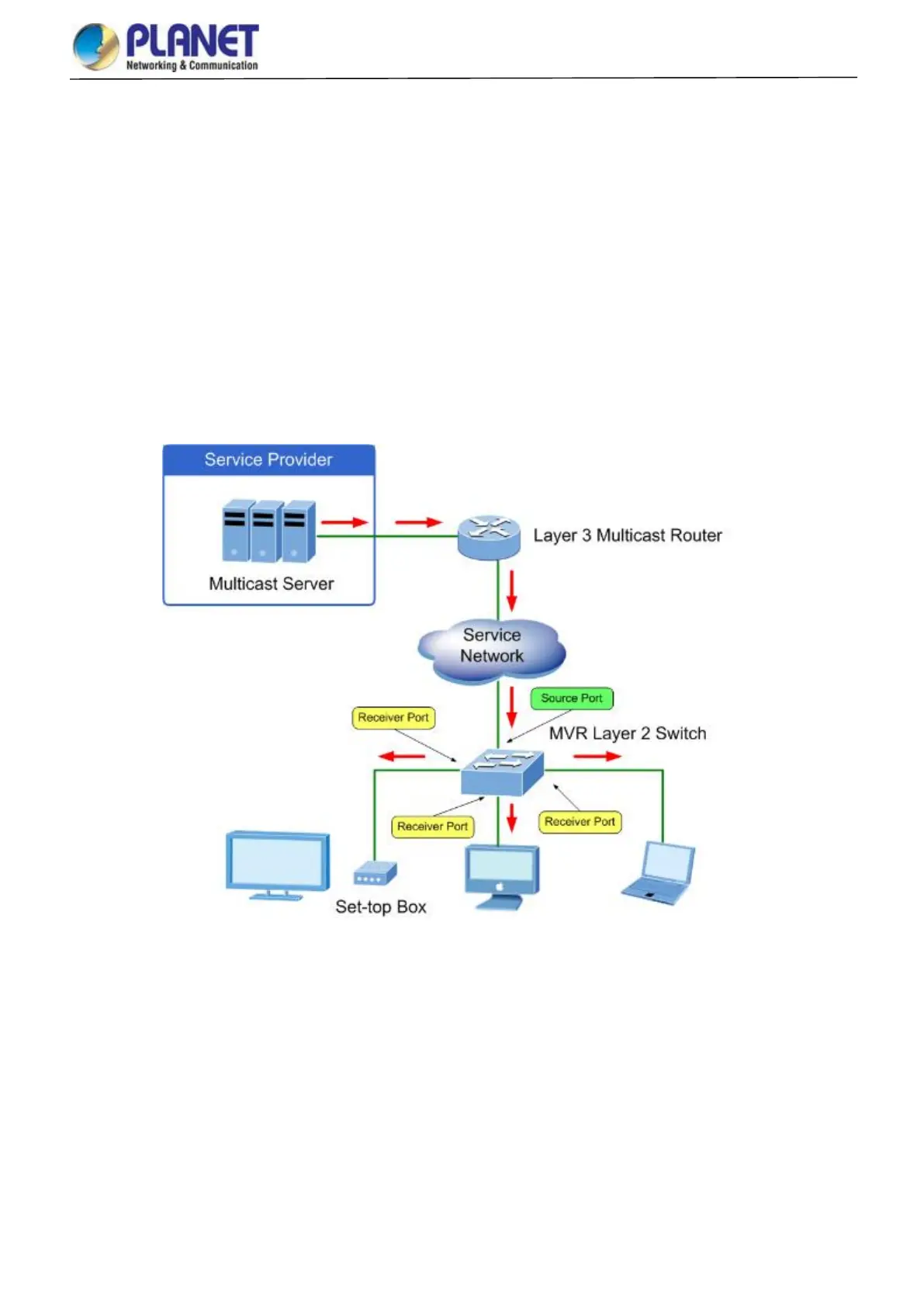

4.3.12 MVR (Multicast VLAN Registration)
The MVR feature enables multicast traffic forwarding on the Multicast VLANs.
■ In a multicast television application, a PC or a network television or a set-top box can receive the multicast stream.
■ Multiple set-top boxes or PCs can be connected to one subscriber port, which is a switch port configured as an MVR
receiver port. When a subscriber selects a channel, the set-top box or PC sends an IGMP/MLD report message to
Switch A to join the appropriate multicast group address.
■ Uplink ports that send and receive multicast data to and from the multicast VLAN are called MVR source ports.
It is allowed to create at maximum 8 MVR VLANs with corresponding channel settings for each Multicast VLAN. There will be
totally at maximum 256 group addresses for channel settings.
