User’s Manual of IGS-5225 series
254
4.3.10.9 IGMPv3 SFM Information
Entries in the IGMP SFM Information Table are shown on this page. The IGMP SFM (Source-Filtered Multicast)
Information Table also contains the SSM (Source-Specific Multicast) information. This table is sorted first by VLAN
ID, then by group, and then by Port. Different source addresses belong to the same group are treated as single
entry. The IGMP SFM Information screen in Figure 4-3-10-12 appears.

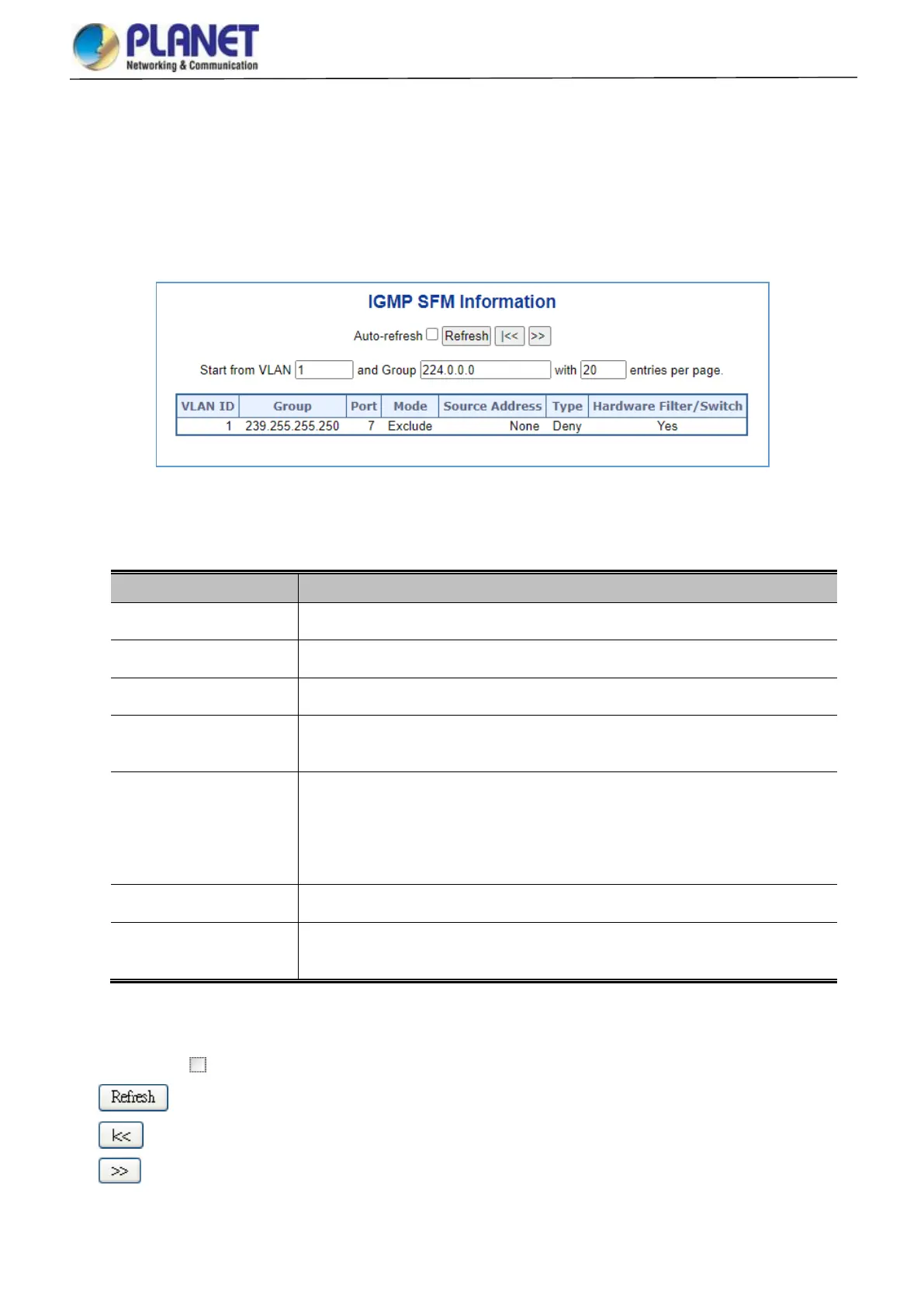

Figure 4-3-10-12: IGMPv3 SFM Information Page Screenshot
The page includes the following fields:
Object
Description
VLAN ID
VLAN ID of the group.
Groups
Group address of the group displayed.
Port
Switch port number.
Mode
Indicates the filtering mode maintained per (VLAN ID, port number, Group Address)
basis. It can be either Include or Exclude.
Source Address
IP Address of the source.
Currently, the maximum number of IPv4 source address for filtering (per group) is 8.
When there is no any source filtering address, the text "None" is shown in the
Source Address field.
Type
Indicates the Type. It can be either Allow or Deny.
Hardware Filter/Switch
Indicates whether data plane destined to the specific group address from the source
IPv4 address could be handled by chip or not.
Buttons
Auto-refresh : Automatic refresh occurs every 3 seconds.
: Refreshes the displayed table starting from the input fields.
: Updates the table starting from the first entry in the IGMP SFM Information Table.
: Updates the table, starting with the entry after the last entry currently displayed.
