11

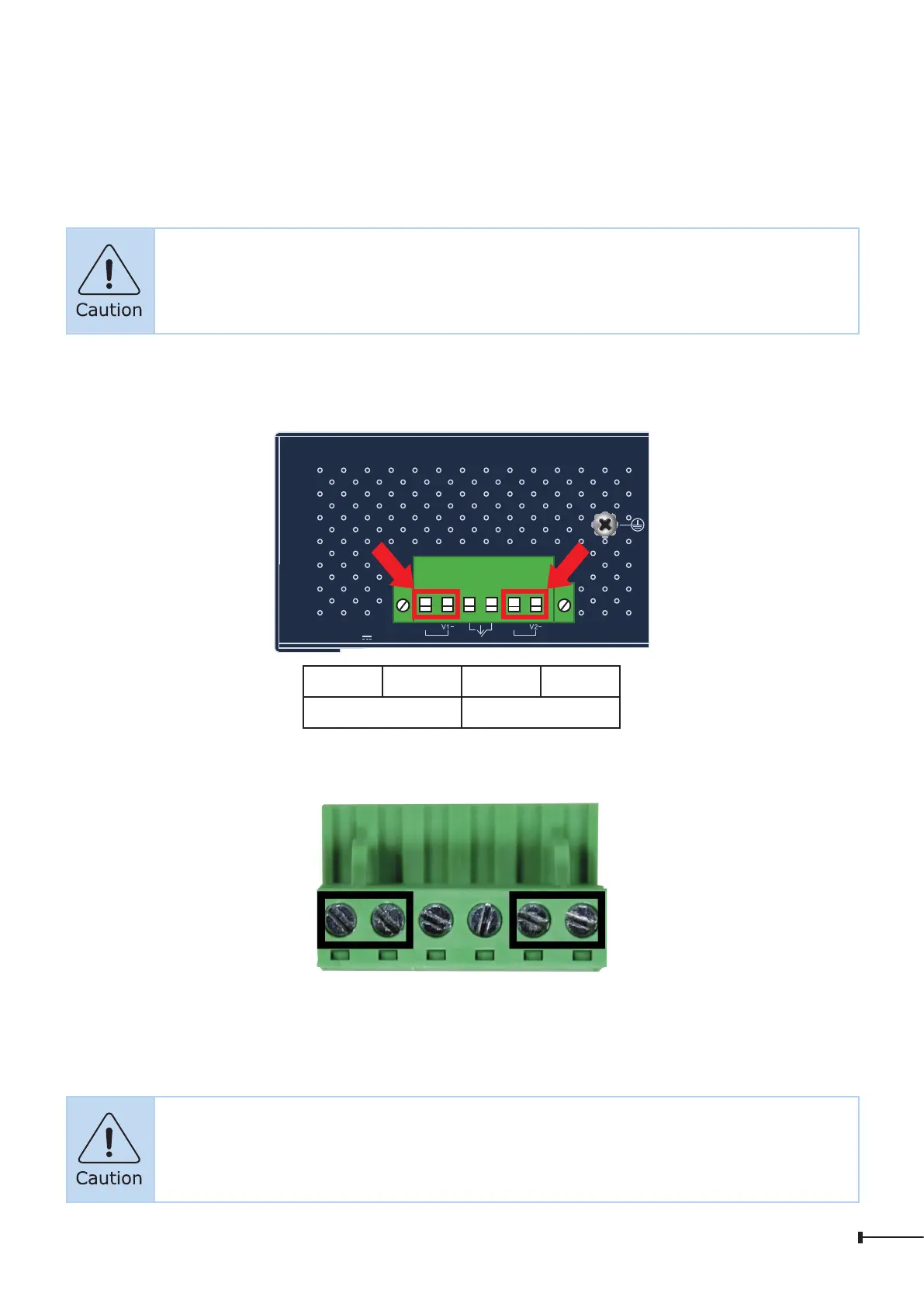

2.4 Wiring the Power Inputs
The 6-contact terminal block connector on the top panel of Industrial Ring Ethernet
Switch is used for two redundant power inputs. Please follow the steps below to
insert the power wire.
When performing any of the procedures like inserting the wires or tight-
ening the wire-clamp screws, make sure the power is OFF to prevent
from getting an electric shock.
1. Insert positive and negative DC power wires into contacts 1 and 2 for POWER 1,
or contacts 5 and 6 for POWER 2.
DC Input:
12-54V , 7A max.
V1+ V2+
PWR1 Alarm PWR2
Max. Fault Alarm Loading: 24V, 1A
1 2 3 4 5 6
V1+ V1- V2+ V2-
PWR1 PWR2
2. Tighten the wire-clamp screws for preventing the wires from loosening.
1 2 3 4 5 6
Power 1 Alarm Power 2
V+ V- V+ V-
PWR1 and PWR2 must provide the same DC voltage for power load
balance while operating with dual power input.
