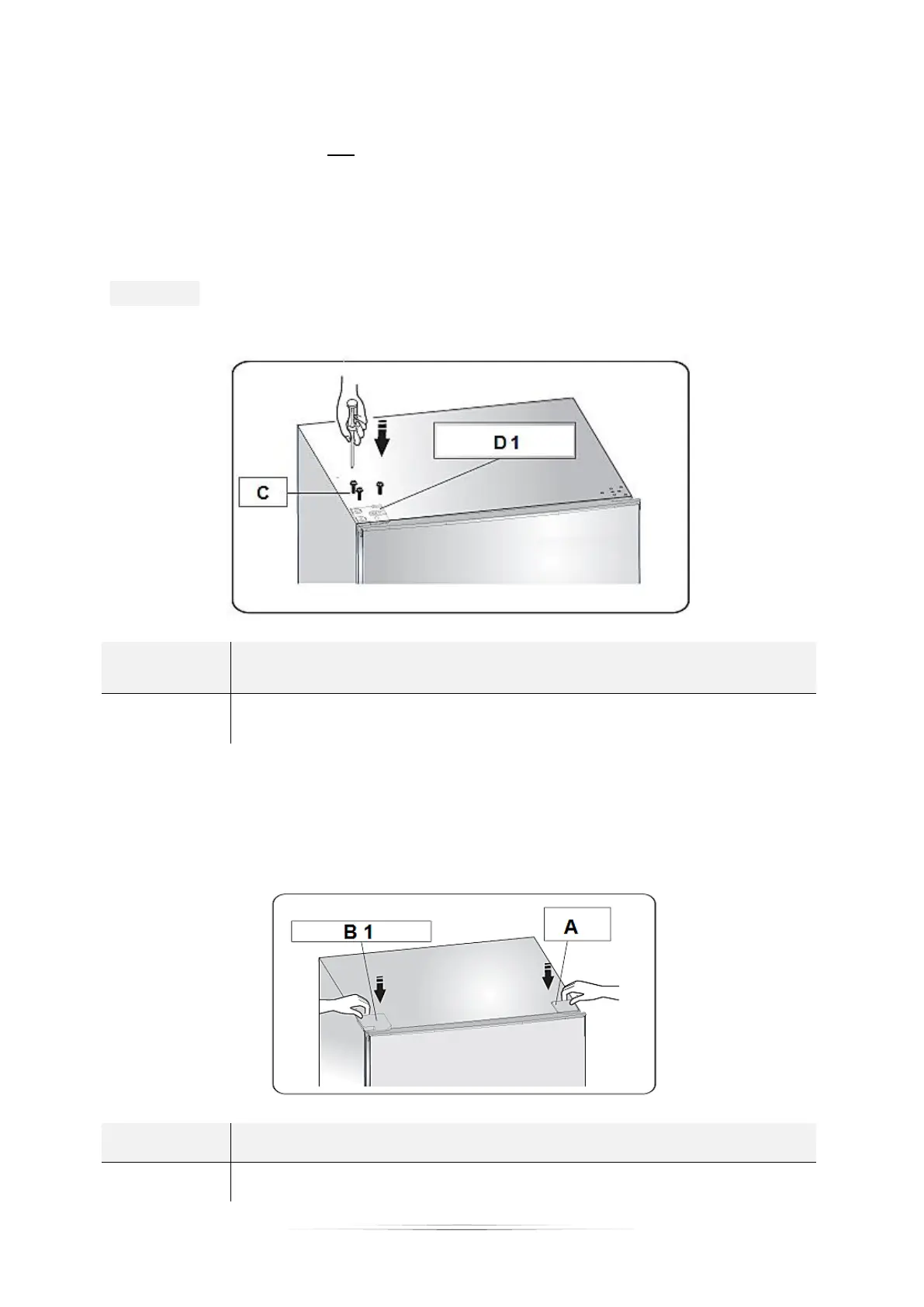

37. Align the prepared (s. above, step 7 / 8 / 9) upper door hinge (D 1) to the
prepared holes on the left side properly (s. fig. below). While doing so, insert the
hinge axis of the upper door hinge into the upper hinge hole of the fridge door.
Screw the hinge using the self-tapping screws (C); s. fig. below.
38. Meanwhile, hold the fridge door with your hand so it cannot drop down.
39. Ensure that the fridge door is fixed safely and properly by the hinges.
NOTICE! Adjust the door properly before you finally tighten the screws of
the hinge. The seal must close properly.
C
SELF-TAPPING SCREWS
D 1
PREPARED UPPER DOOR HINGE (turned through 180
0
)
➢ see also step 7 / 8 / 9, above
40. Install the screw hole cover (A) on the right top of the appliance (s. fig. below).
41. Also install the upper left hinge cover (B 1 / it is in the plastic bag) on the left
top of the appliance (s. fig. below).
42. Store the remaining right hinge cover (B) in a safe place.
A
SCREW HOLE COVER
B 1
UPPER LEFT HINGE COVER
