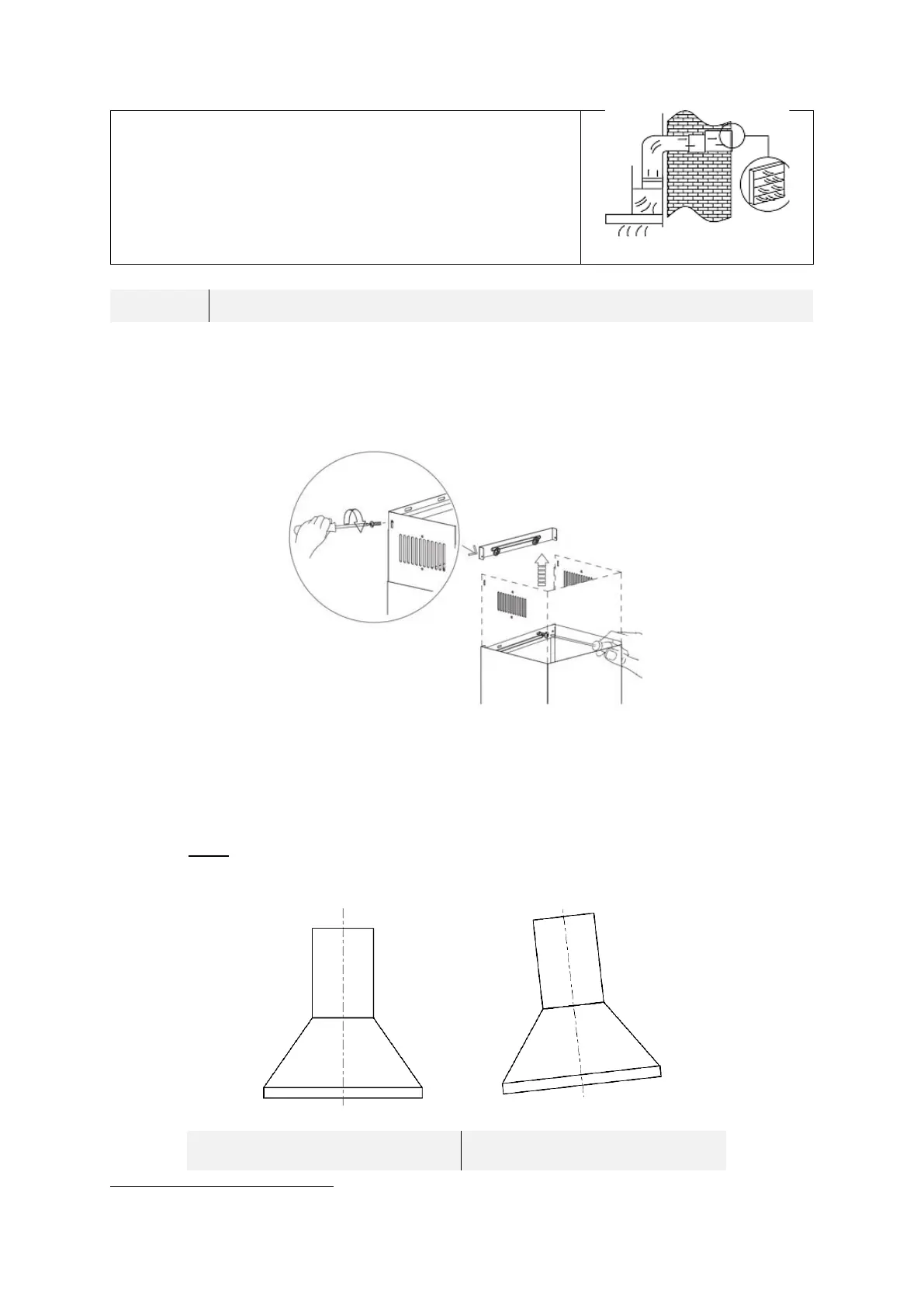

Horizontal: The exhaust air hose is routed to an outlet
opening with grille* in the house wall.
Fig. similar.
*
Item not included in the scope of delivery.
22. Pull the inner flue out upwards. Align the chimney according to the attached inner
chimney bracket. Fix the inner flue to the inner flue bracket with two screws (ST
4.2*9.5 mm) (see illustration below).
23. Install the grease filter(s) (if not already installed) and connect the mains cable
18
to the power supply. The installation of the grease filter is described in chapter
6.1 CLEANING THE GREASE FILTER.
24. Check that your device is mounted straight and level on the wall from the
front and side perspective (see illustration below), otherwise the device will
not work properly.
RIGHT
WRONG
18
If the mains socket is located inside the fireplace casing, you must insert the mains plug earlier.
