The air slots
17
of the inner chimney must point upwards and must not
be covered by the outer chimney. The air slots in the inner chimney are
not available on all appliance models. If your appliance model does not
have air slots in the inner chimney, you can skip this point.
20. Route the exhaust air hose (only for exhaust air operation) to the outside (see
illustration below).

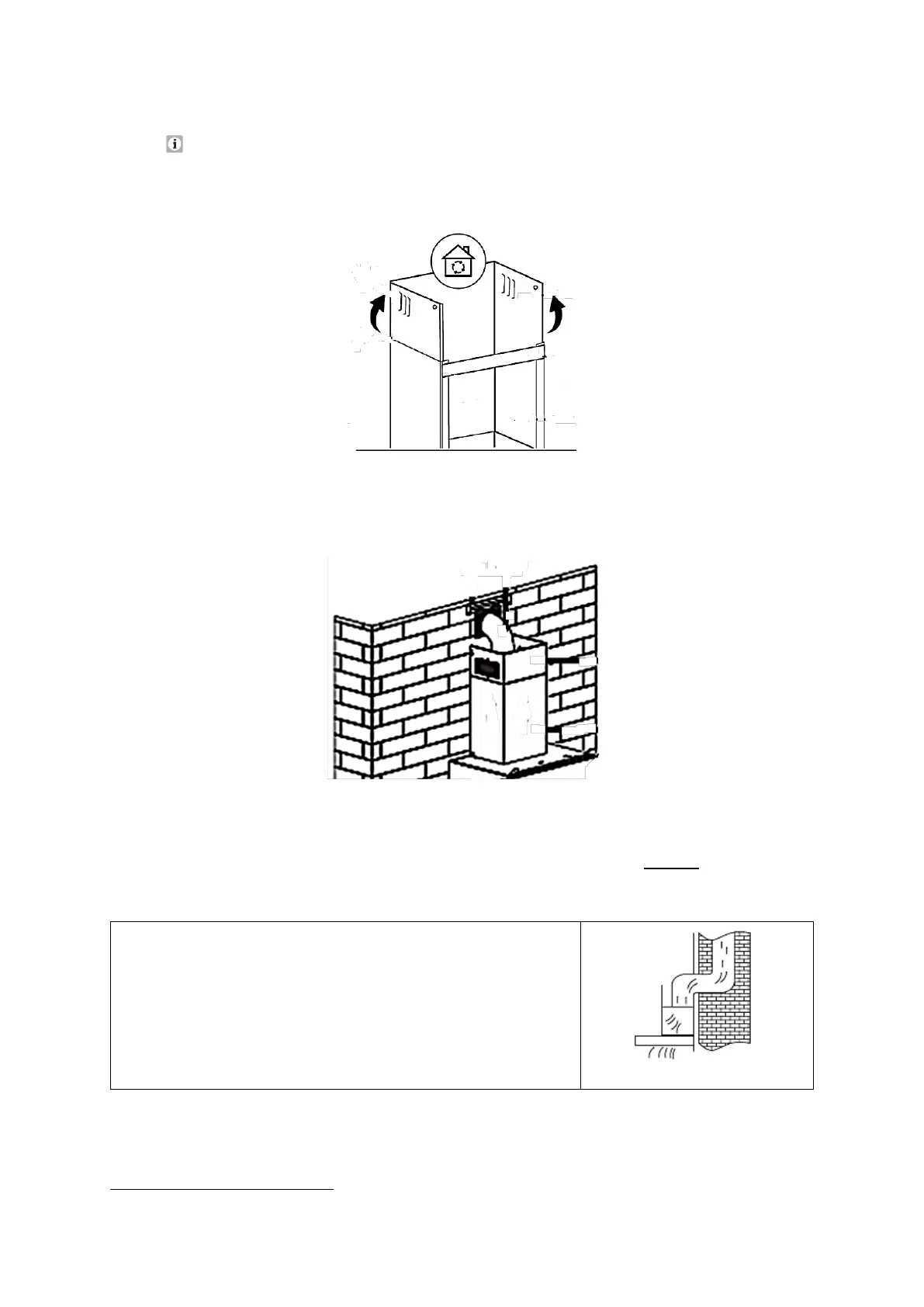

Fig. similar: Fig. serves only as an example.
21. You can route the exhaust air duct as follows (see below / ONLY for EXHAUST
AIR OPERATION).
Vertical: The exhaust air hose is routed to an outlet
cap* in the roof.
Fig. similar.
17
Equipment depends on the model.
