SOLARCHECK family
54
PHOENIX CONTACT 105608_en_01
6.6 Installing the SCK-M-I-xx current measuring mod-
ules
Opening or modifying the device is not permitted.
In the control cabinet, snap the device onto a 35 mm DIN rail in accordance with DIN EN 50022.
It is a good idea to install the PV string cables to be measured first.

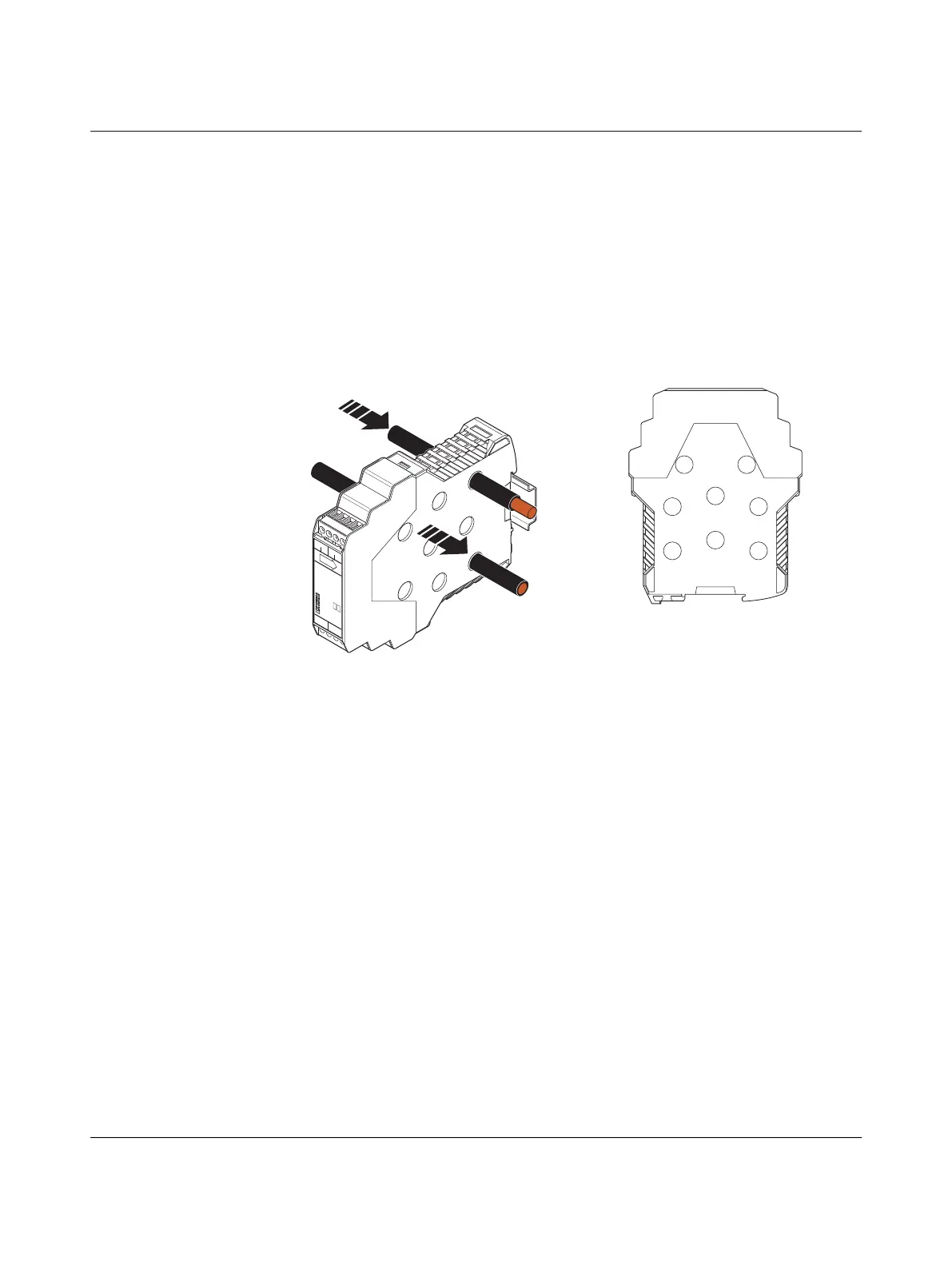

Guide the current measuring cables through the through connections indicated. The maxi-
mum cable diameter of the current measuring cable including insulation must not exceed
9.5 mm.
Figure 6-6 Assignment of the current measuring channels
For current measurement, only use suitable solar cables with insulation and conductor
cross-sections appropriate for the voltages and currents required in the system. For the
cable design in photovoltaic systems, see the relevant cross-references,
e.g., in IEC 60364-7-712 or equivalent standards.
Observe the correct current flow direction for DC current measurement in the measuring
module.
As a guide, the required current flow direction is indicated with an arrow.
P
_
O
U
T
SCK-M-I-8S-20A
Order No. 2903241
P
SCK BUS
D_IN
T
X
0
...1
0
V
U
O
U
T
U
IN
0
...1
0
V
GND2
GND1
S
T
R
IN
G
C
U
R
R
E
N
T
78
5
2
3
6
1
4
