Installation

105608_en_01 PHOENIX CONTACT 51

6. Optionally, set the baud rate. The default baud rate setting is 9600 bps. The baud rate

can be changed to the following values using DIP switches S1 to S4. Please note that

fast baud rates are generally more susceptible to interference.

7. The default parity and stop bit settings can be changed using DIP switches S5 and S6 and

DIP switch S7.

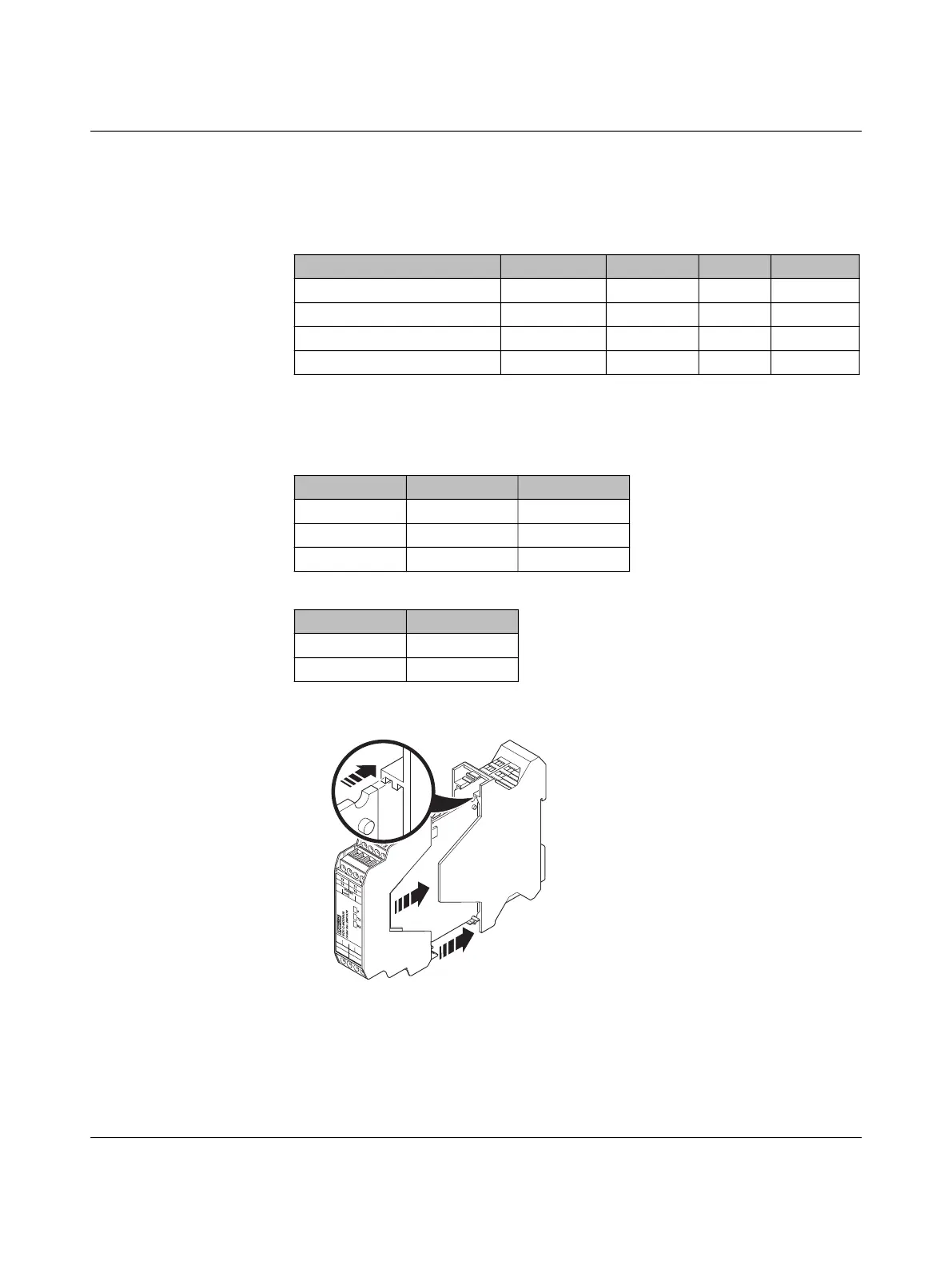

8. Place the PCB onto the guide rails and carefully reinsert it into the housing as far as it

will go. Snap the housing cover into place.

Table 6-9 Setting the baud rate

Baud rate [bps] S1 S2 S3 S4

9600 0 0 0 0

14400 1 0 0 0

19200 0 1 0 0

38400 1 1 0 0

Table 6-10 Setting the parity

Parity S5 S6

Even 1 0

Odd 1 1

None 0 x

Table 6-11 Setting the stop bits

Stop bits S7

1 0

2 1

T6

T5

T7

T8

GND2

B

A

C

O

M

+

2

4

v

+

2

4

V

G

N

D

1

G

+24V

GND1
