Structure and dimensions

6452_en_11 Phoenix Contact 57 / 188

6 Structure and dimensions

6.1 Structure and dimensions of Inline terminals

6.1.1 Basic structure of terminals in the 24 V DC and

120 V AC/230 V AC areas

Regardless of the function and design width, an Inline terminal for these voltage areas

consists of the electronics base and the snap-on connector (Inline connector).

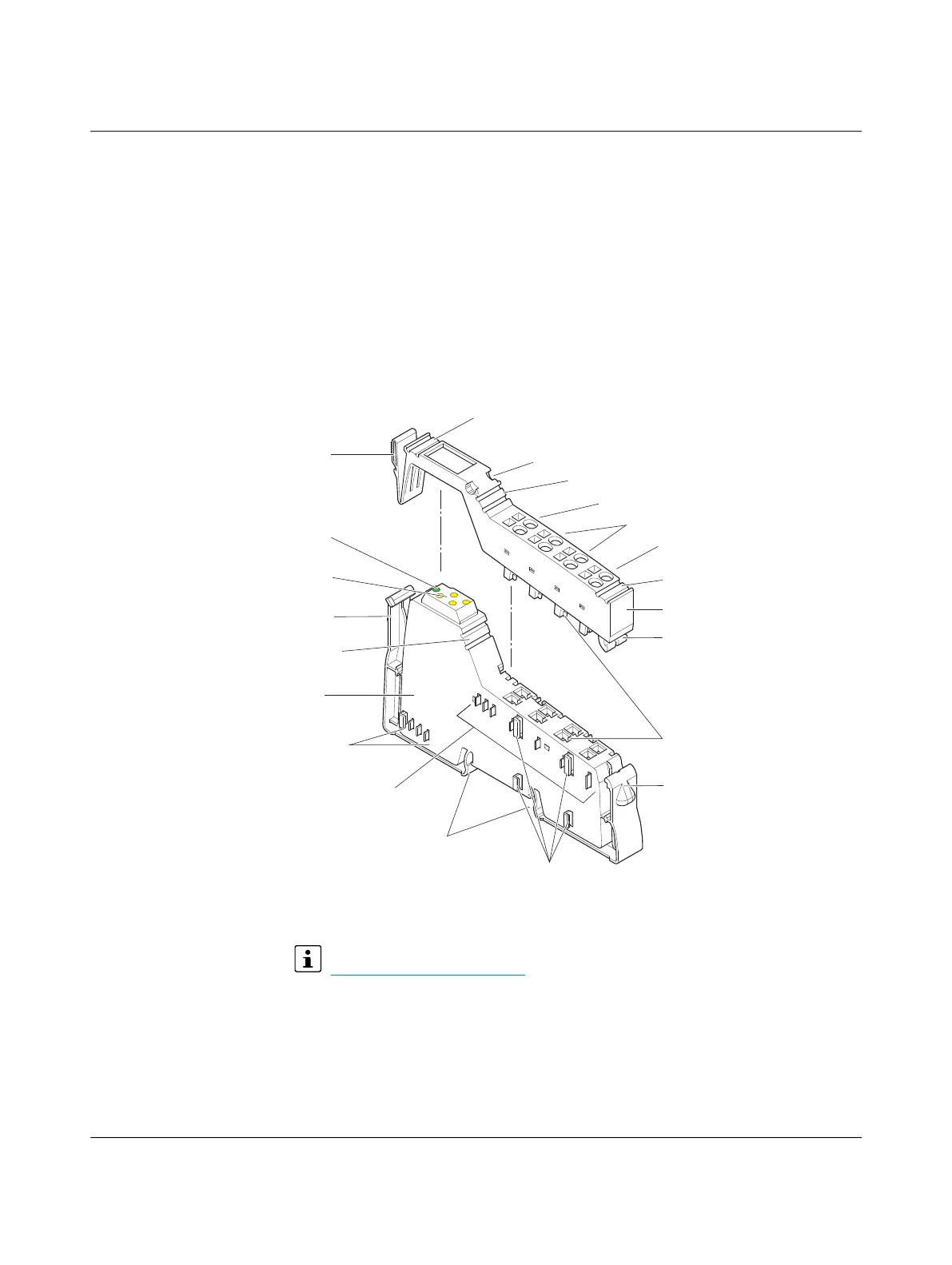

Figure 6-1 Basic structure of an Inline terminal

The components required for marking are listed on the item page at

phoenixcontact.com/products

.

1

2

3

4

D

I 4

Front

snap-on mechanism

Potential jumpers

(knife contacts)

Latching on

DIN rail

Slot encoding

ZBFM fieldmarking

for module marking

Back

snap-on mechanism

Colored

function encoding

Diagnostic and status

indicators

ZBFM field for connectormarking

Keyway for attaching fieldmarking

Back connector

shaft latching

ZBFM field for signal 1/2marking

ZBFM field for signal 3/4marking

Front

connector shaft latching

Signal terminals 1/2

FE or signal terminals 3/4

Potential terminals

Feather of

keyway/featherkey connection

Electronics base

Connector

Data jumpers

(knife contacts)

ZBFM: Zack marker sheets, flat
