Inline product groups

6452_en_11 Phoenix Contact 35 / 188

5.2.6.4 Accessory terminals

Potential distributor terminals and distance terminals are available as accessory termi-

nals.

Potential distributor terminals (for GND and 24 V) are designed for the economical return

wiring of sensor and actuator cables when using Inline terminals with 1-wire termination.

The distance terminal set creates the specified creepage distance when using AC termi-

nals. Both distance terminals interrupt the potential jumpers for the main voltage, seg-

ment voltage, ground, and functional ground.

Additional documentation For more detailed information about the function, properties, and wiring of the indi-

vidual terminals, please refer to the terminal-specific documentation.

5.2.6.5 Supply and segmentation options

Figure 5-8 provides an overview of supply and segmentation. For more detailed

information, please refer to Section “Electrical potential and data routing (Inline)” on

page 80.

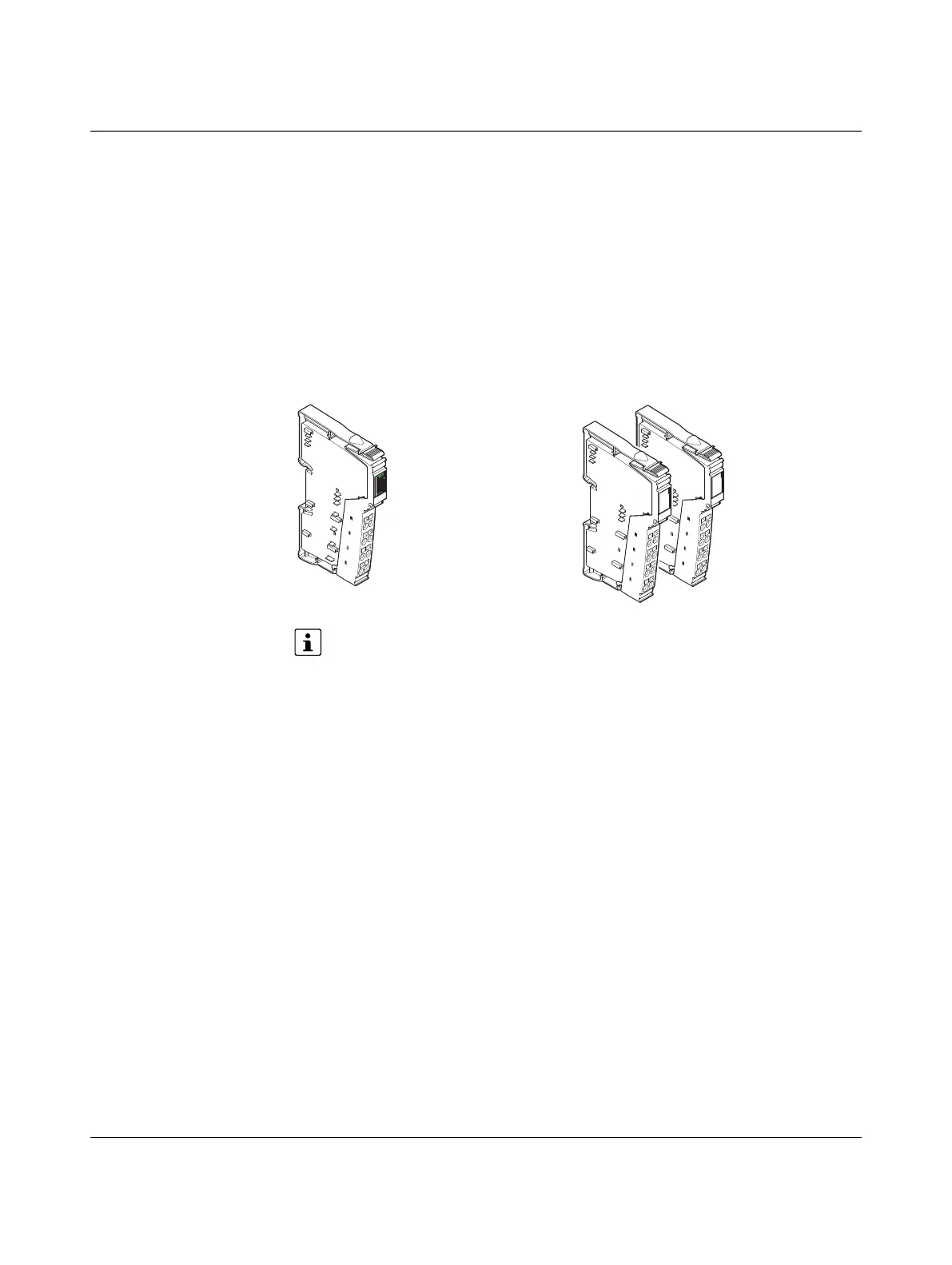

Figure 5-6 Example of a potential dis-

tributor terminal:

IB IL PD 24V-PAC

Figure 5-7 Distance terminal set:

IB IL DOR LV-SET-PAC

P

D

2

4

V

US
