Inline product groups

6452_en_11 Phoenix Contact 25 / 188

5.2 Inline terminals

5.2.1 Versions

5.2.1.1 Extreme conditions version (IB IL ... -XC-PAC)

Thanks to special engineering measures and tests as well as coated PCBs, the XC mod-

ules can be used under extreme ambient conditions.

For use in the extended temperature range from -40°C to +70°C, please observe Section

“Tested successfully: use under extreme ambient conditions”, and the notes in the ter-

minal-specific data sheet.

The function of an XC version is the same as the function of the corresponding standard

version.

Tested successfully: Use under extreme ambient conditions

XC terminals have been tested successfully over 250temperature change cycles in ac-

cordance with IEC61131-2 in the range from -40°C to +70°C.

The following conditions were observed:

– The Inline devices for all connecting cables were connected with a minimum conduc-

tor cross section of 0.5mm²

– The Inline station was assembled on a wall-mounted horizontal DIN rail

– Fans were used to ensure continuous movement of air in the control cabinet

– The Inline station was not exposed to vibration or shock

– The Inline station was operated with a maximum of 24.5V (ensured by using regu-

lated power supply units)

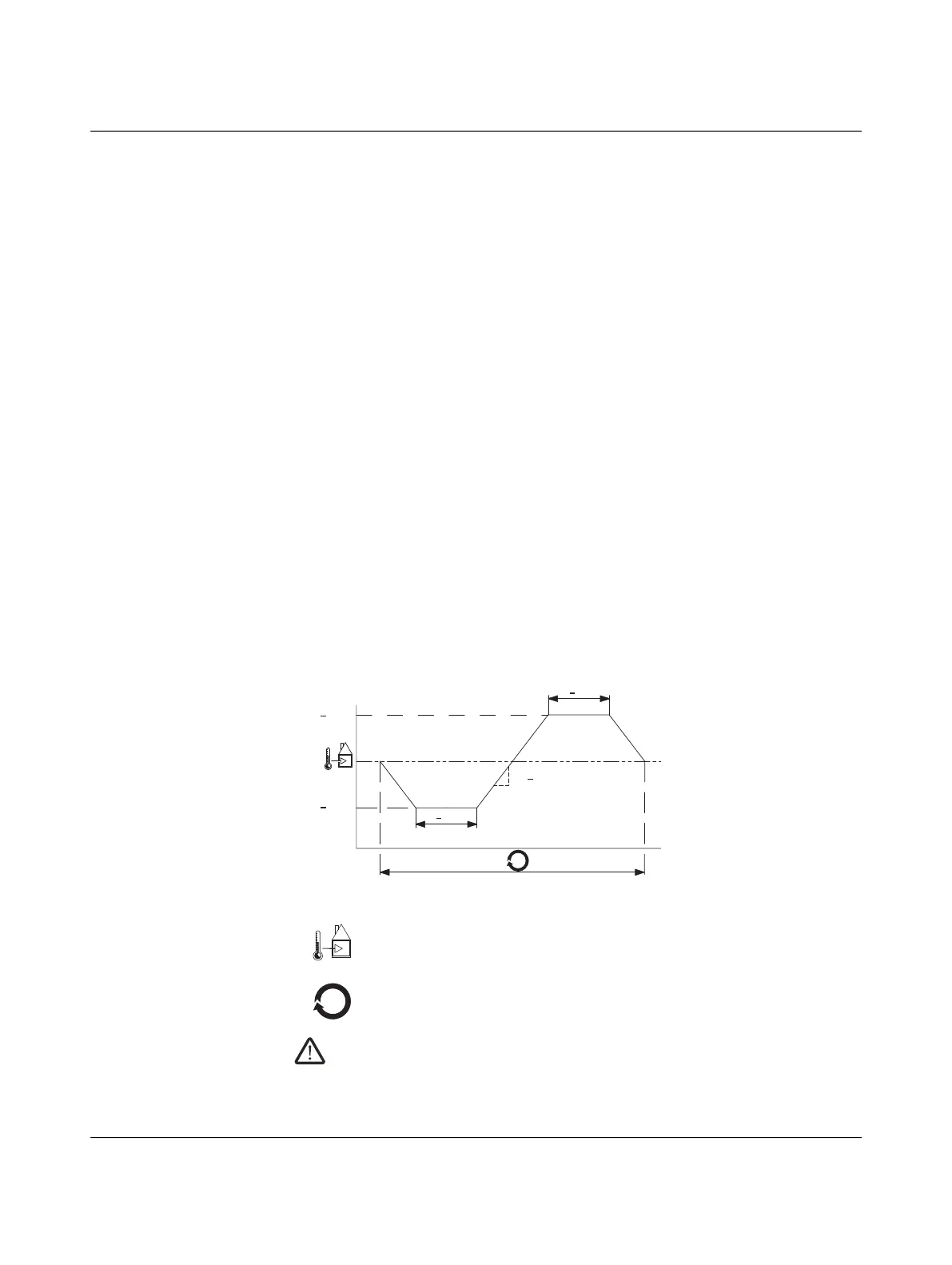

Figure 5-1 Temperature change cycle

WARNING:

The terminal is not approved for use in potentially explosive areas.

The terminal is not approved for use in safety technology.

Temperature in the control

cabinet/ambient temperature

Cycle

1

3 h

+

30 min

3 h

+

30 min

t

1

t

1

(3 0,6) K/min

+

3 K

+

T

min

2 K

+

T

max
