Connect the brake as shown in Figure 12-22:

• If the motor connector is plugged in, remove it. The entire module should be pre-

pared (power-level terminal with brake module) before the I/O is connected.

• Lift up the lower release flap (detail A1).

• Snap the brake module into connection X8 (detail A2). Fasten the brake module by

turning the interlocking screw (1) 90°. This secures the interlocking screw in a

ventilation slot of the power-level terminal.

• Put the lower release flap down again (detail B1).

• Insert the assembled motor circuit connector into connection X10 (detail B2). (See

also Section “Connecting the motor circuit connector” on page 147.)

• Insert the assembled connector for the brake into connection X9 of the brake module

(detail B3).

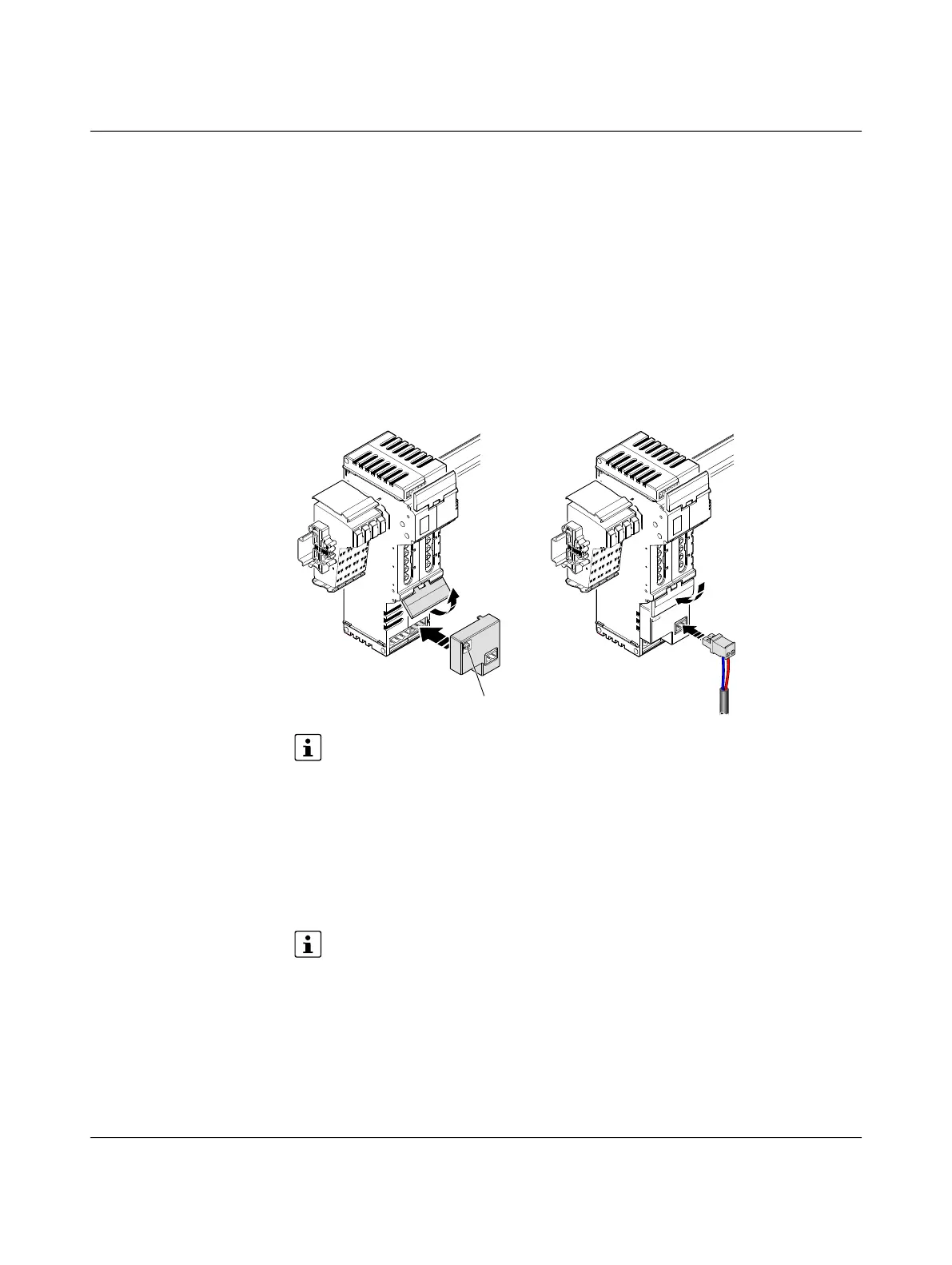

Figure 12-22 Snapping on the brake module and the connector for the brake

For additional information about the brake module, please refer to the module-spe-

cific data sheet.

12.6.4 Connecting the hand-held operator panel

Hand-held operator panel mode (manual mode, IBS HVO/M12, item no. 2837006) is en-

abled via a temporarily connected external hand-held operator panel. This panel is con-

nected to the power-level terminal using a 4-pos. MINI-COMBICON connector. The slot

is under the upper release flap (6 in Figure 12-12 on page 144). The hand-held operator

panel can only be connected when the release flap is upright.

For additional information about hand-held operator panel mode, please refer to

the data sheets for the power-level terminals.

A

A1

A2

B

B1

B3

B2

1
