Connecting cables

6452_en_11 Phoenix Contact 149 / 188

12.6.3 Connecting the brake module and brake (optional)

The brake module can be used to control the brake on motors with a brake. It contains a

passive semiconductor, which can be used for quick motor braking. The brake module is

designed for motors with a nominal voltage of 400 V AC.

Assemble the connector for the brake as shown in Figure 12-21:

• Strip approximately 30 mm off the outer cable sheath (detail A).

• Strip approximately 7 mm off the wires (detail B).

• Fit the wire ends with ferrules and connect the wires to the connector (detail C).

NOTE: Malfunction

Make sure that the brake is connected with the correct polarity, otherwise it may not

operate correctly.

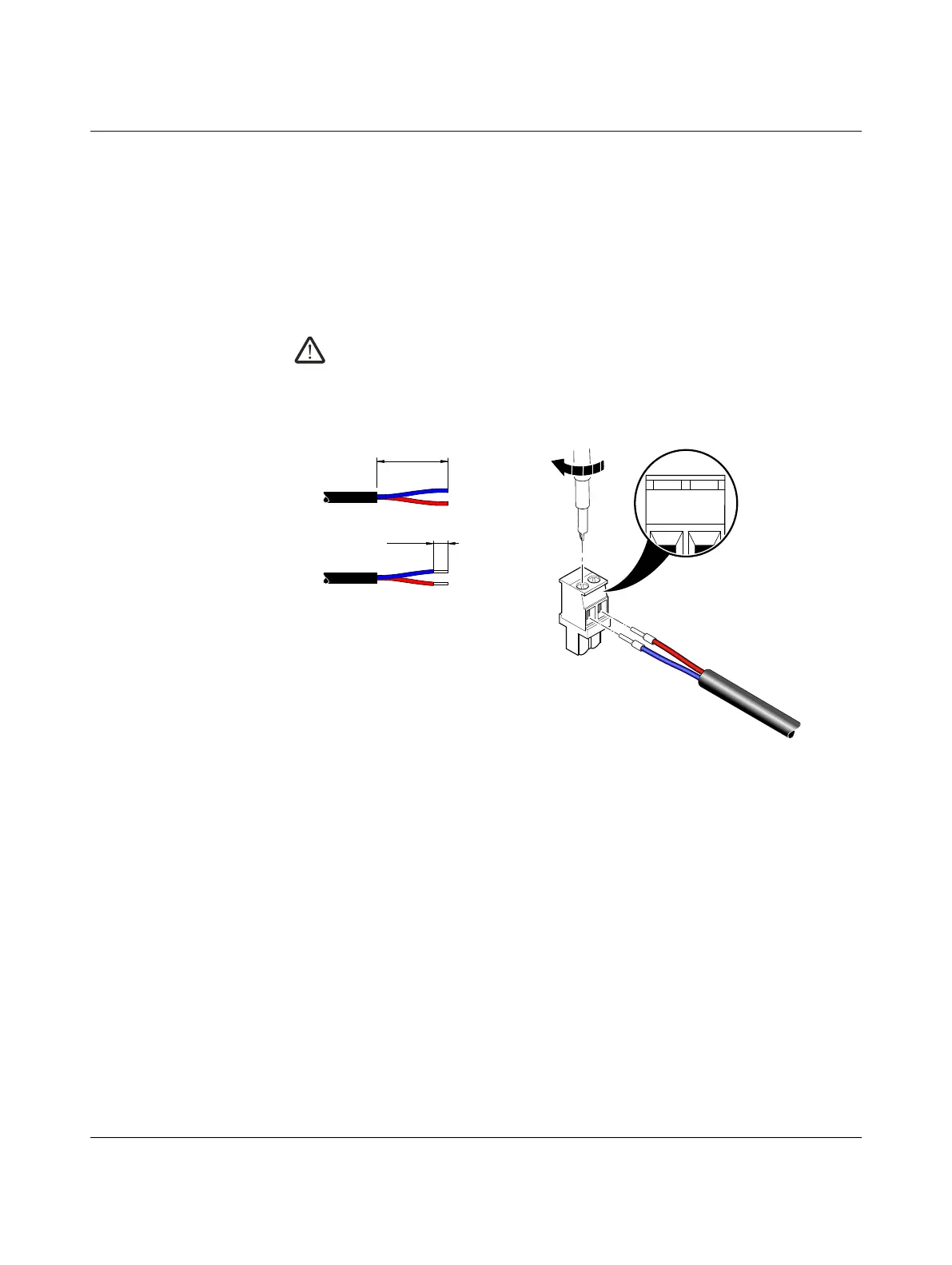

Figure 12-21 Assembling the connector for the brake (dimensions in mm)

The brake module is snapped into connection X8 of a power-level terminal using a 3-pos.

inverted COMBICON connector. The 2-pos. COMBICON connector for the brake is

snapped into connection X9 of the brake module.

ca. 30

ca. 7

1414

1313

O

+

C

B

A

O

14

+

13
