IL SYS INST UM E

128 / 188 Phoenix Contact

6452_en_11

12 Connecting cables

12.1 Connecting cables using Inline connectors

Excluding a few exceptions, the cables for the I/O and supply voltages are connected via

Inline connectors using the spring-cage method. This means that signals up to

250 V AC/DC and 8 A can be connected with a conductor cross-section of 0.08 mm

2

to

1.5 mm

2

.

Please observe the permissible lengths for sensor/actuator cables (see Section

“Cable connection method/cross-section” on page 160 or terminal-specific data

sheet).

Both shielded and unshielded cables are used with Inline terminals or Inline Block IO

modules.

12.1.1 Connecting unshielded cables

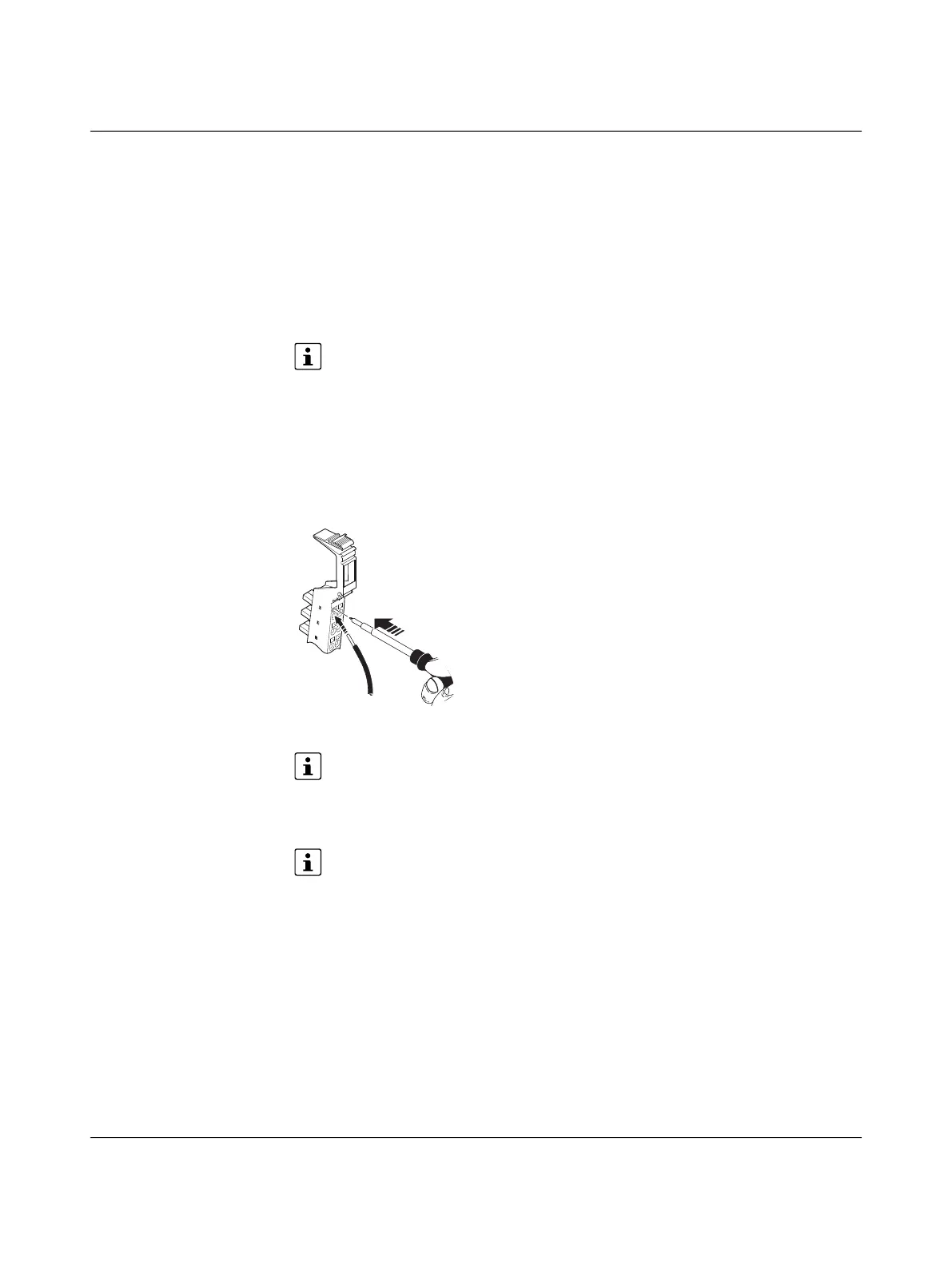

Figure 12-1 Connecting unshielded cables

Wire the connectors according to your application.

For the connector pin assignment, please refer to the corresponding terminal-spe-

cific data sheet.

When wiring, proceed as follows:

• Strip 8 mm off the cable.

Inline wiring is normally done without ferrules. However, it is possible to use

ferrules. If using ferrules, make sure they are properly crimped.

• Push a screwdriver into the slot of the appropriate terminal point (Figure 12-1, detail

1), so that you can insert the wire into the spring opening.

Phoenix Contact recommends using a SZF 1 - 0,6X3,5 screwdriver

(Order No. 1204517).

• Insert the wire (Figure 12-1, detail 2). Remove the screwdriver from the opening.

This clamps the wire.

Following installation, the wires and the terminal points should be labeled (see also Sec-

tion “Function identification” on page 62).

2

1
