Mounting/removing devices

6452_en_11 Phoenix Contact 127 / 188

11.5.3.5 Example of the structure of a main circuit

NOTE:

In the event of high simultaneity of digital outputs and maximum current load, in-

sert a power terminal after the IB IL 24 DO 16-PAC terminal.

If the maximum load of the outputs is 0.2 A, an additional power terminal is not required.

This configuration is in Figure 11-21.

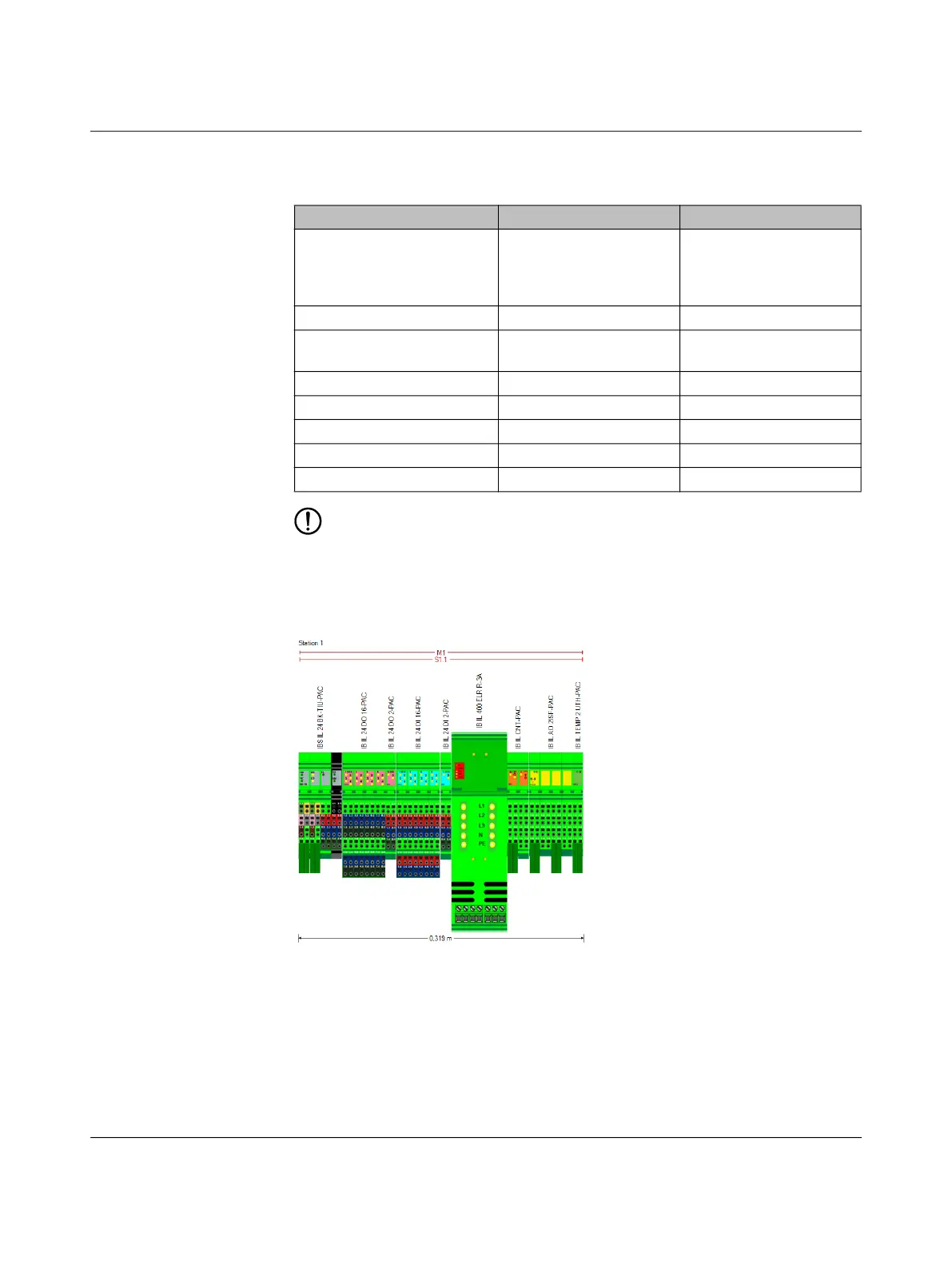

Figure 11-21 Suggested solution

Table 11-2 Example: Structure of a main circuit

Terminal Type Reason for position

1 IB IL 24 DO 16-PAC Digital output terminal DO, current higher than

for 2;

please observe note

below table

2 IB IL 24 DO 2-PAC Digital output terminal DO

3 IB IL 24 DI 16-PAC Digital input terminal DI, current higher than for

4

4 IB IL 24 DI 2-PAC Digital input terminal DI

5 IB IL 400 MLR 1-8A Power-level terminal Any, before analog

6 IB IL CNT-PAC Function terminal

7 IB IL AO 2/SF-PAC Analog output terminal AO

8 IB IL TEMP 2 UTH-PAC Analog input terminal AI, after all others
