2.3 Determining the response time (safety function

response time – SFRT) when coupled by means of

the safe PROFINET gateway

This section provides notes on how to determine the response time/safety function

response time (SFRT) for a safety function that extends over two PROFINET/PROFIsafe

systems which are coupled by means of the safe PROFINET gateway.

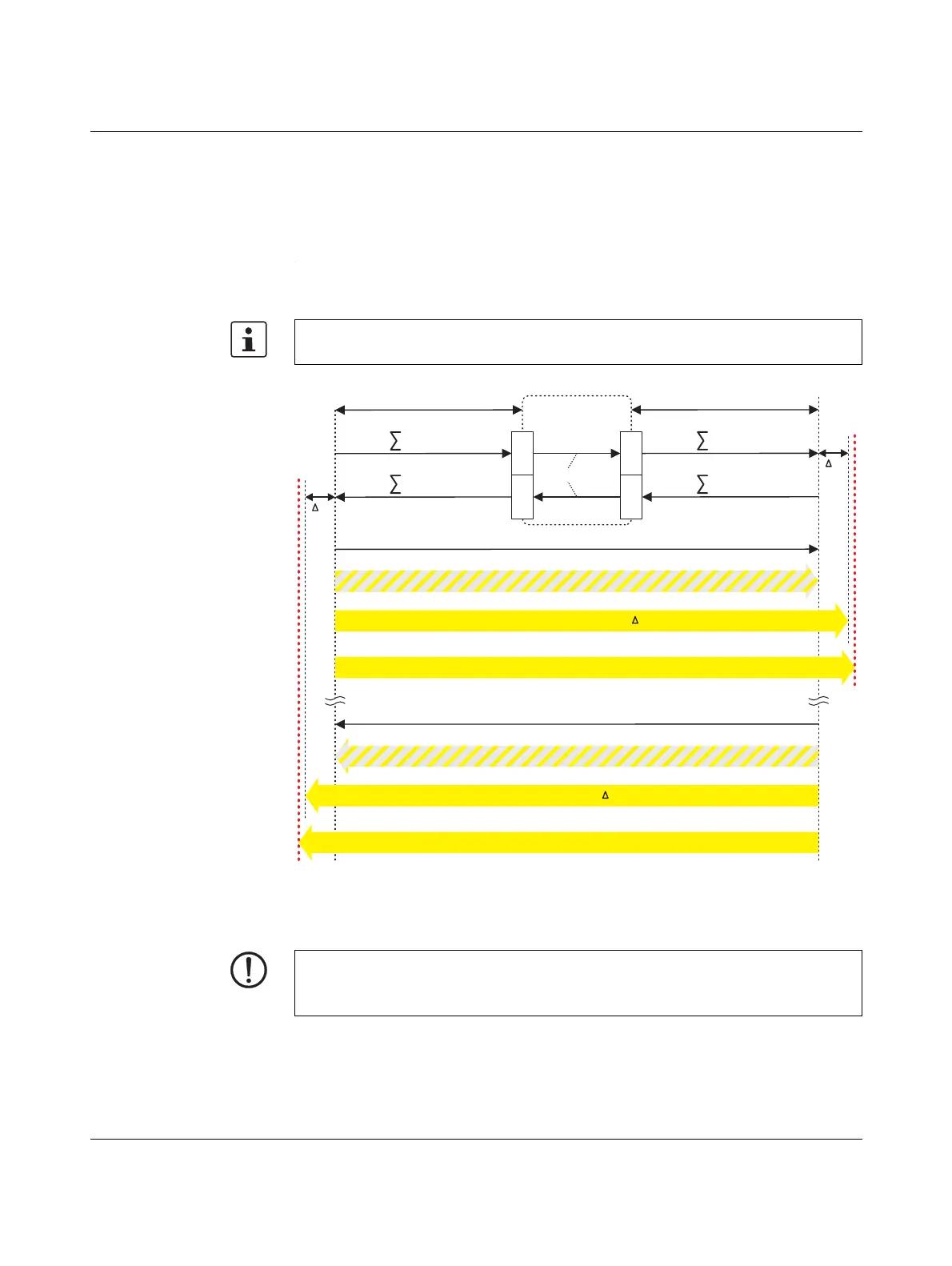

Figure 2-2 Simplified calculation of the SFRT response time

(*) = Not necessarily the last device in the safety chain)

Determine the response times of the individual PROFINET/PROFIsafe systems with the

aid of the specifications in the system-specific user documentation.

OUT

IN

PROFINET system 1

PROFINET system 2

A

8220A003

SF

a

SF

b

WCDT

copy

WCDT

1a

WCDT

1b

WCDT

2a

WCDT

2b

Total Worst Case Delay Time = TWCDT

a

t

a

t

b

Safety Function Response Time SFRT (TWCDT + of the longest “Watchdog Time” *) )t

aaa

Maximum Safety Function Response Time (determined via Safety Function)SFRT

a_max

Total Worst Case Delay Time = TWCDT

b

Safety Function Response Time SFRT (TWCDT + of the longest “Watchdog Time” *) )t

bb

b

Maximum Safety Function Response Time (determined via Safety Function)SFRT

b_max

The following must therefore be true for Figure 2-2:

– Safety function SF

a

(→): SFRT

a

≤ SFRT

a_max

– Safety function SF

b

(←): SFRT

b

≤ SFRT

b_max
