Configuration

111433_en_00 Phoenix Contact 25 / 78

4.1.1.2 Measurements

This page provides an overview of all collected measurements.

Each measurement window has buttons with the functions described below. The se-

lected option is highlighted in turquoise.

4.1.2 Unlocking the web server

To make settings on the device, you must first unlock the web server. To do this, proceed

as follows:

• To do so, click on the green lock.

• Enter the initial password “adm1n” in the input field that appears and press ENTER.

The icon changes to an open red lock (see Figure 4-3).

The device is now unlocked and you can make settings.

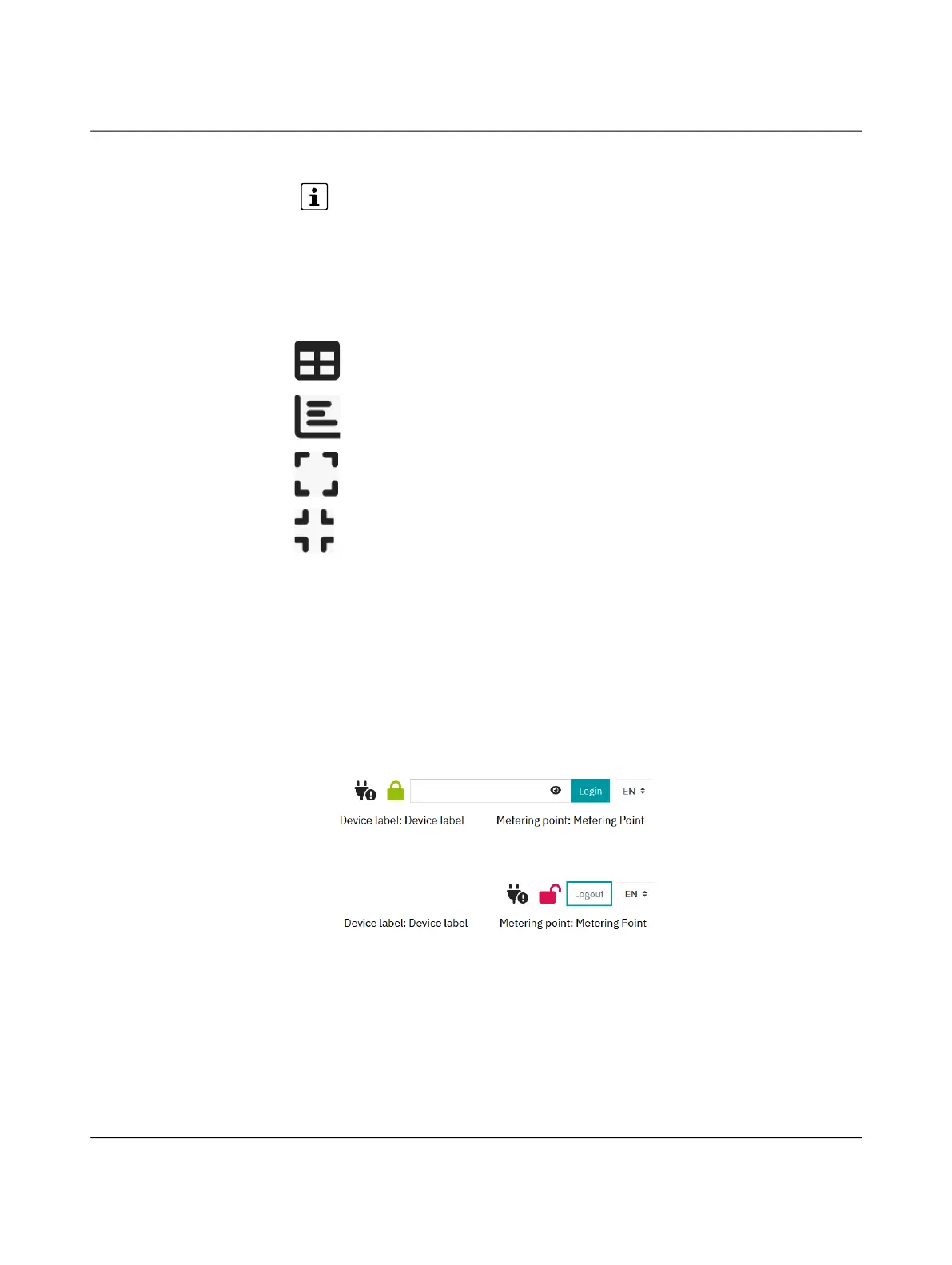

Figure 4-2 Input field for the initial password

Figure 4-3 Lock icon when web server is unlocked

For the measured values to be output, you must supply the device with power

via the connection terminal blocks. Only connect one “+24 V” connection ter-

minal block (2.1 or 2.2) and one “GND 1” connection terminal block (2.3 or 2.4).

See Section 3.4, “Connection assignment”.

Displays the measurements in the

form of a list.

Displays the measurements in the

form of a graph.

Extends the measurement window to

the maximum width.

Returns the extended measurement

window to the default size.
