Wiring
109908_en_02 Phoenix Contact 29 / 150
5 Wiring
5.1 Power-level terminals
The power cables and motor cables must be sized as required by local standards and by
the local currents that will be involved.

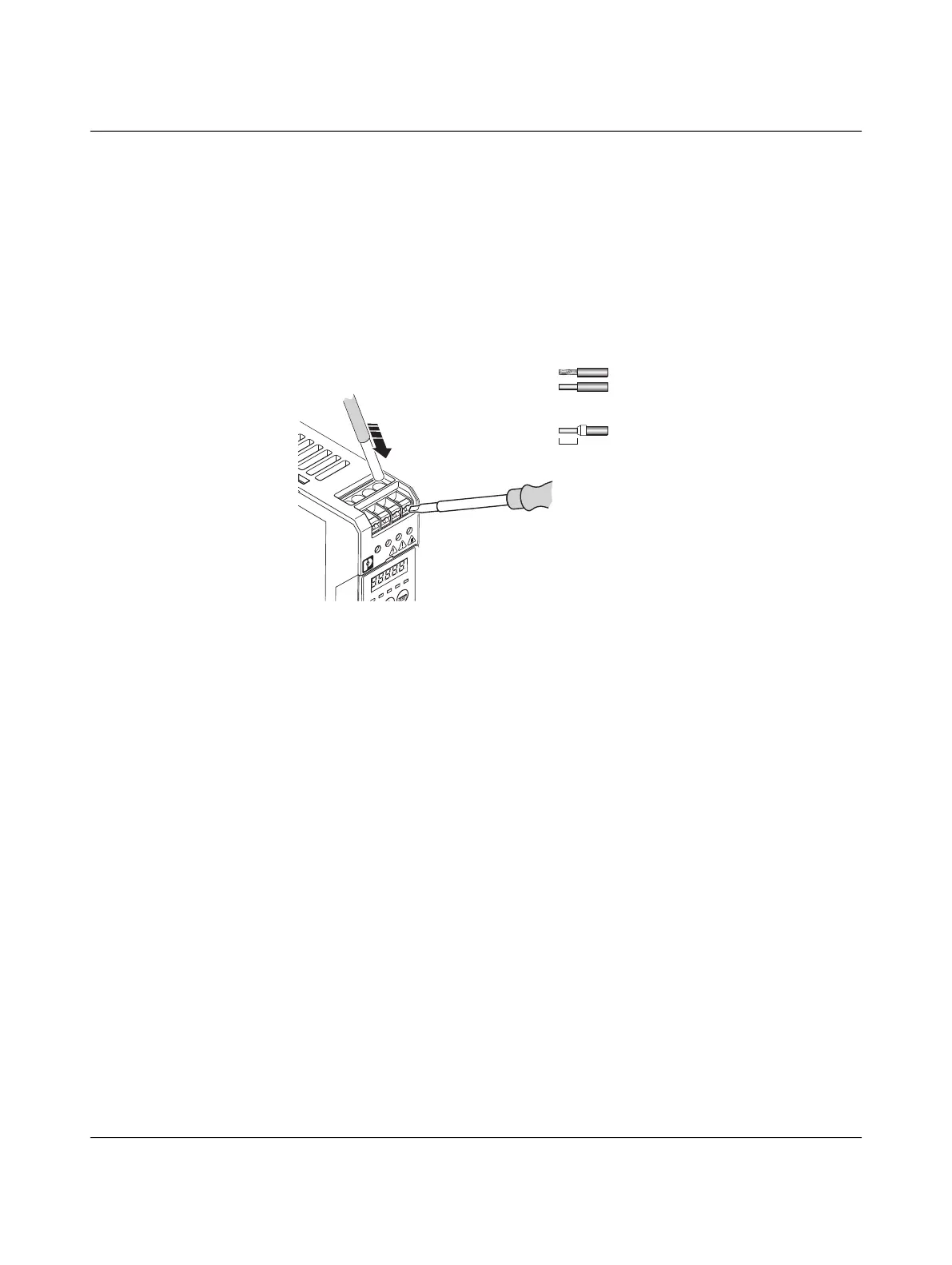

Figure 5-1 Power-level terminals
1. Insert rigid or flexible conductors with ferrules directly in the clamping space (A).
2. Reliable contact can be made with flexible conductors without ferrules by opening
the spring beforehand using the pushbutton (B).
3. Press the pushbutton (B) also to release the conductor.
S
E
T
L
L/L1
N/L2 PE PE
DA
N
G
E
R
3 M
in
Rs
A
Hz
B
A
10 mm
AWG 4 102-
0, - mm24
2
0, - mm26
2
AWG 4 22-1
