Installation

109484_en_01 PHOENIX CONTACT 55 / 94

5.9 DC connection

Please note:

– Make sure that polarity of the DC connections is correct.

– The system does not provide an internal disconnect device for the DC output.

– A disconnect element has to be installed between the consumer and the system.

– The disconnect element for external consumers (vehicle battery) has to be designed for

all positions.

– Select the cross section of the DC cable so that line losses are as low as possible (max-

imum possible cross section at minimum cable length).

– For correct dimensioning of fuses and cable cross-sections for the DC connection

(charging point), observe the tables described in this section.

5.9.1 DC output

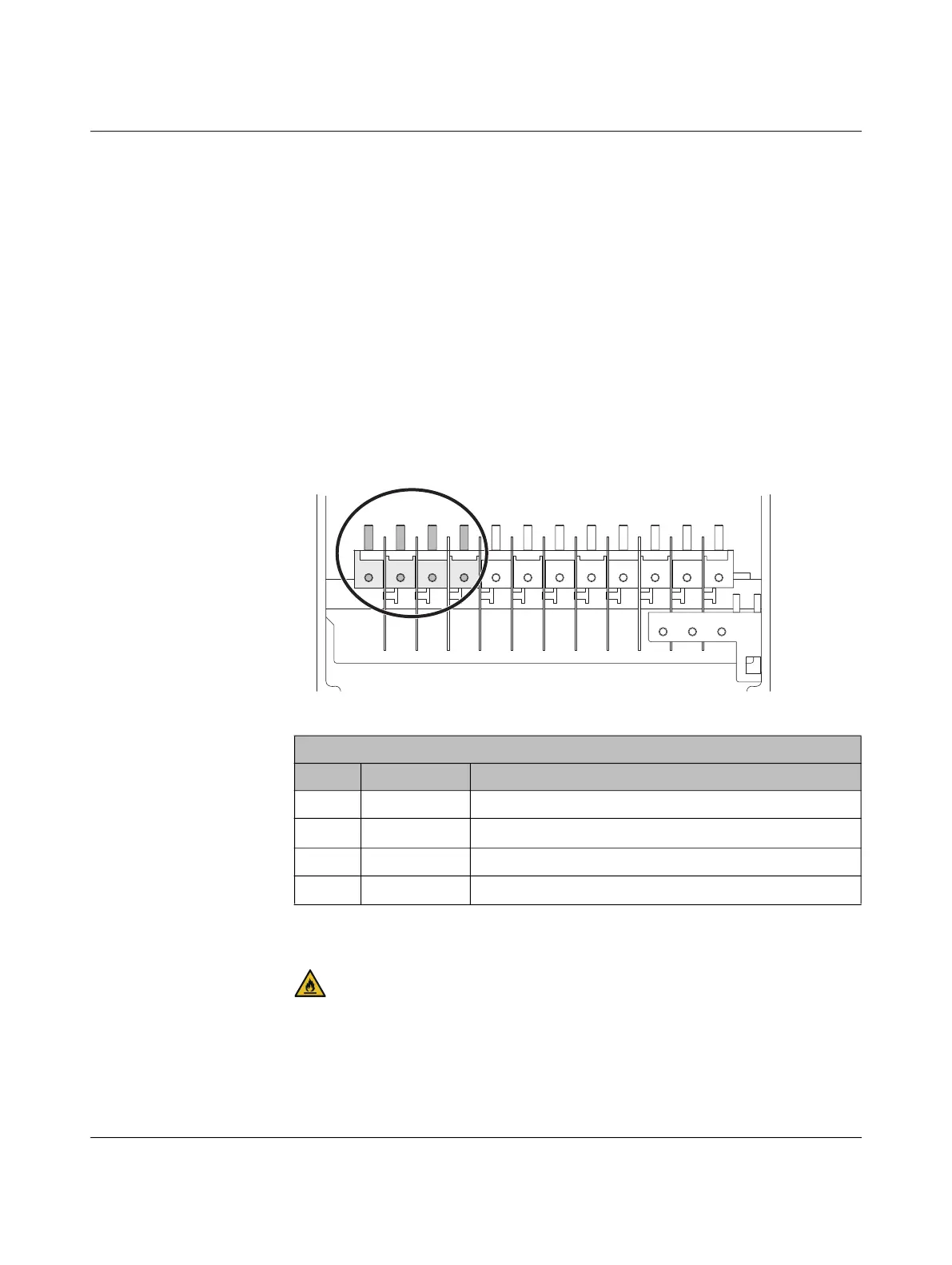

Figure 5-6 DC output area in the X1/X001 connection panel

5.9.2 Recommended DC cable cross-sections

WARNING: Risk of fire from wrong cross section

The following table only provides an overview of the current carrying capacity for in-

stallation type C/30°C. The actual cross sections and fuses have to be selected with

regard to ambient temperature, number of cables and cable lengths, and according to

local regulations.

Table 5-8 Designation of DC bars in the X1/X001 connection panel

DC output OUT

Item Designation Designation

1 DC1- DC output 1-

2 DC2- DC output 2-

3 DC1+ DC output 1+

4 DC2+ DC output 2+

DC1- DC2- DC1+ DC2+ L1.1 L1.2 L2.1 L2.2 L3.1 L3.2 MP1 MP2
