Installation
109484_en_01 PHOENIX CONTACT 47 / 94
Connection with cable lug
The AC connection bolts have a diameter of 10 mm.

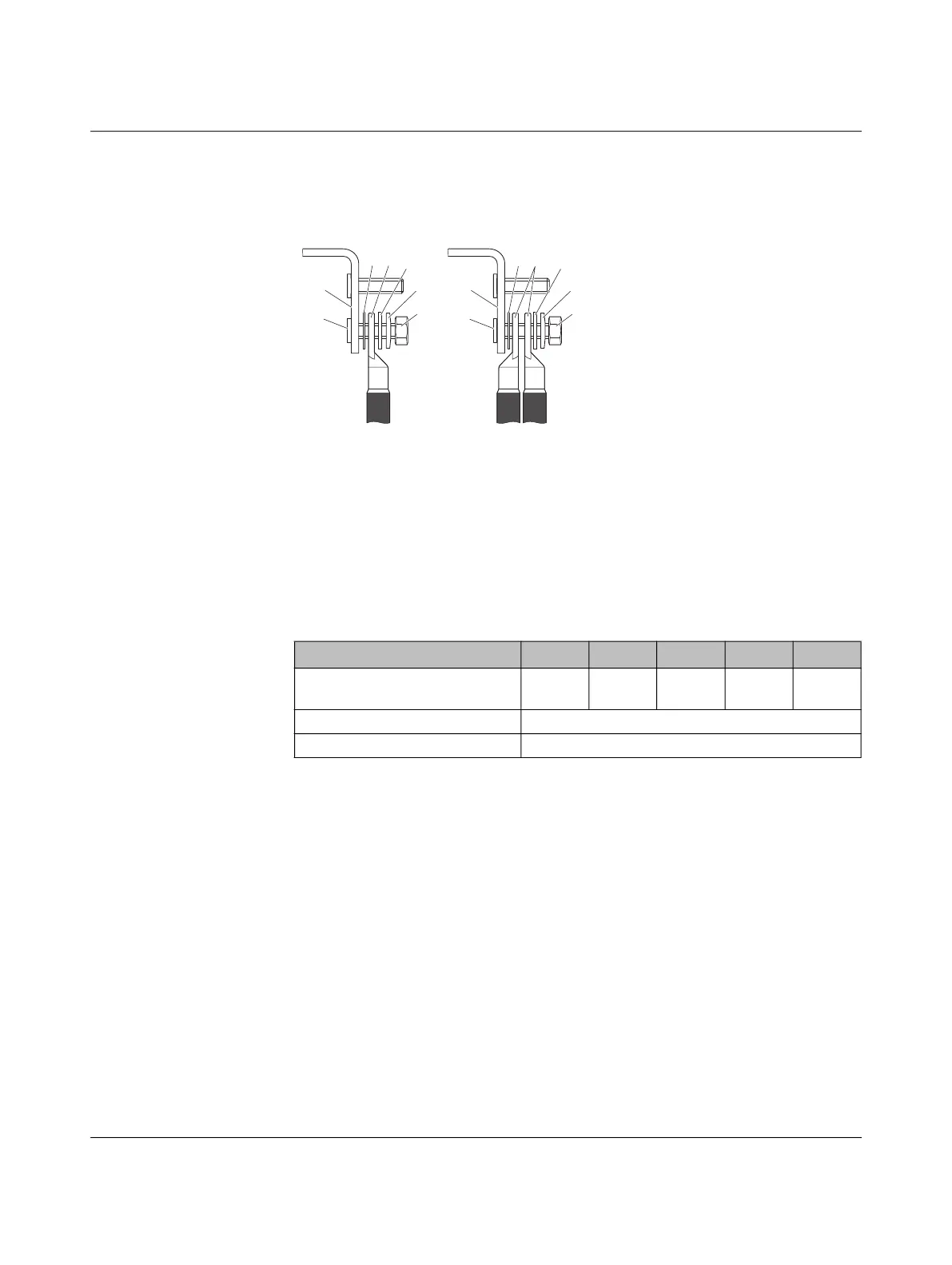

Figure 5-1 Cable lug connection
1 M10 terminal point, connecting bolt
2 Copper rail
3 Cupal disk, when using aluminum cable lugs
4 Cable lug
5 Washer
6 Spring washer
7 M10 - nut
Table 5-2 Torques
Thread M5 M6 M8 M10 M12
Connection of ring cable lug to Cu
busbar
4.3 Nm 7.3 Nm 17.8 Nm 35.4 Nm 62.1 Nm
Strength category 8.8
Screw system Hexagonal
1
2
34
5
6
7
1
2
34
5
6
7
