Mounting
109484_en_01 PHOENIX CONTACT 37 / 94
4.2.1 Space requirements
WARNING: Risk of crushing from incorrect setup and lack of space
Position the system in such a way that safe mounting, installation, operation, mainte-
nance and dismantling are possible when the system is used properly.
The system must be easily accessible from the front.
Ensure that there is sufficient space available in front of the system control cabinet for
startup and maintenance.
NOTE: Reduced performance due to trapped heat
If the specified minimum distances are not adhered to, the system power might be lim-
ited due to lack of ventilation and the connected heat development.

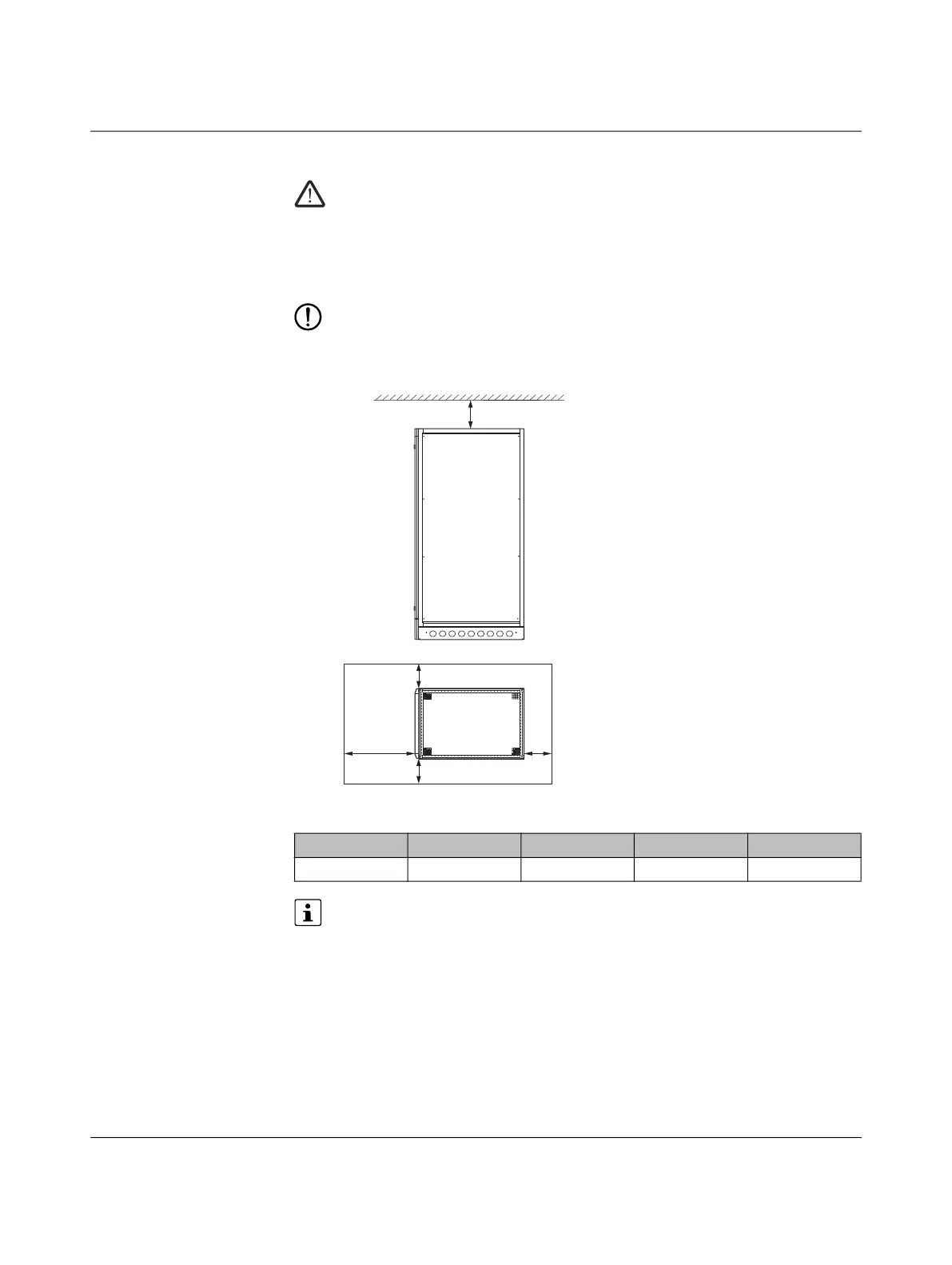

Figure 4-1 Minimum distances
If necessary, provide larger minimum distances for maintenance work.
Table 4-1 Minimum distances
A B C D E
≥600 mm ≥0 mm ≥0 mm ≥0 mm ≥600 mm
E
A C
DB
