Safety notes

109484_en_01 PHOENIX CONTACT 17 / 94

DC power module rating

plate

The DC power module rating plate is attached to the top of the DC power modules.

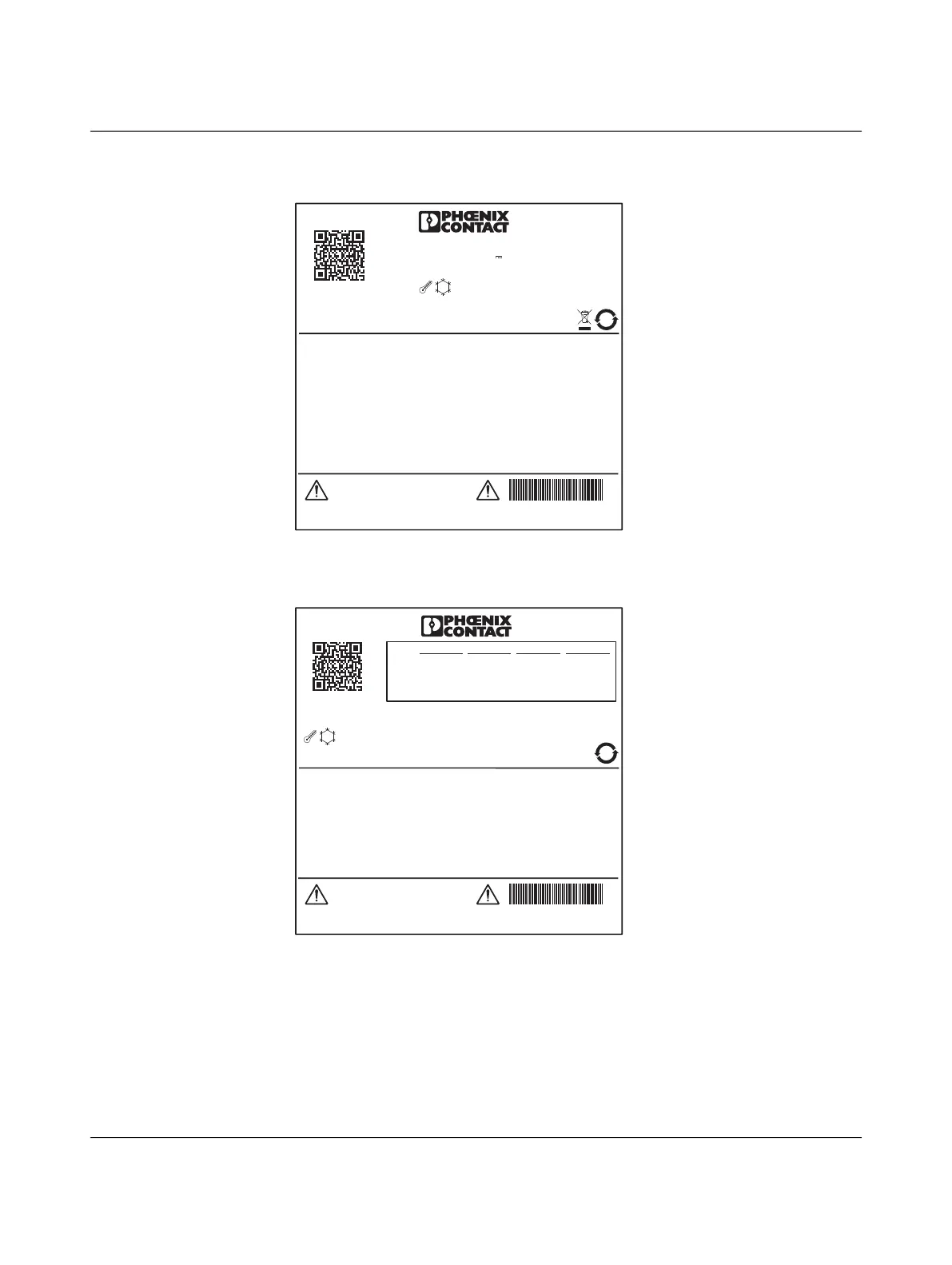

Figure 1-3 DC power module rating plate (example)

System rating plate The system rating plate is attached to the inside of the cabinet door.

Figure 1-4 System rating plate (example)

Phoenix Contact GmbH & Co. K G

Flachsmarktstr. 8

32825 Blomberg, Germany

Input: 3x:400V~ / 50Hz / 3x 132A

max.

-10...+50°C / 14...+122°F (>+40°C/+104°F Derating)

-15°C / 5°F Startup (type tested)

-25

C HARX PS/3AC/920DC/87.5KW

Order No. 1162690

c

ELECTRIC VEHICLE

POWER SUPPLY

(EV-PS)

E N 61851-1

E N 61851-23

E N 61851-21-2

Class A

Documentation

www.phoenixcontact.com

Read manual before connecting to mains

Lire manuel avant de raccorder au réseau

WARNING – DO NOT SEPARATE WHEN ENERGIZED

AVERTISSEMENT – NE PAS DÉBRANCHER SOUS TENSION

Sno.: 1162690 V C Y Y WW K1234

V/C: pp Date: Y Y MM

10219502.xx

25

Output:Output: 200 - 920V / 125Amax. / 87.5kW

Phoenix Contact GmbH & Co. K G

Flachsmarktstr. 8

32825 Blomberg, Germany

-10...+50°C / 14...+122°F (>+40°C/+104°F Derating)

-15°C / 5°F Startup (type tested)

-25

CHARX PS-CAB/4X87.5KW

Order No. 1165442

c

IP 20

Cabinet for (2 x 2 x CHARX PS/3AC/920DC/87.5KW)

EN 61851-1

EN 61851-23

EN 61851-21-2

Class A

Documentation

www.phoenixcontact.com

Read manual before connecting to mains

Lire manuel avant de raccorder au réseau

WARNING – DO NOT SEPARATE WHEN ENERGIZED

AVERTISSEMENT – NE PAS DÉBRANCHER SOUS TENSION

Sno.: 1165442VCYY W W K1234

V/C: pp Date: Y YMM

10221763.xx

25

Art/Kind

Hz

V

A

kW

3W/M P/PE

50

400

262

Input 1 / R E C 1

3W/M P/PE

50

400

262

Input 2 / R E C 2

Output 1 / D C 1

2W 

--

875 (200...920)

200 (250)

175

Output 2 / D C 2

2W 

--

875 (200...920)

200 (250)

175
