AXL F CNT2 1H

12 / 60 Phoenix Contact

109925_en_04

3.2 Local diagnostic and status indicators

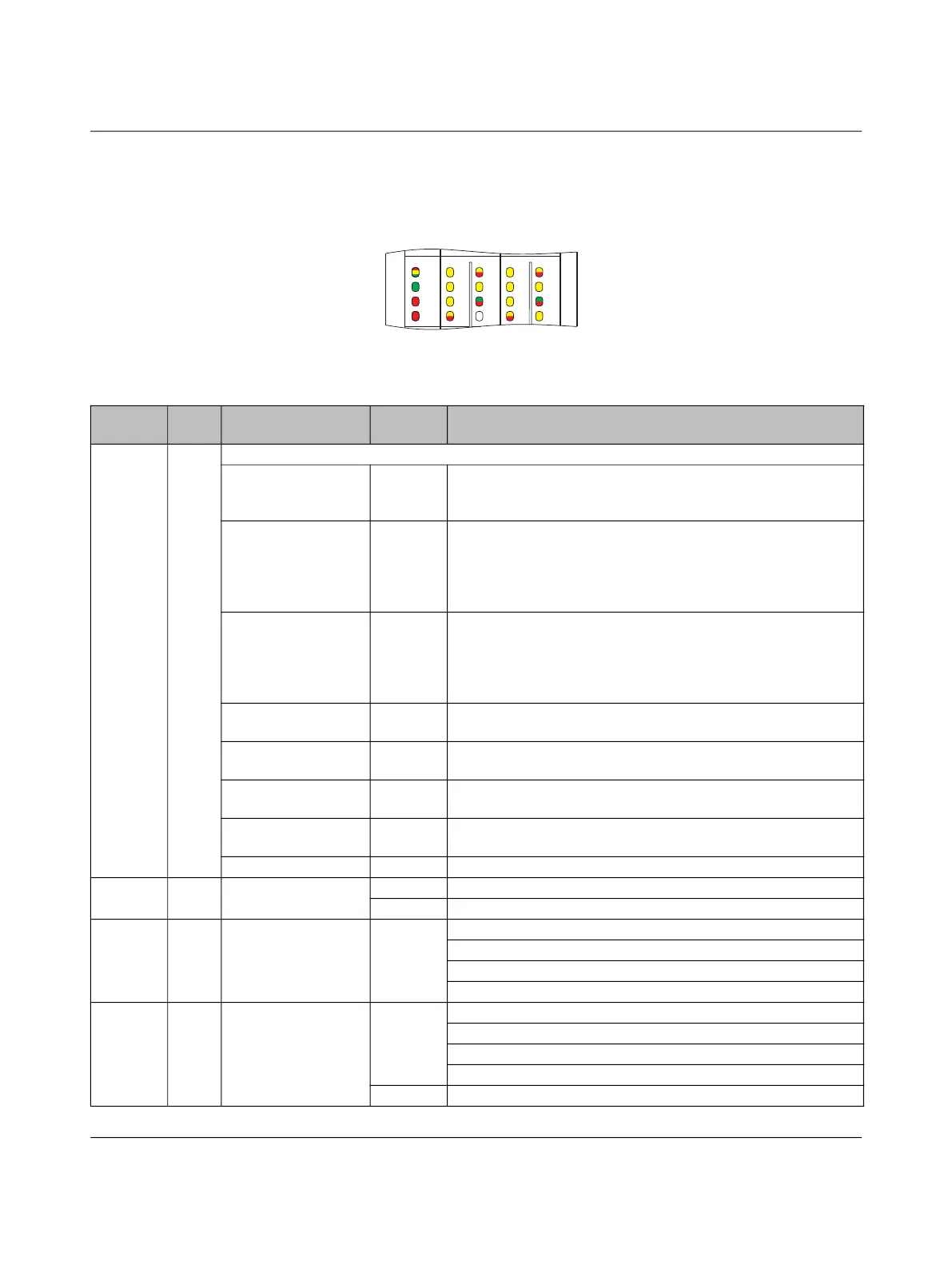

Figure 3-2 Local diagnostic and status indicators

UIO

30 3231 33

20 2221 23

10 1211 13

00 0201 03

Table 3-2 Local diagnostic and status indicators

Designa-

tion

Color Meaning State Description

D Red/y

el-

low/gr

een

Diagnostics of local bus communication

Run Green on The device is ready for operation, communication within the sta-

tion is OK.

All data is valid. An error has not occurred.

Active Flashing

green

The device is ready to operate, communication within the station

is OK.

The data is not valid. The controller or higher-level network is

not delivering valid data.

There is no error on the module.

Device application

not active

Flashing

green/yell

The device is ready for operation, communication within the sta-

tion is OK.

Output data cannot be outputted and/or input data cannot be

read.

There is a fault on the periphery side of the module.

Ready Yellow on The device is ready for operation but did not detect a valid cycle

after power-up.

Connected Flashing

yellow

The device is not (yet) part of the active configuration.

Reset Red on The device is ready for operation but has lost the connection to

the bus head.

Not connected Red

flashing

The device is ready for operation but there is no connection to

the previously existing device.

Power down Off Device is in (power) reset.

UIO Green U

input/output

On Supply voltage is present.

Off Supply voltage is not present.

E1 Red I/O error On I/O error present.

Possible causes:

Short circuit/overload of the sensor supply.

Supply voltage faulty (U

)

E2 Red Channel error On Channel error present.

Possible causes:

Short circuit/overload of the sensor supply.

Short circuit/overload at one or more outputs

Off No I/O error.
