UM EN AXL F SYS DIAG
6 / 38 Phoenix Contact
8663_en_08
2.1.1 D and E indicators on controllers and bus couplers

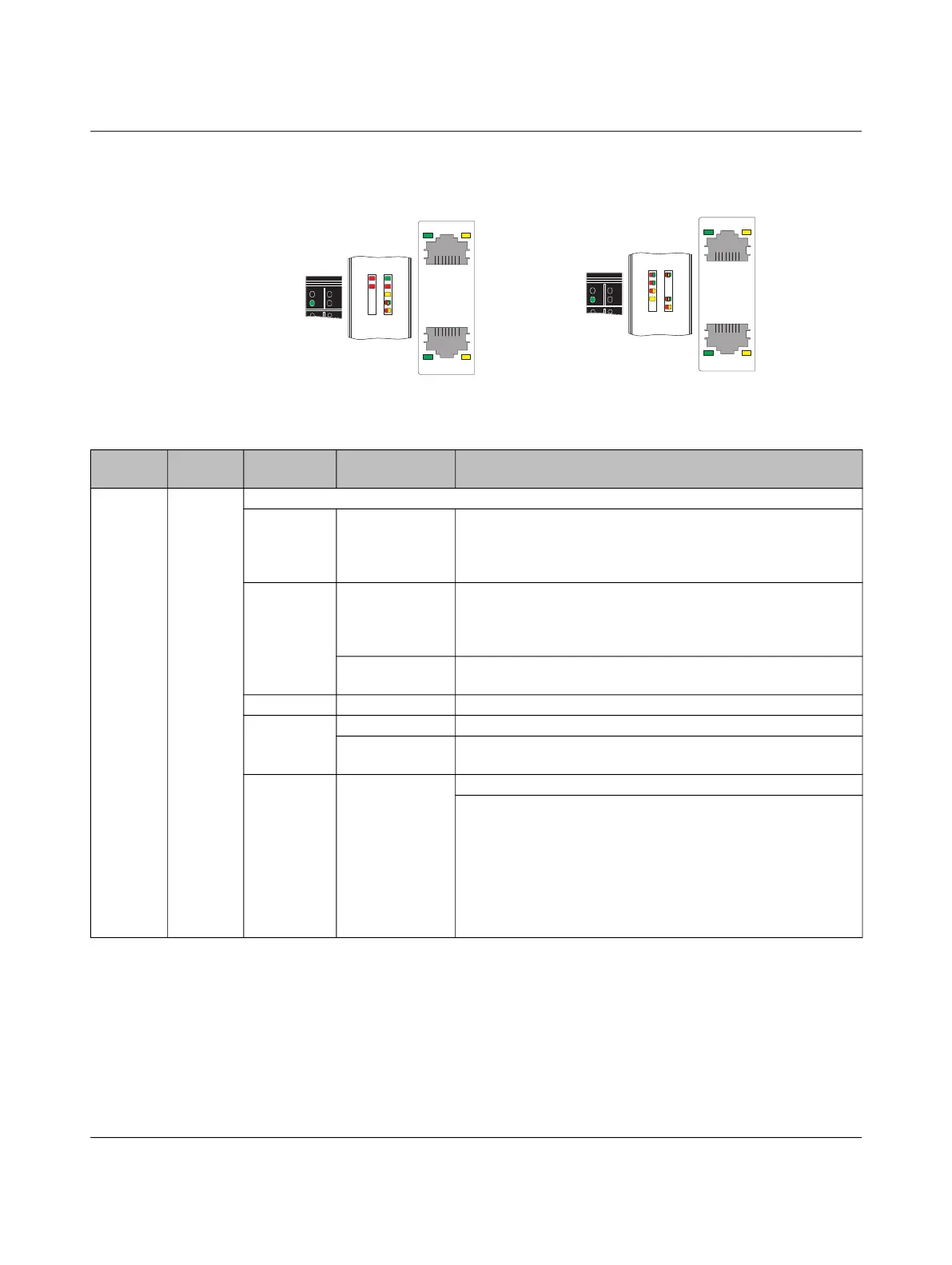

Figure 2-1 Indicators on controllers and bus couplers
Example: AXC 1050 Example: AXL F BK EIP
LNK ACT
LNK ACT
UL
BF
SF
RUN
D
E
FAIL
DBG
LNK ACT
LNK ACT
UL
NET
MOD
CO
RDY
D
E
PP
Table 2-1 D and E indicators on controllers and bus couplers
Designa-
tion
Color Meaning State Description
D Red/
yellow/
green
Diagnostics for local bus communication
Run Green on The station is ready to operate.
The communication within the station is OK.
The controller is providing valid data.
An error has not occurred
Active Flashing green The station is ready to operate.
The communication within the station is OK.
The controller is not providing valid data.
There is no malfunction on the module.
Flashing
green/red
A residual system is operated, at least one device in the config-
uration is not reachable.
Ready Yellow on The station is ready to operate. No data is being exchanged.
Active +
Force
Flashing yellow Access from Startup+ in I/O check mode
Flashing
yellow/red
Local bus error during active I/O check (with connected
Startup+)
Ready +
Bus error
Flashing red Local bus error during startup
Possible causes:
– Configuration cannot be generated, information is missing
from a device
– Chip version of a device is <V1.1
– The desired and actual configuration are different
– No local bus device connected
– Maximum number of local bus devices exceeded
