PC Worx or Config+
107801_en_00 PHOENIX CONTACT 9 / 68
3.1 Required settings
This section uses the AXC 1050 as an example for describing the settings in PC Worx that
are necessary for the IEC 61850 communication of a Phoenix Contact IED.
3.1.1 Specifying designation for IEC 61850 variable group
• Open the Bus Configuration workspace.
• In the “Bus Structure” window, select the “IED”.
• If necessary, enter a designation for the group of IEC 61850 variables in the “Device De-
tails” window, or use the preset designation.

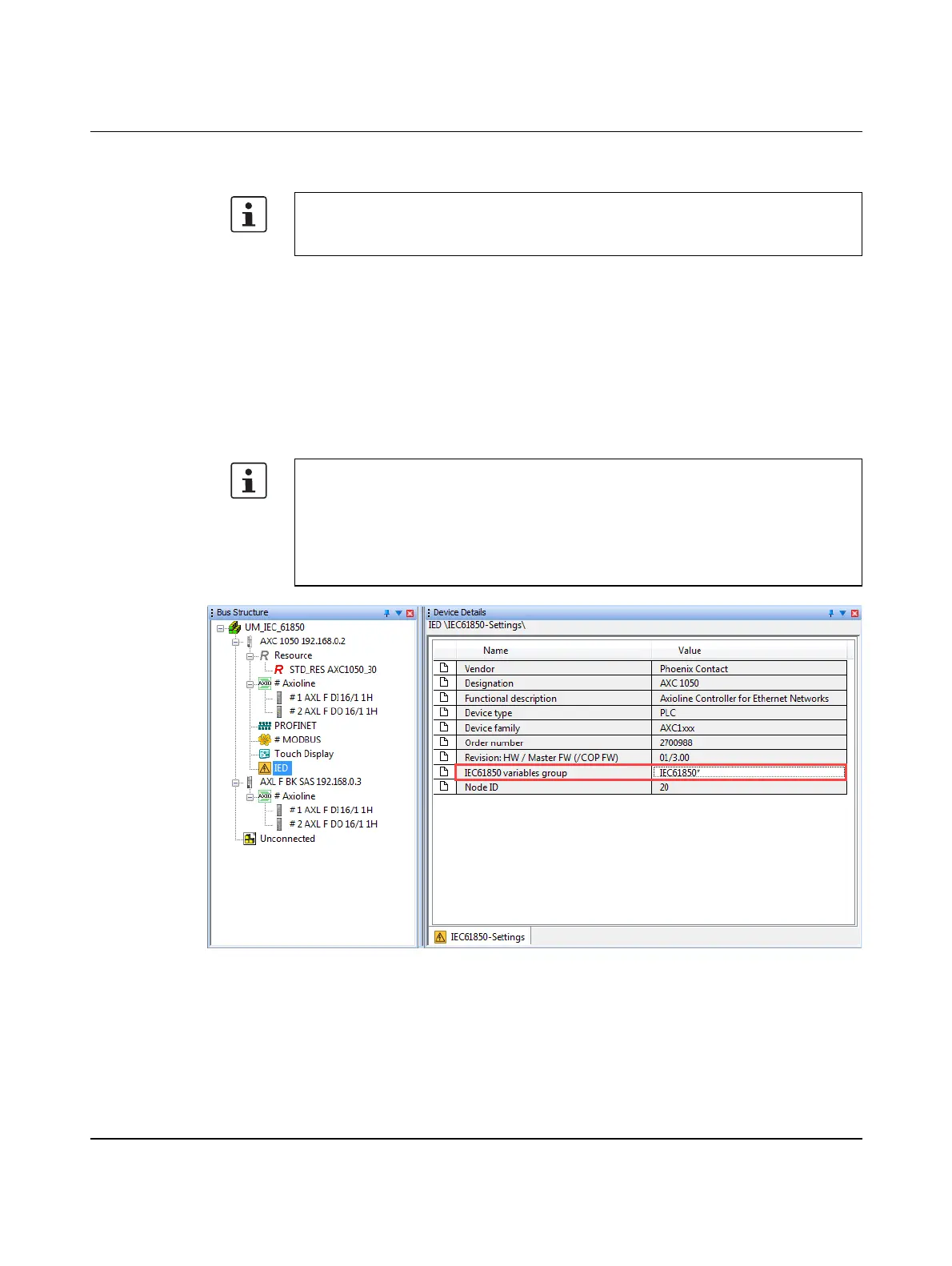

Figure 3-1 Defining designation for the IEC 61850 variable group
If you use one or several AXL F BK SAS bus couplers, but no AXC 1050 (XC) controller,
only Section 3.1.8 is relevant to you. In this case, skip Section 3.1.1 ... 3.1.7 and
Section 3.2.
If you want to create several IEC 61850 variable groups, using a wildcard is recommend-
ed.
• Add the wildcard * at the end of the group designation (see example in Figure 3-1).
As designation for the individual variable groups, you respectively use the text that comes
before the wildcard * and then replace the wildcard * with a text of your choice for each
variable group (see example in Figure 3-3).
