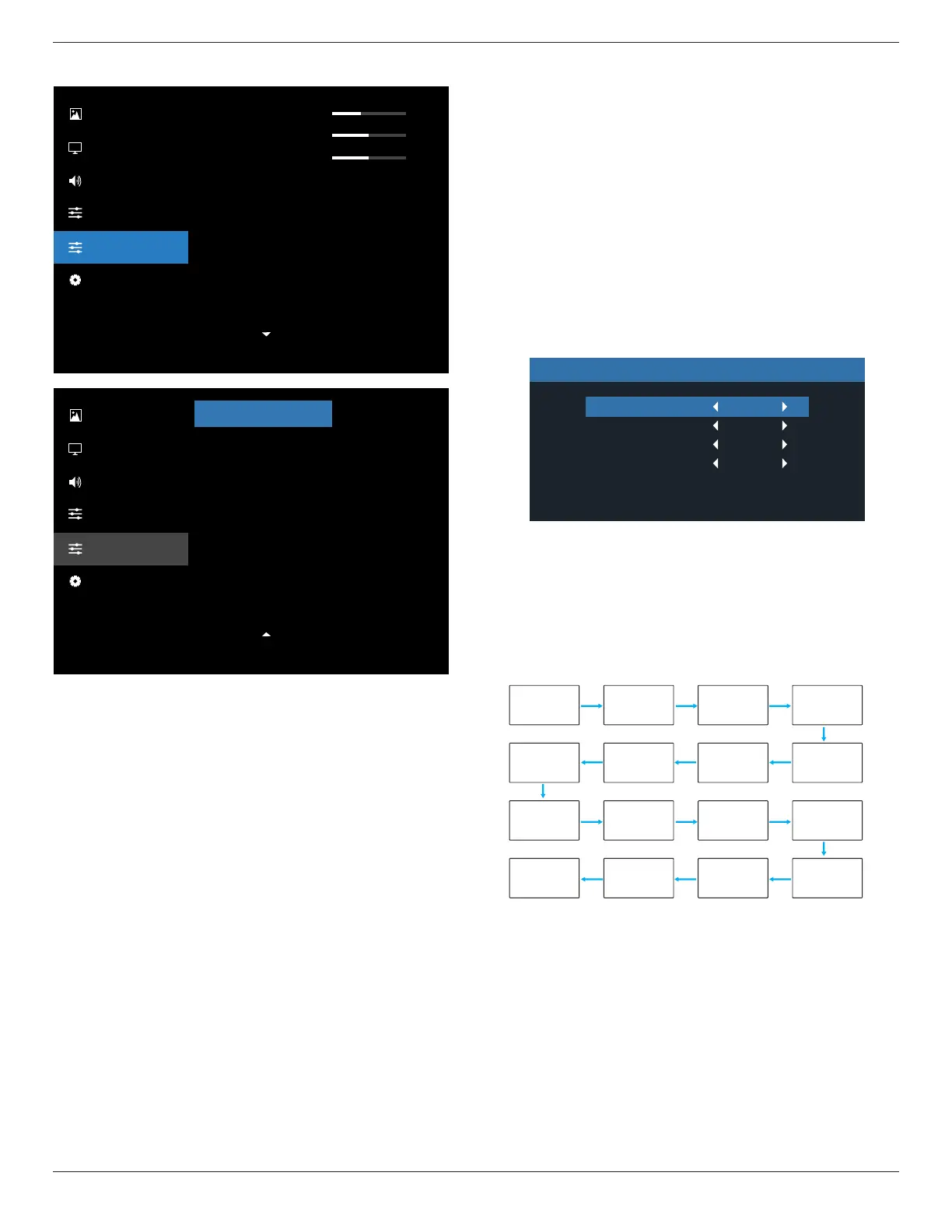

8.2.5. Configuration2 menu

O

10 Sec.

Action

DP 1.1

OSD turn off

OSD H position

OSD V position

OSD transparency

Information OSD

Logo

Monitor ID

Heat status

Monitor information

DP version

HDMI1.4

Action

English

Action

HDMI EDID

Rotation

Language

Configuration2 reset


Screen

Audio

Configuration 1

Configuration 2

Advanced Option


Screen

Audio

Configuration 1

Configuration 2

Advanced Option

OSD turn o

Set the period of time the OSD (on-screen display) menu

stays on the screen.

The options are: {5 ~ 120} seconds.

OSD H-position

Adjust the horizontal position of OSD menu.

OSD V-position

Adjust the vertical position of OSD menu.

OSD Transparency

Adjust OSD transparency.

• {O} - Transparency o.

• 20/40/60/80/100.

Information OSD

Set the period of time the information OSD display on the

screen. The options are {O, 1-60} seconds.

Logo

Choose to enable or disable the picture of Logo when

turning on your display.

The options are:

• {O}

• {On}

• {User}

NOTE: If it is set to {USER}, the rotation function is not

supported for user logo.

Monitor ID

Set ID number for controlling the display via the RS232C

connection. Each display must have a unique ID number

when multiple sets of display are connected. Monitor ID

number range is between 1 to 255.

The option are: {Monitor group} / {Tiling matrix} / {Auto ID}

Monitor ID

Monitor group

Tiling matrix

Auto ID

End

• {Monitor group}

The options are: {1-255}. The default setting is 1.

• {Tiling matrix}

Tiling matrix number range is between 1 to 15. 1 is the

default setting. The {Auto ID} setup function enables

setting up {Monitor ID} of connected machine according

to {Tiling matrix} settings.

Example: Tiling matrix sets to 4

1 2

5 6

7 8

9 10 11 12

13 14 15 16

• {Auto ID}

The option are: {Start} / {End}. The default setting is {End}.

• Switch to Start to set up the IDs of machines

backward from current one.

• Once the setup is completed, the option exits from

End automatically.

• To use this function, serially connect all machines

with RS-232 cable and set their Control ports to RS-

232 too.

Heat status

This function allows you to check the thermal status of

display at any time.
