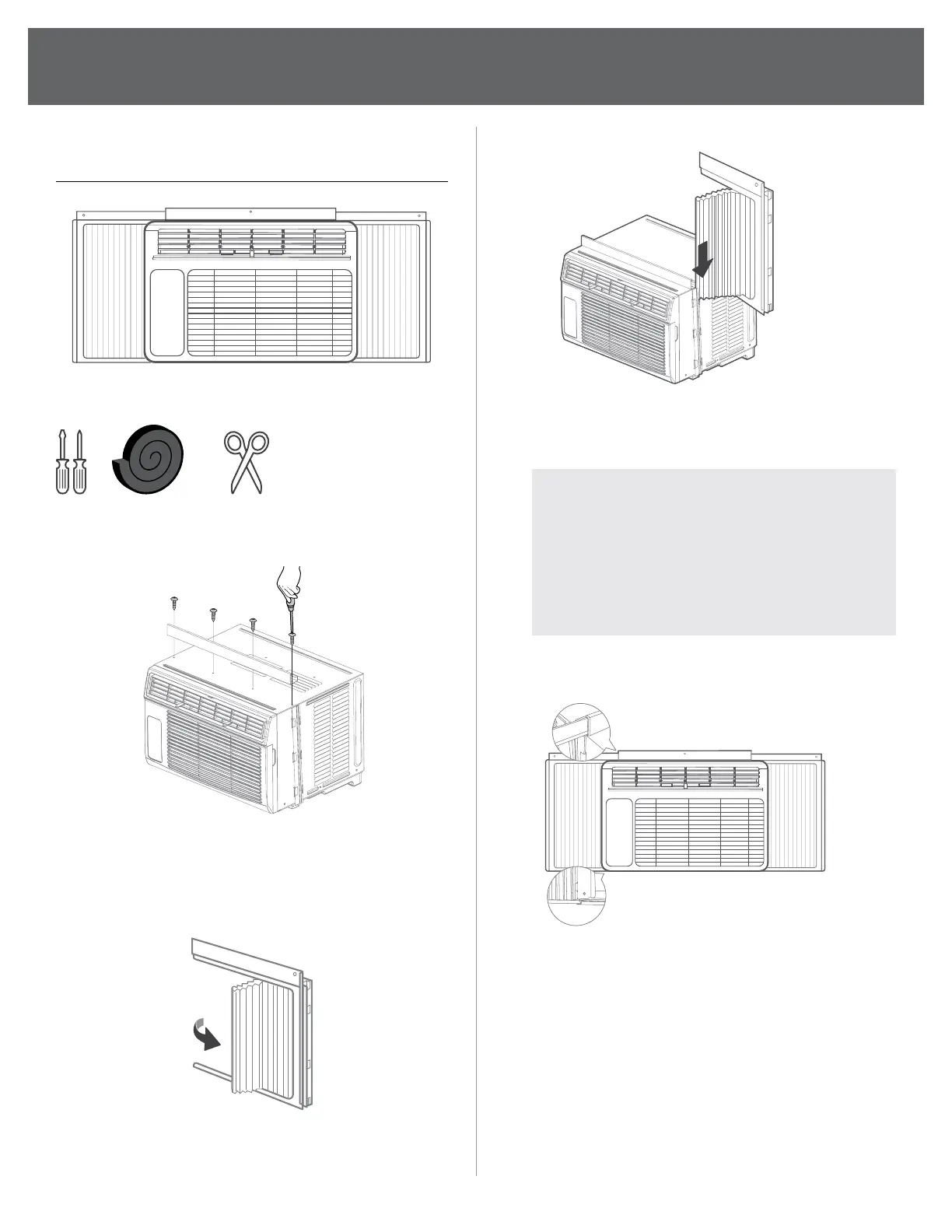

INSTALLATION INSTRUCTIONS
STEP 1
UNIT INSTALLATION
RIGHT
LEFT
What you need:
1. Install the top rail on 4PACH12000.
The top rail is preinstalled on 4PACH8000.
Install the Top Rail on 4PACH12000 (12,000
BTU) with 4 Screws (3/8in), for safety reasons,
all 4 screws MUST be securely fastened.
2. Pull the panels out around.
RIGHT
Pull the Left & Right Panels out half way around.
3. Install the accordion panels.
RIGHT
Insert the card slot on the side of the AC,
pay attention to the left and right dierences
of the Panel.
NOTE: Top rail and Sliding Panels at each
side are oset to provide the proper pitch
to the rear of (5/16 "). This is necessary
for proper condensed water utilization
and drainage. If you are not using the Side
Panels for any reason, this pitch to the rear
must be maintained.
4. Fasten the panels to the AC.
RIGHT
LEFT
Stretch the wind screen outward and insert the
upper and lower frame strips of the Panels into
the AC card slot.
(Continued)
