INSTALLATION INSTRUCTIONS
(Continued)
INSTALLATION GUIDE

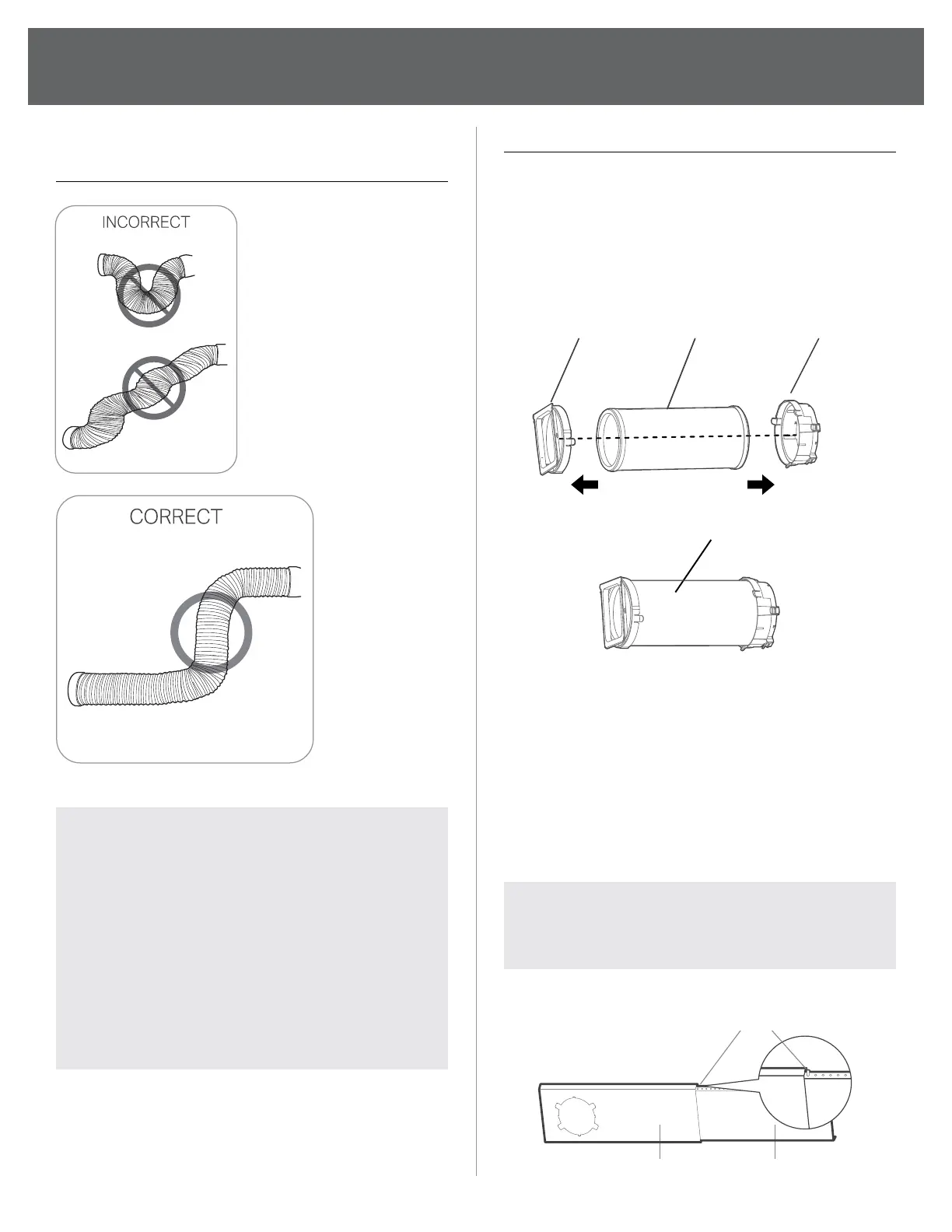

1. THE EXHAUST HOSE ASSEMBLY
INSTALLATION (WINDOW TYPE)
Attach the window slider adapter and the unit
adapter to either end of the exhaust hose. Both
adapters are interchangeable, so there is no need
to attach them to a specic end.
2. PREPARING THE
ADJUSTABLE WINDOW SLIDER LENGTH
Choose the window sliders according to the size
of your window. Sometimes, it needs to be cut
short to meet the window size, please take extra
care to cut it properly.
Use the included plastic bolt to fasten the window
sliders once they are adjusted to the proper length.
NOTE: Please plan your window slider
installation on the accessories in your kit
and the width of your window.
Connect the adaptor to the unit and the window
FOR OPTIMAL
PERFORMANCE IN OPERATION
NOTE: To ensure proper function, DO NOT
overextend or bend the hose. Make sure that
there is no obstacle around the air outlet of the
exhaust hose (in the range of 20" (500mm)) in
order to the exhaust system works properly. All
the illustrations in this manual are for explanation
purpose only. Your air conditioner may be
slightly dierent. The actual shape shall prevail.
IMPORTANT: Use only the exhaust hose
provided with the unit. Using a longer hose
may cause performance issues.
Unit adaptor Exhaust hose Window slider adaptor
Exhaust hose assembly
Bolt
Window slider A Window slider B
