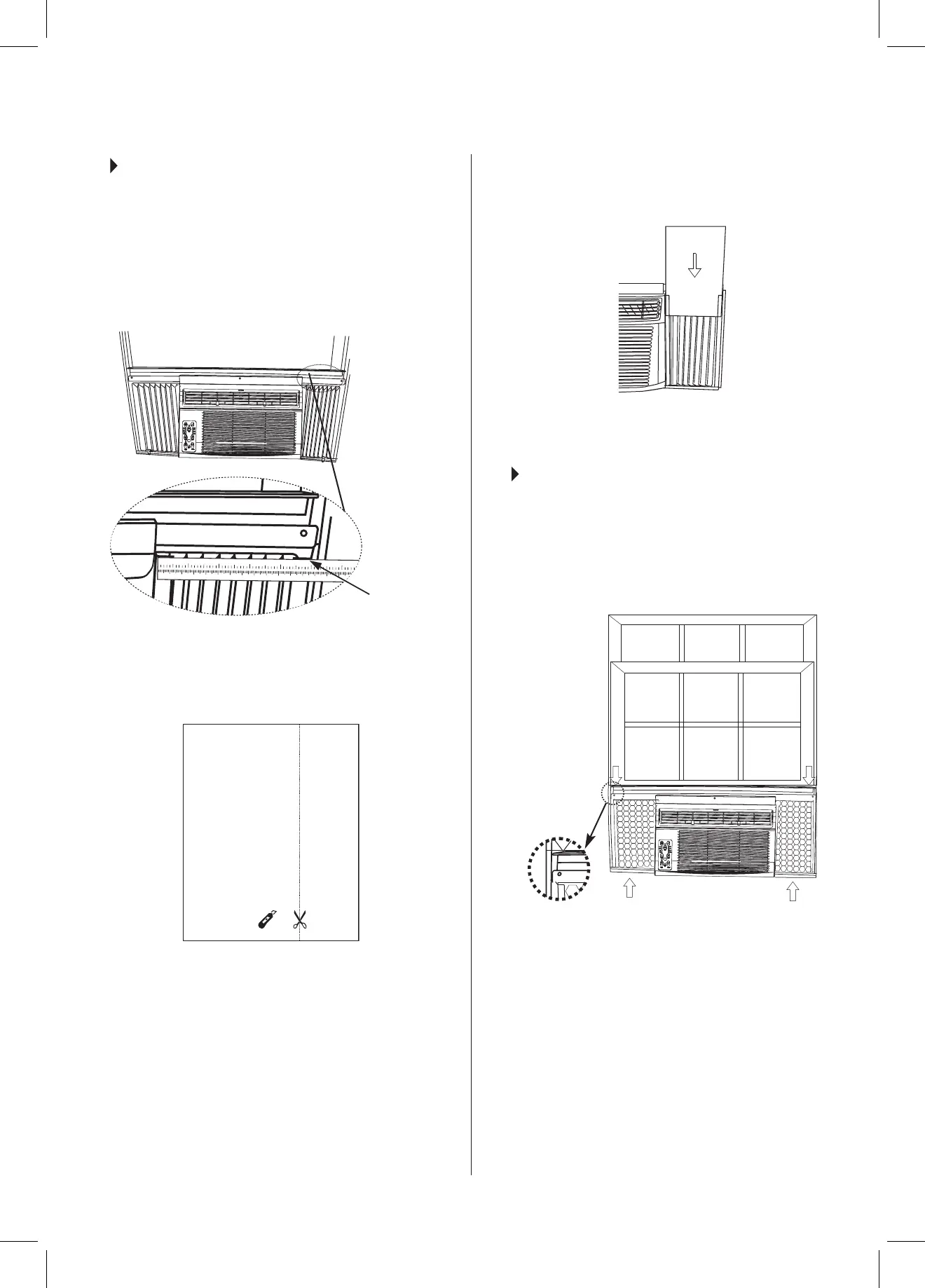

STEP 10:

INSTALL INSULATION PANELS

0UVYKLY[VTPUPTPaLHPYSLHRZHUKLUZ\YLVW[PTHS

insulation, it is necessary to install the included

insulation panels to the accordion panels. Follow the

4 steps in these instructions:

STEP 10.1: After the unit is installed in the window,

measure the inner width of one of the accordion

panels, as shown in Fig. 20.

1 2 3 4 5 6 7 8 9 10 11 12 13

14 15 16 17

1

2 3 4 5 6

STEP 10.2:4HYRHSPULVUVULVM[OLWYV]PKLK

insulation panels, matching the measured width in

Step 10.1; Cut the insulation panel along the line

(Fig. 21).

or

STEP 10.3::SPKL[OLPUZ\SH[PVUWHULS`V\Q\Z[J\[

into the accordion panel (curtain). The side of the

insulation panel with the pattern on it should face

indoors. (Fig. 22)

STEP 10.4: Repeat on other side with the second

insulation panel.

STE P 11:

INSTALL WEATHER STRIPPING

0UVYKLY[VTPUPTPaLHPYSLHRZIL[^LLU[OLYVVTHPY

conditioner and the window opening, install weather

stripping into any gaps as you see necessary by

trimming the weather stripping to the desired length,

WLLSPUNVɈ[OLWYV[LJ[P]LIHJRPUNHUKÄSSPUN[OLZL

gaps. (Fig. 23)

FIG. 20

FIG. 21

Measure

the inner

width of

one of the

accordion

panels.

FIG. 22

FIG. 23
