6

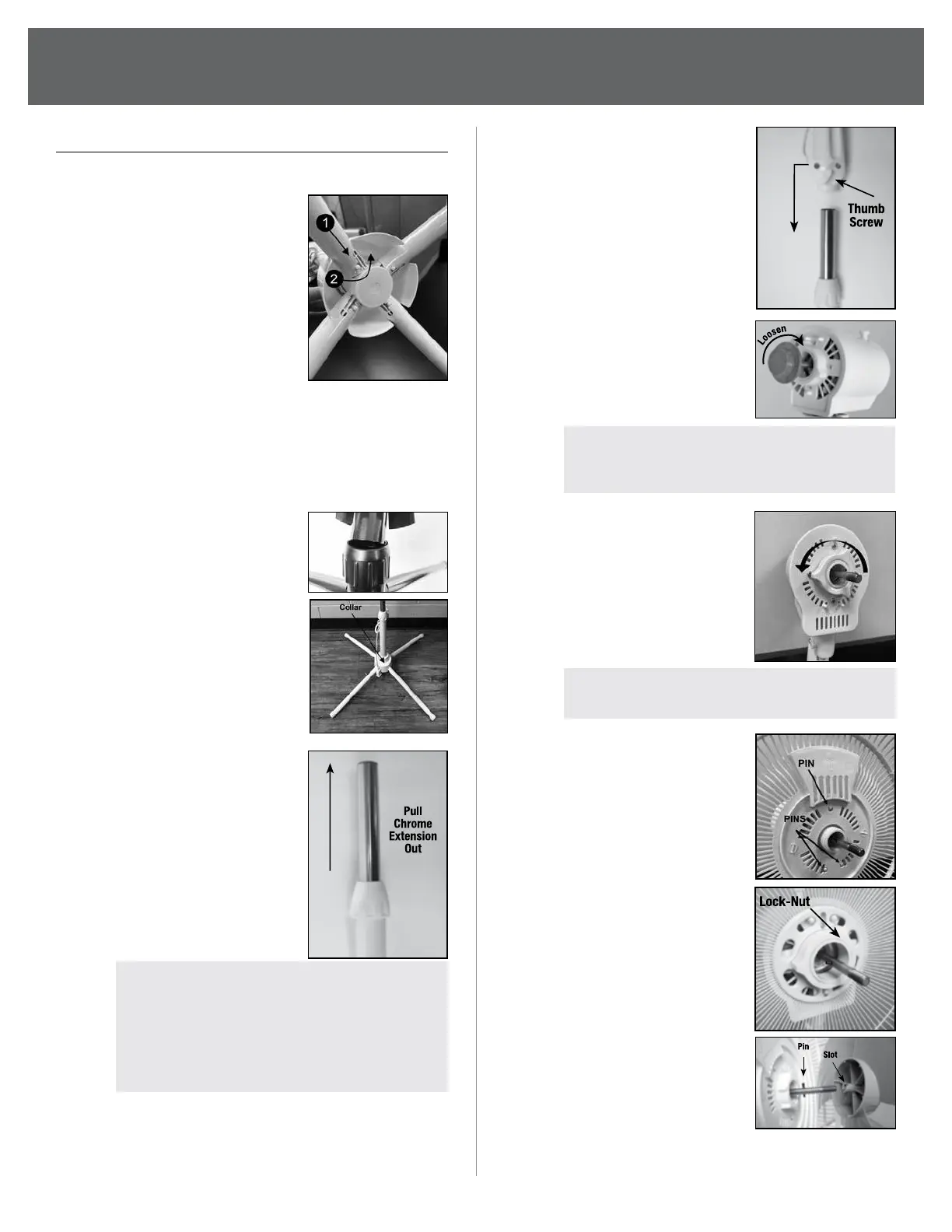

FAN ASSEMBLY
FAN ASSEMBLY
Simple assembly is required to use this fan.
Step 1. (4) Four legs will come
shipped inside of the
packaging. To attach
the legs to the pedestal
base: Guide the small
bump on the bottom
of the pedestal base
down the “L” groove
on the pedestal foot;
Lock the foot into place
by twisting it counterclockwise. Repeat
until all (4) four feet are attached to the
pedestal base. Flip the fan pedestal over
so it is sitting upright on the oor then
move onto the next step.
Step 2. Slide the pedestal bar
through the hole of the
collar. Then, insert the
fan pedestal pole into
the base and tighten by
twisting bottom collar
nut. Cover the top
portion of the base
assembly with the
plastic collar.
Step 3. With the collar nut
loosened, pull the
chrome extension out of
the fan pedestal to the
desired height. Then,
re‑tighten the collar nut
before moving onto the
next step..
NOTE:
The chrome extension may
be completely hidden inside of the
bar. Make sure the collar nut is fully
loosened, then slowly ip the bar upside
down so the chrome extension falls out.
Step 4. Assemble fan Control
Panel/Motor assembly
onto Chrome Extension
and tighten thumbscrew.
Step 5. Remove the Blade
Cap by twisting it
CLOCKWISE while
holding the metal
shaft tightly.
NOTE: Threads are reversed.
Loosen = Clockwise
Step 6. Loosen and remove
the locknut from the
motor housing to attach
rear grille.
NOTE: Loosen = Counter‑clockwise.
Step 7. Assemble Rear Grille
onto Motor Housing.
Rear Grille should t
into pins on fan motor
housing as shown.
Step 8. Thread the locknut onto
the motor housing and
twist clockwise to
tighten.
Step 9. Remove any protective
covering over shaft
before Fan Blade
Installation. Place Fan
Blade onto Motor Shaft.
Notice the pin on Motor
Shaft should t into slots of Fan Blade.
