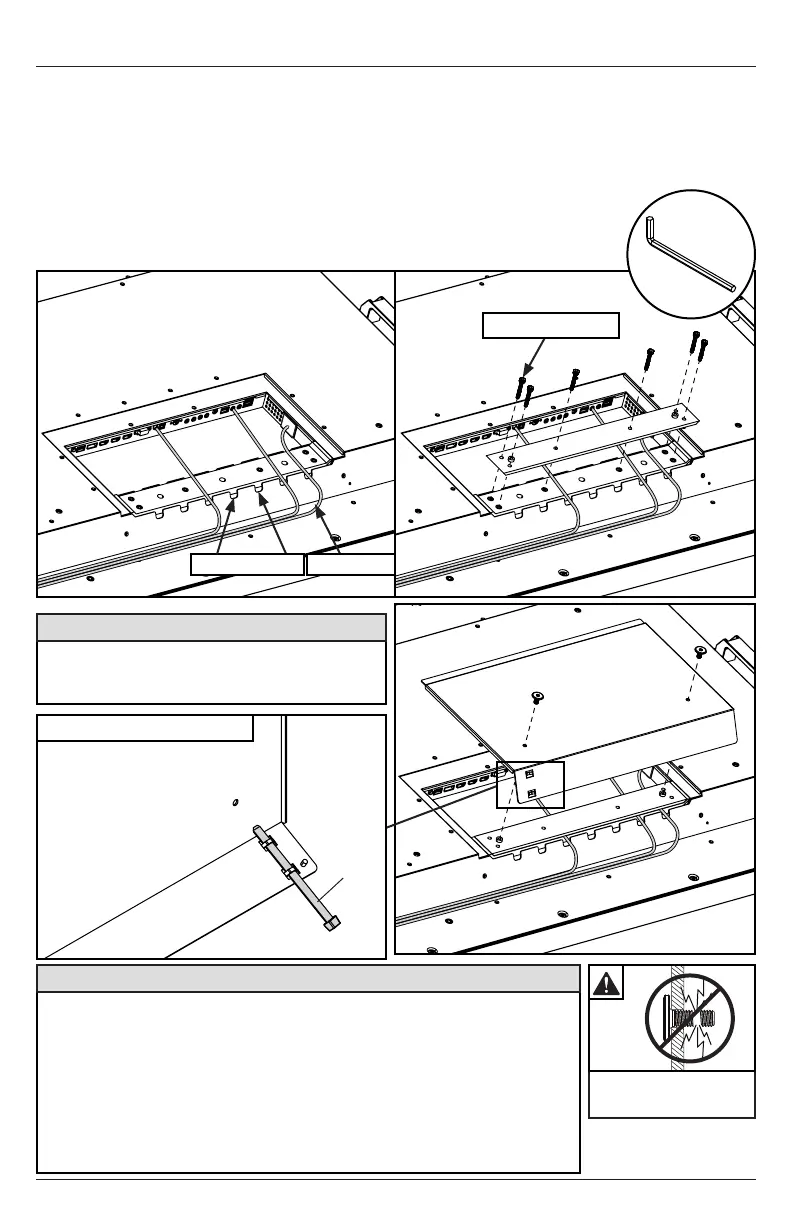

Replacing Cord Cover

1. Run power and signal cords through separate cable channels to prevent unwanted interference.

Route the power cord through the right most cable channel. (see image 1 below).

2. Replace the cord cover ensuring the cords are running through the cable channels and not

getting pinched. Loosely install six M5 hex cap screws, then tighten using 3mm allen wrench

until the cover gasket is fully compressed to the cord gasket.

3. Replace the rear cover plate ensuring the cords are running through the cable channels and not

getting pinched. Fasten the two hex screws on the rear cover plate using

3mm allen wrench to secure. Ensure the rear cover plate is fully compressed

to the back of the display.

• Ensure cord bend radius does not exceed limits set by the

manufacturer.

• Ensure cords are seated properly in the cable channels to avoid

potential damage to cords when rear cover plate is installed.

• Do not remove lanyard that connects the rear cover plate to the display.

• Ensure cables exiting input compartment are routed downward when

installing display in portrait orientation. If the installation requires the

cabling to be routed upward, ensure that the cables are routed with a

drip loop.

CAUTION

Do not overtighten

screws.

M5 hex cap screw

CAUTION

Failure to follow these instructions can result

in the product being damaged or destroyed,

voiding the warranty.

power cordcable channels

Optional: cable management
