CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT OPEN.

GROUNDING OF THE CENTRE PIN OF THIS PLUG MUST BE MAINTAINED.

ATTENTION

POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE. NE PAS OUVERT.

CONSERVER LA MISE À LA TERRE ASSURÉE PAR LA TIGE CENTRALE DE CETTE FICHE.

USB 2.0

DisplayPort

HDMIHDMI

AUDIO

OUT

Data

TUNER

(OPTION)

CVBS

5V/2.4A

DC OUT

12V/2.5A

DC OUT

LAN

INLET

RS-232

OUT

ALS

S/PDIF

Optical

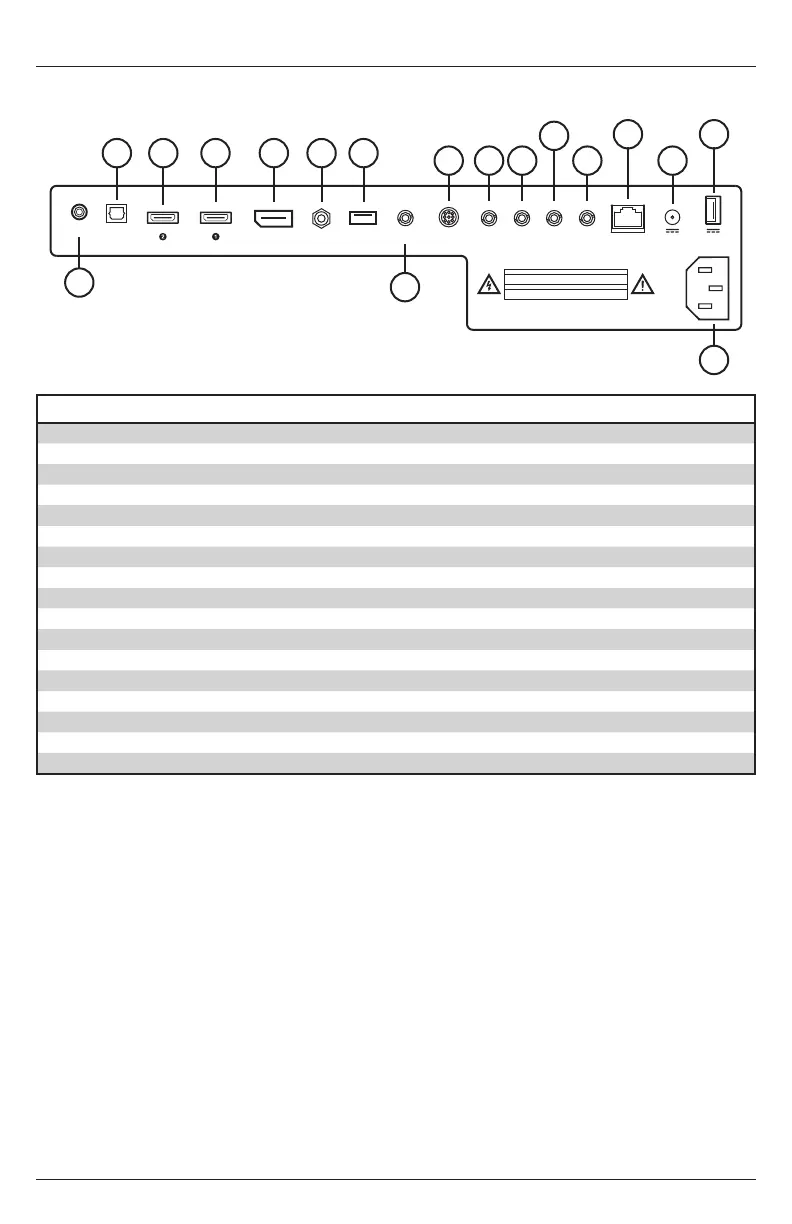

Connecting Cords

Connect source devices to appropriate display input. Make all connections prior to powering on the

display. The USB 2.0 Data port is for service and media only. For 5VDC power, use the 5VDC power

port.

4 5 6

1110

Connection Type Description

1 Analog Audio Output Provides Analog Stereo Output

2 S/PDIF Digital Audio Output Supports Digital Audio

3 HDMI2 Input Supports FHD Digital AV / ARC / peerConnect (CEC)

4 HDMI1 Input Supports FHD Digital AV / peerConnect (CEC)

5 DisplayPort Input Supports FHD Digital AV

6 Mini AV Input Supports Composite Video and Stereo Audio

7 USB 2.0 Data Port Input Supports Text / Photo / Video; Firmware upgrades

8 Ambient Light Extender Input Ambient light sensor sold separately

9 Antenna Module Input (for future use)

10 IR Extender Input Supports the included IR Extender

11 IR Repeater Output IR emitter/repeater sold separately

12 RS232C Input Supports Serial Control of the display, input

13 RS232C Output (for future use)

14 LAN Port Supports Network Control and Monitoring*

15 12V DC Output Supplies 12V DC, 2.5A

16 5V DC Output Supplies 5V DC, 2.4A

17 AC Input Supports 100 ~ 240V, 50/60Hz / Region-Specic Power Cord

*Visit www.peerless-AV.com product page to download Monitoring Instructions.
