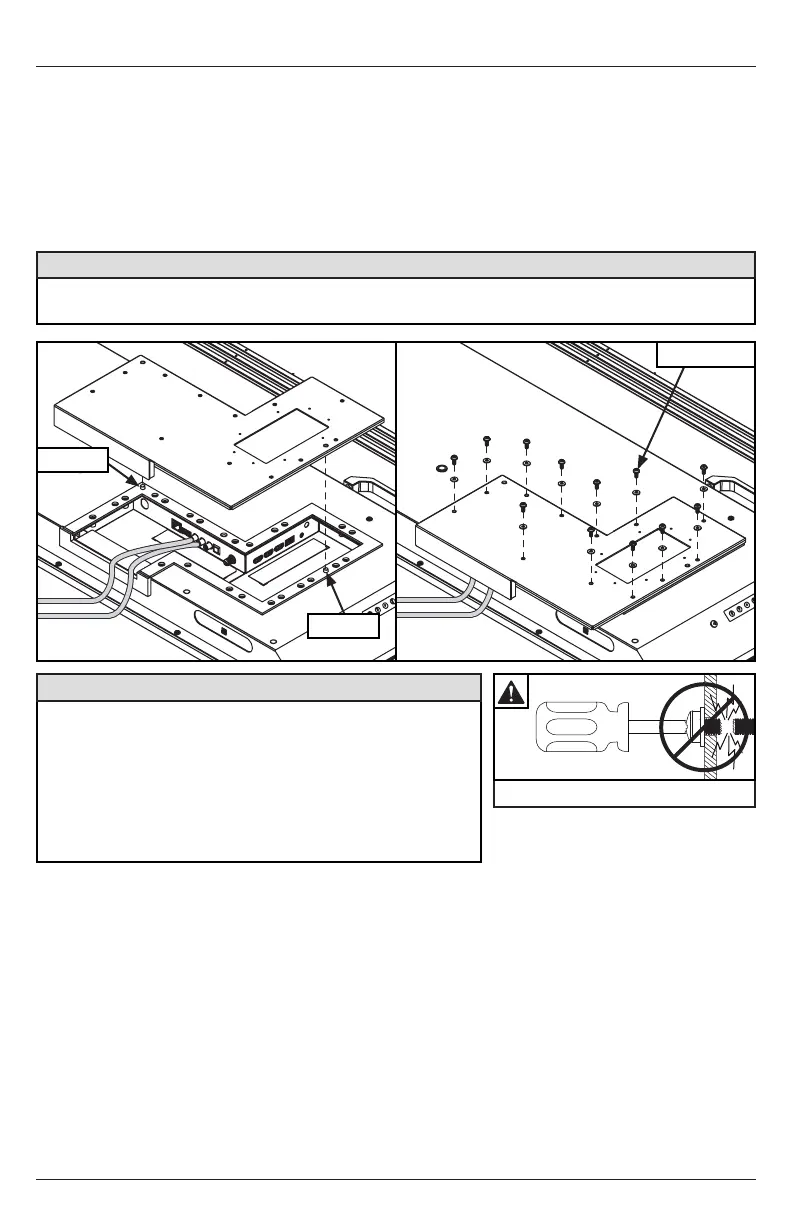

Replacing I/O Terminal Cover

1. Run cables through bottom of I/O terminal cavity across foam gasket. All cables must exit toward

bottom of display to retain seal when I/O terminal cover is installed. Do not run cabling through

the top or sides of I/O terminal cavity. Leave approximately 1/2" (13mm) between cables to

retain seal when I/O Terminal Cover is installed.

2. Replace I/O terminal cover onto I/O terminal guides, keeping cables between the bottom

gaskets.

3. Replace and tighten screws until I/O terminal cover gasket is fully compressed to back of display.

CAUTION

Failure to follow these instructions can result in the product being damaged or destroyed, voiding

the warranty.

• Ensure cord bend radius does not exceed limits set by

the manufacturer.

• Ensure cords are seated properly in the cable channels

to avoid potential damage to cords when I/O terminal

cover is installed.

• Do not run cables through the top or sides of I/O terminal

cavity. All cables must exit toward bottom of display to

retain seal when I/O terminal cover is installed.

CAUTION

Do not overtighten screws

guides

Replace

guides
