3.5mm Serial
The UART (asynchronous serial) interface is a 3.5mm (1/8") jack and will interoperate with most
RS-232 compatible devices. The receiver will tolerate input voltages between -30V and +30V, with
anything below 3V interpreted as a logical 1. The transmitter drives +5V for logical 0 and 0V for
logical 1.
The default baud rate of the RS-232 interface is 115200, with no parity, 8 data bits, and 1 stop bit.
These settings can be congured in the software. The serial interface supports TX, RX, and ground
only -- RTS/CTS hardware ow control is not supported.
A serial plug that is inserted into the 3.5mm jack should use the following signaling:
• Tip: Transmit
• Ring: Receive
• Sleeve: Ground

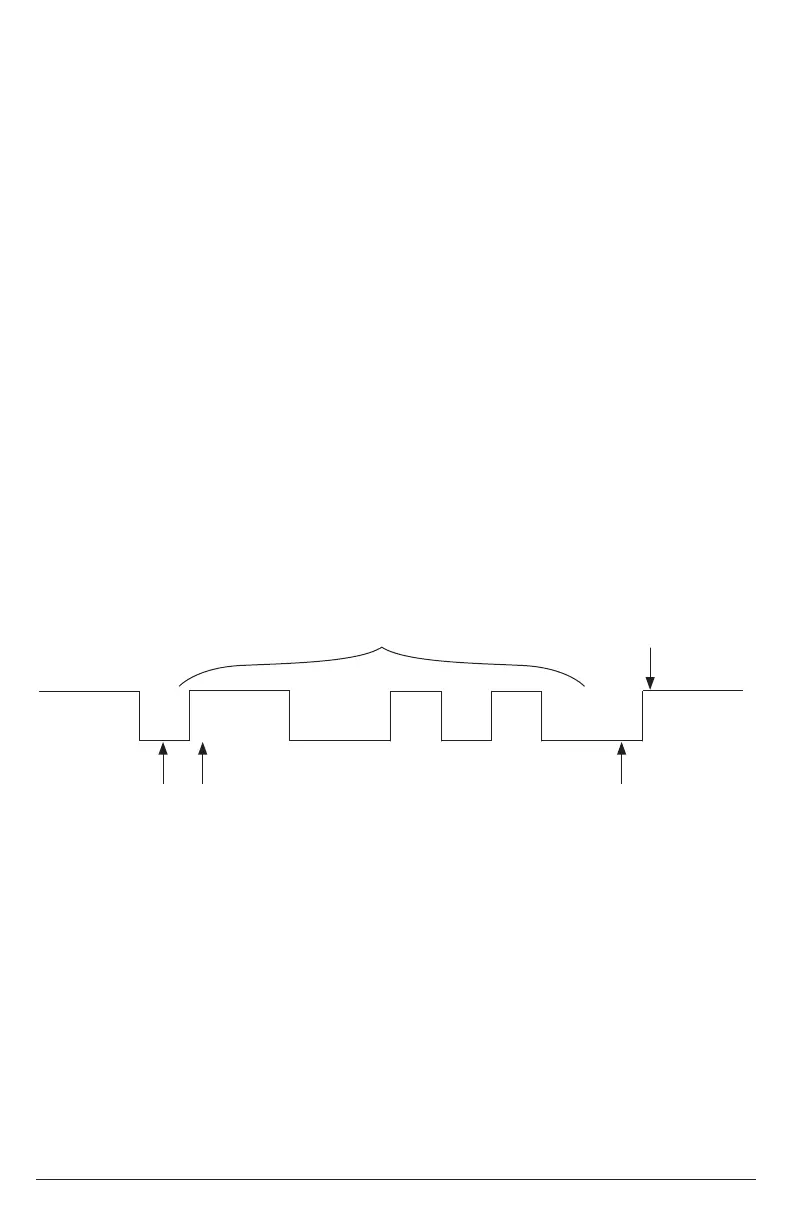

The following diagram illustrates the behavior of the TX and RX signal:
Start Bit
D0 D7D2D1 D3 D4
D6D5
LSB Parity Bits (optional, odd or even)
Stop Bit(s)Data Bits
3.5mm Audio Connector
The KIPICT2555 has a combination audio jack.
The full scale voltage output of the audio is 2V RMS. The minimum load impedance is 32.
The audio connector has the following pinout.
• Tip: Left audio
• Ring: Right audio
• Sleeve: Ground for audio signal
Wi-Fi / Bluetooth
The KIPICT2555 Wi-Fi / Bluetooth module (WS103) is setup in BrightAuthor. The following
specications are for the wireless / Bluetooth module:
Wireless
802.00 protocols: A, B, G, N, AC
Frequency bands: 2.4GHz, 5GHz
Tx power: Up to +16dBm
RX sensitivity: <-82dBm
Security: WEP (64 & 128), WPA, (TKIP), WPA2 (PSK + 802.1x), and 802.1.1i.
*WPA Enterprise is also supported using DER, PEM, or PKCS#12 certicates. The PEAPv0/
MSCHAPv2 protocol is supported with rmware.
