6
PCE Instruments
10. How to operate the instrument
The instrument is fully congurable from the 3 push button keypad and
the 4 red digit led display at the front of the instrument (see Table 5).
AT POWER-UP
When the power supply is connected, the instrument applies the
following sequence :
• the ‘display’ shows the rmware code ‘A6.xx’.
• the ‘display’ shows the congured ‘units’ and ‘input range’ (for
example: ‘Vac’ and ‘600V’).
• the instrument is now in ‘normal mode’ of operation and the ‘display’
shows the ‘information’ congured at section 13.5.
FROM ‘NORMAL MODE’ OF OPERATION
From ‘normal mode’ of operation, the operator can access the following
functions:
• key ‘SQ’ (<) gives access to the ‘conguration menu’ (see section 10.3).
• key ‘UP’ (5) gives access to the ‘force’ menu (see section 10.4).
• key ‘LE’ (5) activates the ‘messages’ function (see section 10.5).
‘ECO’ FUNCTION (‘DISPLAY’ POWERED OFF)
The ‘Eco’ function powers off the display under the following conditions:
• the instrument is in ‘normal mode’ of operation.
• there is no interaction from the operator for 60 seconds.
The decimal point remains active (ashing), indicating that the
instrument is working correctly. This is a congurable function, enabled
by default. To congure the ‘Eco’ function, see section 13.8.
10.1 Conguration system
10.2 ‘Normal mode’ of operation
HOW TO ENTER THE ‘CONFIGURATION MENU’
With the instrument in ‘normal mode’ of operation (see section 10.2),
press the ‘SQ’ (<) key and maintain for 1 second. The horizontal leds
light from bottom to top. When the upper led lights, the instrument
enters into the ‘conguration menu’.
When entering the ‘conguration menu’, the rst menu entry ‘Function
code’ (codE) is displayed. See section 14 for a full view of the
‘conguration menu’.
If the ‘SQ’ (<) key is released before entering into the
‘conguration menu’, the horizontal leds light downwards from
top to bottom, and the instrument returns to ‘normal mode’ of
operation.
HOW TO OPERATE INSIDE THE ‘CONFIGURATION MENU’
Inside the ‘conguration menu’, use the front keypad to move through
menu entries, parameters, and select conguration values:
• Key ‘SQ’ (<) functions as the ‘ENTER’ key. It selects the menu entry
currently displayed. At numerical value entries, it validates the number
displayed.
• Key ‘UP’ (5) moves vertically through the different menu entries. At
numerical value entries, it modies the selected digit by increasing its
value to 0, 1, 2, 3, 4, 5, 6, 7, 8, 9.
• Key ‘LE’ (3) functions as the ‘ESCAPE’ key. It leaves the selected
menu entry, and eventually, will leave the ‘conguration menu’.
When leaving the ‘conguration menu’, the changed parameters are
activated. At numerical value entries, the ‘LE’ (3) key allows to select
the active digit. To modify a numeric value press the ‘UP’ (5) key to
increase the value ‘+1’. Press the ‘SQ’ (<) key to validate the value.
WHEN EXITING THE ‘CONFIGURATION MENU’
When exiting the ‘conguration menu’ without changes (either by
‘rollback’ activation or because there are no changes in the conguration),
the horizontal leds light down from top to bottom, and the instrument
returns to ‘normal mode’ of operation.
When exiting the ‘conguration menu’ with changes, the display leds light
a round shape while the new conguration is stored. When the round
shape is nished, a start-up is applied (see section 10.2). After start-up,
the new conguration is active and the instrument is in ‘normal mode’ of
operation.
‘ROLLBACK’ FUNCTION
If there is no interaction from the operator for 60 seconds, the instrument
exits the ‘conguration menu’ discarding changes, and returns to ‘normal
mode’ of operation.
10.3 How to operate the ‘Conguration menu’

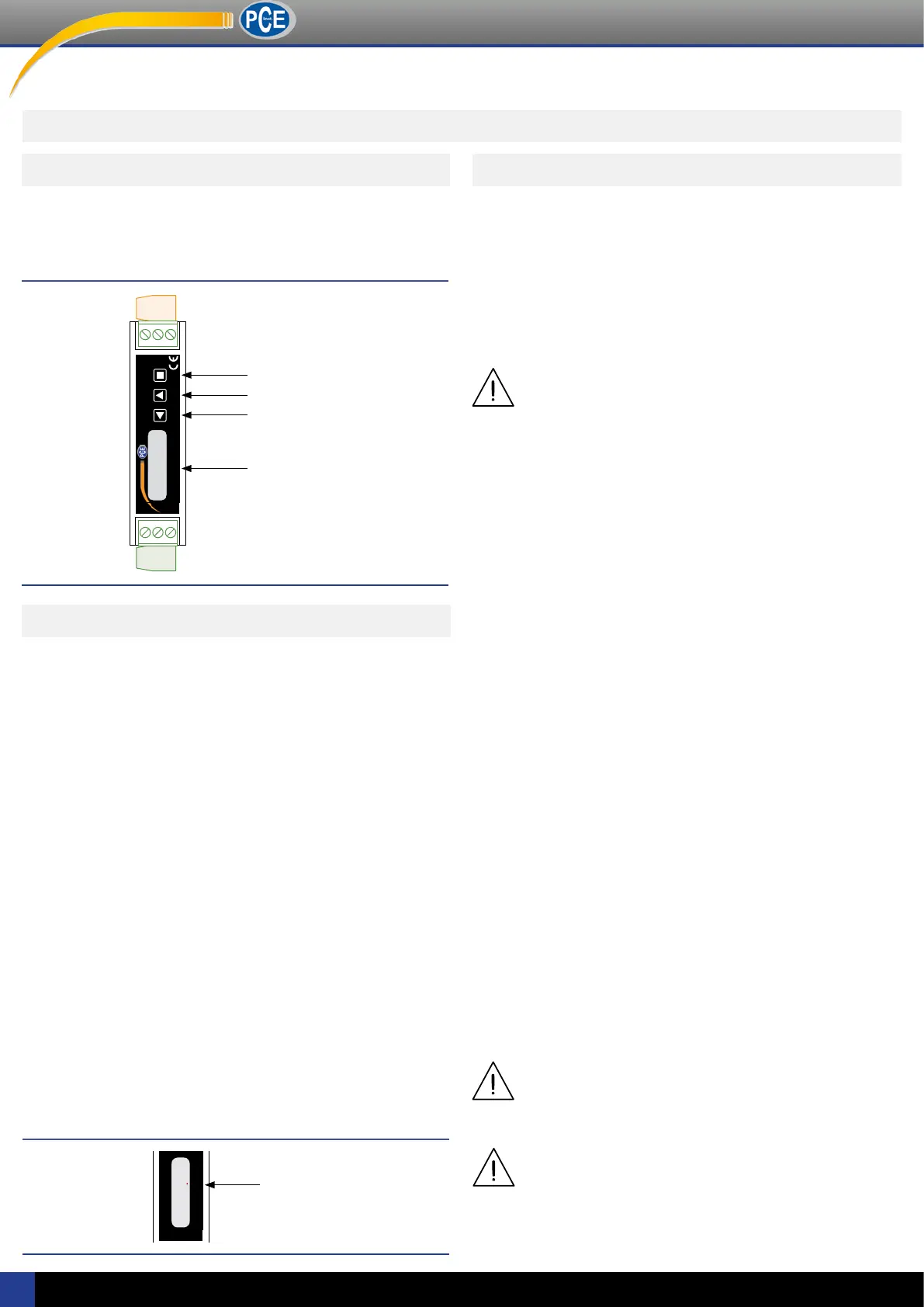

Table 5 | CONFIGURATION SYSTEM
SIGNAL CONVERTER
PCE-SCI series
Key ‘SQ’ (<)
Display
Key ‘UP’ (5)
Key ‘LE’ (3)
Table 6 | ‘ECO’ DECIMAL POINT
Flashing
When the operator is inside the ‘conguration menu’, the output
signal will remain overranged at maximum signal. Additional
congurations are available at the ‘On error’ parameter (see
section 13.8).
When the operator exits the ‘conguration menu’, the output
signal is temporarily set to minimum value for a time
<5 seconds, while the instrument restarts.
