19

User Manual EN

FLEX 6-E / 10-E / 16-E

FLEX 6-S3 / 10-S4 / 16-S6

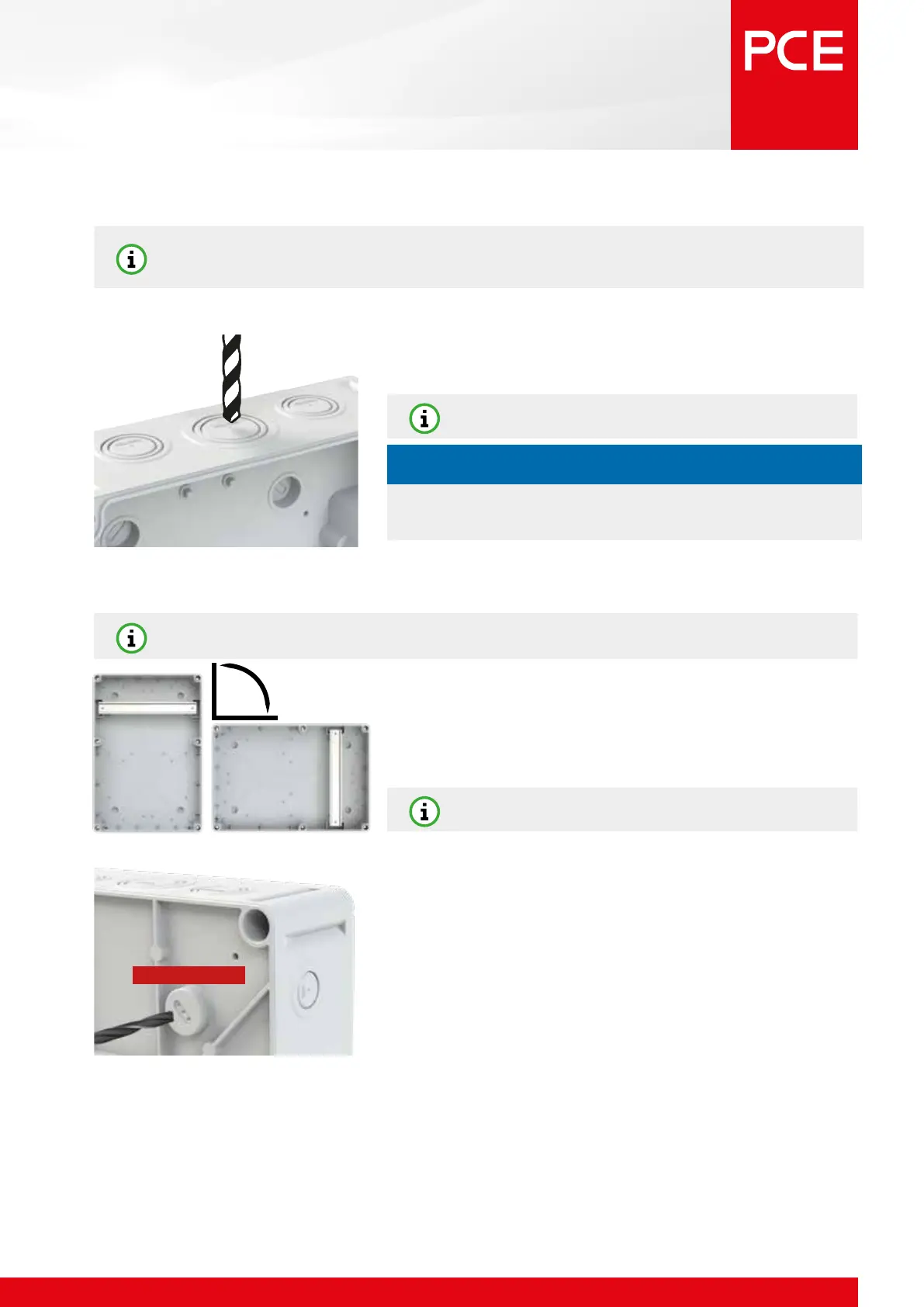

7. Installation instructions

ThisrecommendedinstallationproceduredescribesassemblingtheFLEXemptyenclosure,without

electricalinstallation,usingtheexampleofmodelFLEX16-S6.

7.1 Drill openings for cable glands

k Use a drill to drill out the openings for cable glands at the intended

positions

Observe the relevant manufacturers' installation instruc-

tions for cable glands

NOTICE

Cable gland openings are not designed to be broken out.

7.2 Mount FLEX empty enclosure on wall

The permissible operating positions of the equipment must be adhered to in order to ensure the

required degree of protection.

k ProtectionclassIP44andIP44/54–wallmounting,vertical,with

"TOP"markingattop.Wallmountingwith"TOP"markingatside–

max.angle90°(seegure)

k ProtectionclassIP66/67–portable,norestrictionofmounting

position

ModelsFLEX16-E/16-S6–portableonmetalsupports,

free-standing,"TOP"markingattop.

k Use a drill to drill out the mounting holes on the back of the FLEX

empty enclosure

max. Ø6mm

max. 90°
