1. Facing outlet of fan, drill (2) 5/16” diameter holes (1/2” for 34” fan) one at 10:00 and one at 2:00 position in front ﬂange. Facing the inlet side of fan, drill (1)

5/16” diameter hole (1/2” for 24” fans) at the 6:00 position in rear ﬂange. Holes should be drilled just behind the bead of the fan housing.

2. Attach two eyebolts to holes in top front of fan. Attach third eyebolt to back rear hole in fan.

3. By means of a mechanical lift (cherry picker, scissor lift, etc.) get the factory assembled fan head to the point where you plan to suspend it. You will need

three lengths of chain, three connectors, hardware for chains and bolt cutters.

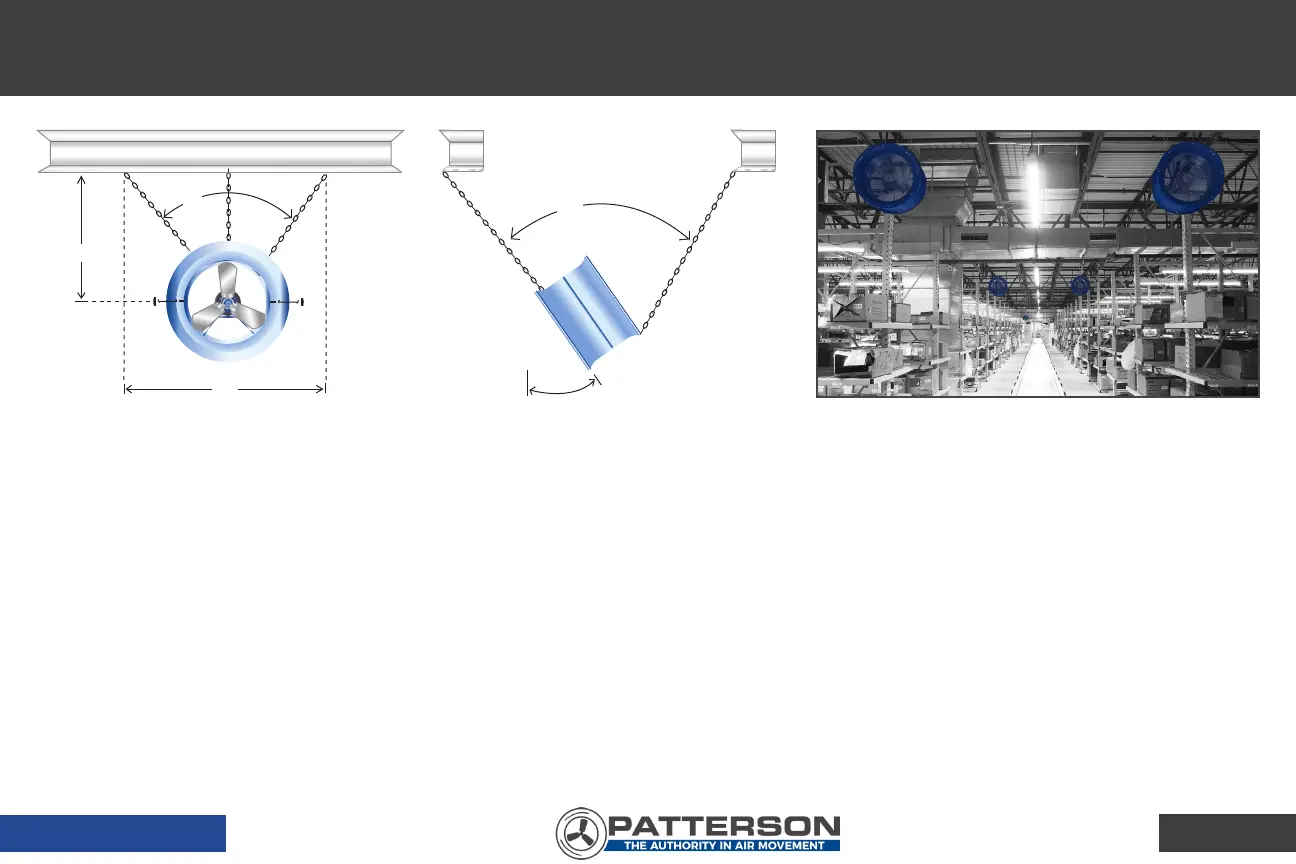

4. Secure two lengths of chain to the beam or girder (1) about two times the distance apart that the fan will hang down (see diagram). The third length of

chain should be centered between the two front lengths of chain and attached to beam (2). Attach the chains to the beams using your preferred method.

5. Connect the lengths of chain to the eyebolts on the factory assembled fan head using the chain connectors.

6. Rough focus the fan on your target while on the mechanical lift.

7. Get a co-worker to stand at the target mark. Make sure the power is turned o. Have someone plug the fan in. Let the fan run for approximately 30

seconds (to get up to speed and settle itself down). With someone on the ﬂoor, someone at the fan, and someone at the power, focus the fan. DO NOT

ATTEMPT TO ADJUST THE FAN WHILE IT IS RUNNING!

8. Remove excess chain with bolt cutters.

Note: Due to continual product improvement, items are subject to change without notice.

2 X

90°

30°

1 2

CEILING SUSPENSION

ASSEMBLY

803-768-3985
