The fan head is equipped with OSHA compliant finger guards.
Mount the fan at desired height making sure the fan is not
in the headway of personnel, preferably out of reach. These
fans are powerful and should not be mounted too close to
personnel at work stations.
1. See yoke mount instruction for yoke-to-fan assembly.
2. Assemble the column-wall bracket as followed. Secure (A)
(horizontal bottom strut) to the solid surface from which you
will hang the fan either a wall or column using appropriate
wall anchor (not included). (A) has a wall mount bracket
with a 4 hole pattern for mounting to surface.
3. Secure (B) to the wall allowing the bolt hole to lineup where
the fan yoke will be bolted to the column wall bracket. The
fan head and yoke are suspended below the column wall
bracket allowing full 360° rotation left and right.
4. Secure the “U” shaped yoke to the end of the column-
wall bracket where (A) and (B) converge using the bolt
supplied. The yoke allows a 30+- degree tilt toward the
floor for directing air throw as desired.
5. A safety cable is mandatory. Use a length of chain or
cable to secure the fan to a solid surface and attach the
fan. Make sure cable or chain is rated for the weight and
purpose.
Note: Due to continual product improvement, items are subject
to change without notice.

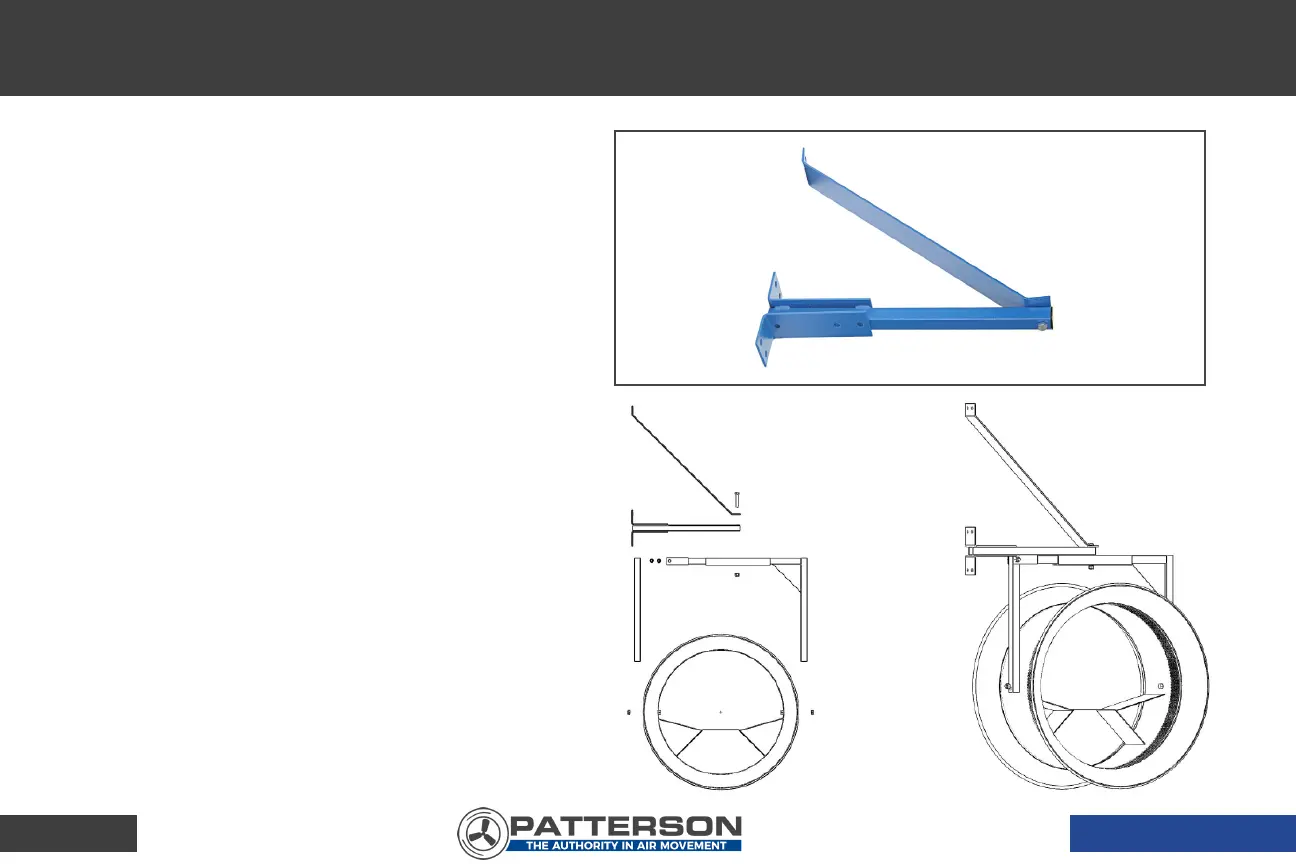

A
B
34” COLUMN-WALL
ASSEMBLY
CW
