PBSDA 20-Li A1
Inserting/removing the battery
pack into/from the appliance
Inserting the battery pack
♦ Allow the battery pack 0 to click into the
appliance.
Removing the battery pack
♦ Press the release buttonq and remove the
battery pack0.
Using the device
Tensioning/replacing the abrasive
belt
WARNING! RISK OF INJURY!
► Always switch off the appliance and remove
the battery before carrying out any work on
the appliance.
1. Loosen the clamping device for the abrasive
belt by swivelling the clamping lever 6 all
the way out. The abrasive belt z can now be
removed.
2. Now fit a new abrasive belt z or swap the
belt to work on a different material or to use
a different grain size.
IMPORTANT: The direction of the arrows on
the inside of the abrasive belt z and on the
appliance housing must match.
3. Press the clamping lever 6 back into its initial
position.
Manually adjusting the abrasive belt
z
If the belt tracking is not centred when you switch
on the device, you may need to manually adjust it.
♦ To do this, turn the adjusting screw t on the
front roller until the abrasive belt z is running
centred.
IMPORTANT: It is important to ensure that
the abrasive belt z does not rub against the
housing. Check the belt tracking regularly and
adjust it with the adjusting screw if required t.
Adjusting the additional handle
You can adjust the additional handle 3 to several
different positions.
♦ The additional handle 3 can be adjusted by
loosening the screw i.
♦ Adjust the additional handle 3 to the required
position.
♦ Retighten the screw i.

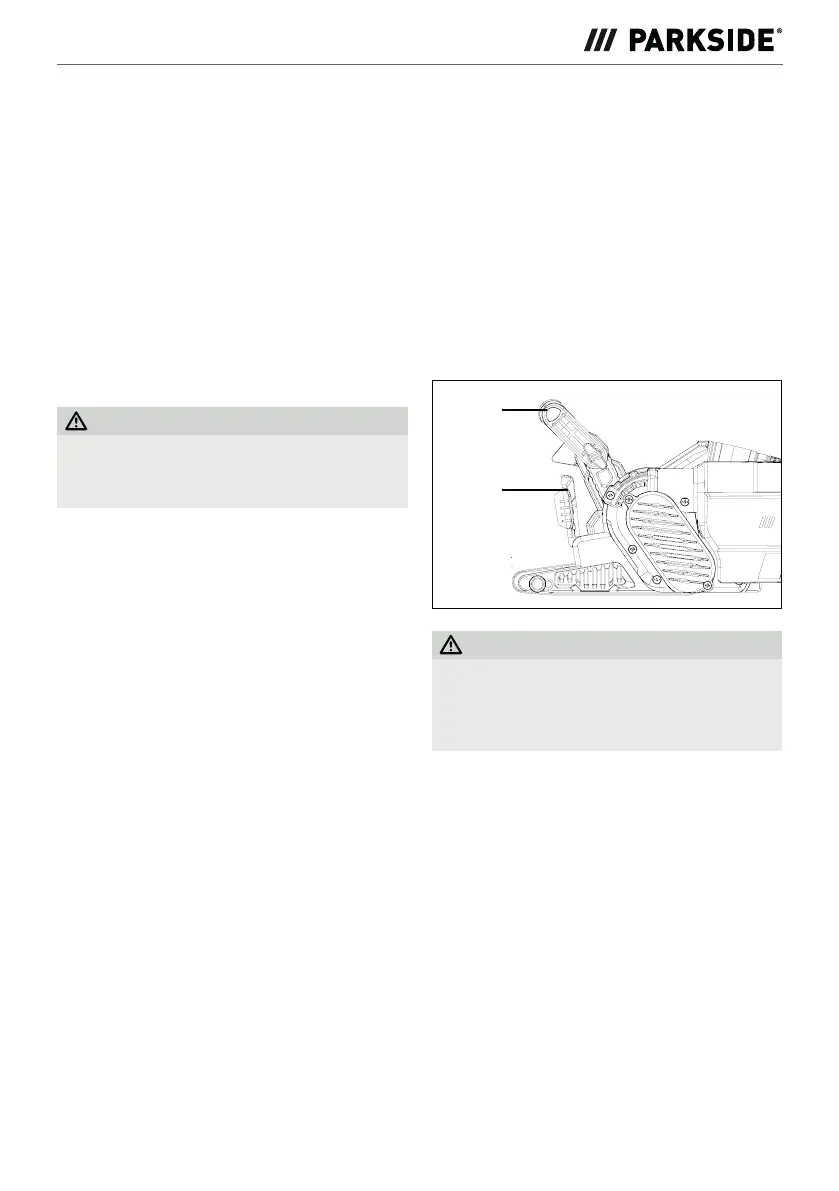

Flipping up the front cover
You can flip up the front cover 4 to grind in
hard-to-reach areas (see illustration).
4
3
WARNING!
► The front cover 4 can only be flipped upwards
if the additional handle 3 is also positioned
upwards (see section “Adjusting the addi-
tional handle”).
♦ Flip up the front cover 4.
