6

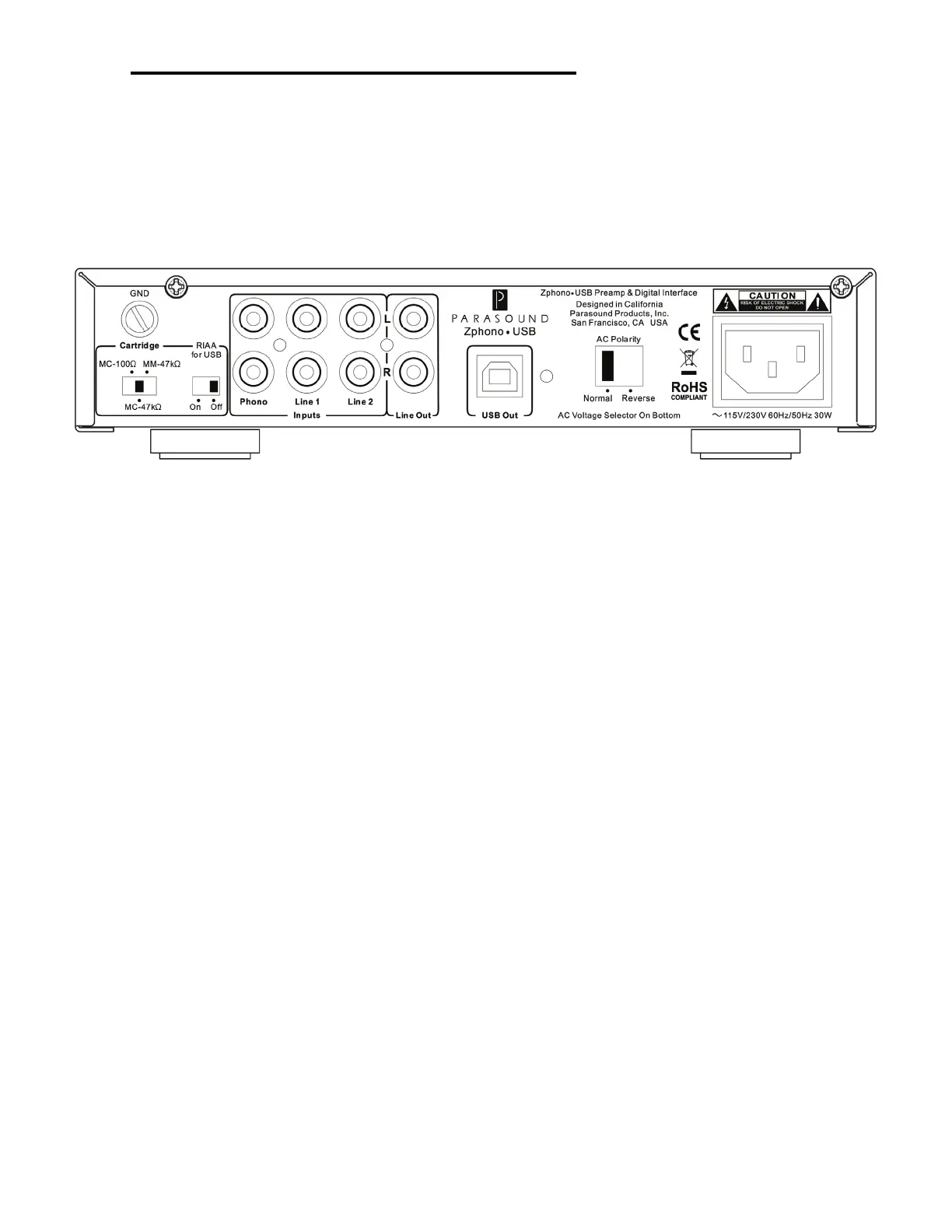

Connecting your Zphono•USB

Always disconnect the AC cords to your Zphono•USB and power amplifier(s) before

making or changing any input, output or trigger wire connections. Inserting or removing an

input or output cable while the Zphono•USB or power amplifiers are turned on can result in a

blast of sound that can damage your loudspeakers. Make sure there is no strain or tension on

any cables that could cause them to pull loose. The Zphono•USB has a few connectors with

which you might not be familiar. Please read this section thoroughly before making

connections.

Audio Input Connections

Phono Input Jacks and GND

Connect your turntable’s signal cables to the Phono Input jacks on the Zphono•USB. The

Phono Input jacks should only be used with a record player. Any other source such as a tuner

or CD player should be plugged into the Line 1 or Line 2 Input jacks. The turntable’s ground

wire attaches to the GND (Ground) terminal.

Choose the Correct Cartridge Setting

The Cartridge Switch has 3 settings to select the gain/loading for the type of cartridge you are

using. There are three positions for the cartridge switch: MC-100 Ω, MC-47k Ω and MM-47k Ω.

Choose the setting that best matches your cartridge type:

 The MC-100

Ω setting is for most moving coil (MC) cartridges. It provides the higher gain

required for MC cartridges and a 100 ohm load that is recommended for most MC

cartridges.

 The MC- 47k Ω setting provides appropriate gain for MC cartridges and a 47k ohm load

that you might prefer for your MC cartridge. You can try the MC-100 Ω or MC-47k Ω to

see which setting sounds better in your system.

 The MC- 47k Ω setting is also appropriate for moving iron (MI) cartridges such as Grados.

 The MM- 47k Ω setting is for all moving magnet cartridges. It provides appropriate gain

for MM cartridges and a 47k ohm load that is recommended for most MM cartridges.

 Some very high output MC cartridges will sound better with the MM- 47k Ω setting.

If you are unsure which setting is best for your cartridge we recommend that you contact your

dealer or the manufacturer of your cartridge. You can also experiment and simply use the

setting which sounds best in your system. The majority of turntables use MM type cartridges

so start with this setting first.
