Note: Labels can be applied at 0.60” from the end of a wire. Customers can apply labels to
individual conductors of a multi-conductor cable.
Push down with the Cable Guides while securing the cable to contact the presented label (see
Figure 27B). Once the cable is inserted fully (see Figure 27C), the Wrapping Mechanism rotates
and wraps the label. Hold down the cable until the Wrapping Mechanism stops. As the next
label is presented for wrapping, remove the cable to complete the process.
Compatible Cable Types: The system supports common cable jackets for electrical wire such
as PVC, XLPE (Crosslinked Polyethylene), PE (Polyethylene) with circular cross sections and
diameters within 0.12”-0.48”. It is not recommended to use this system to apply labels with
Teflon jackets or twisted pair. Certain cable and jacket types outside the materials listed above
as well as irregularly shaped cable/wires may reduce label adherence. Verify label wrap quality
prior to production implementation for a given wire/cable.
Label Application Steps

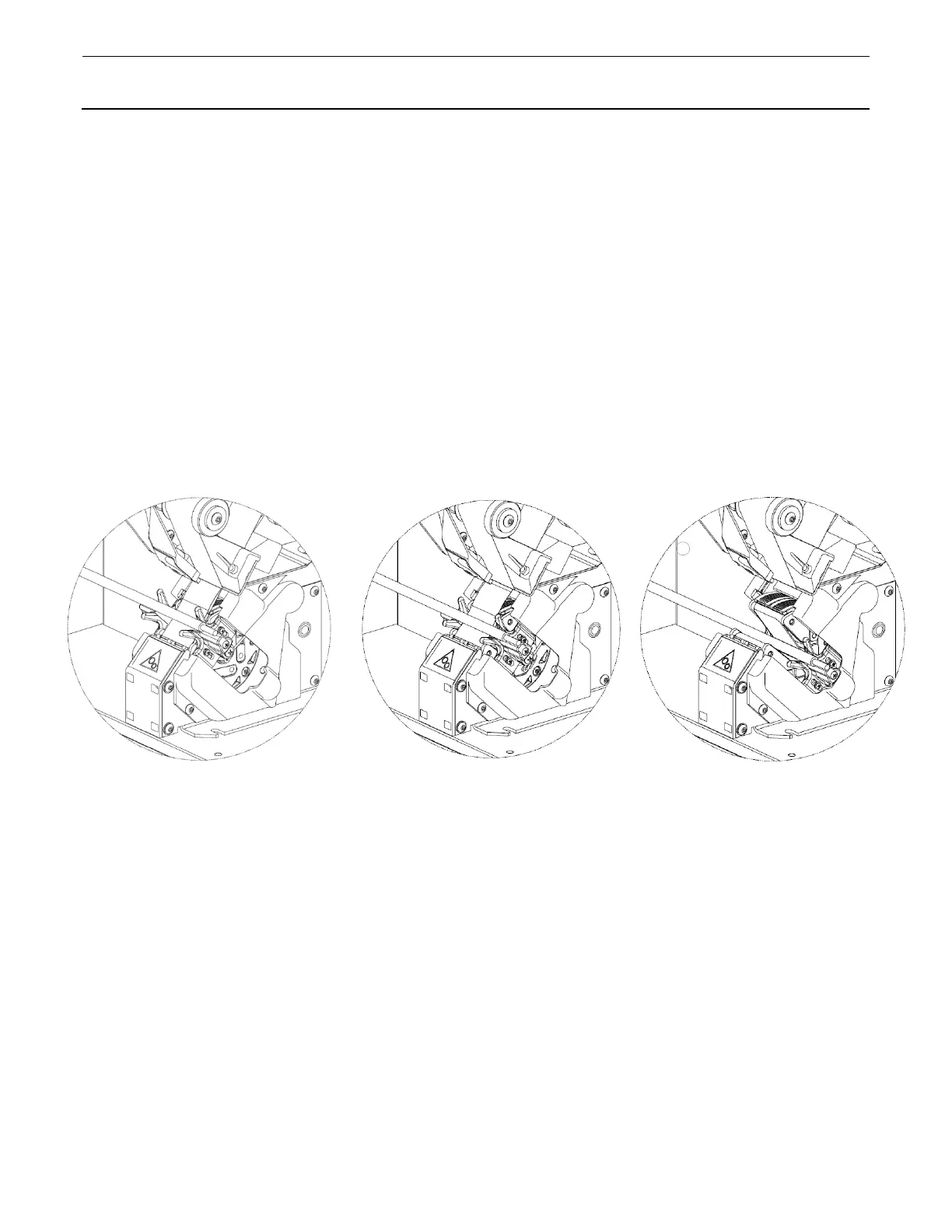

Figure 27A: Cable in Guides
Figure 27B: Cable Contacts Label
Figure 27C: Cable Inserted with Label
