© Panduit Corp. 2020
PLA-100, PLA-H100
Rev. 02 1 / 2021
Page 21 of 34
11: OPERATION/APPLICATION
Turn the power on. The label, now positioned on the Applicator (see Figure 26), falls to the
surface of the Applicator Belt while a small patch of the label remains attached to the liner and
peel plate to keep the label from moving.
Insert a cable into the Applicator using the Cable Guides (see Figure 27A). Secure cable
against the cable guides using forefinger and thumb. Ensure that the secured cable is straight
and does not have a bow.
Note: For best wrapping results customers must utilize a wire straightener for non-conforming
easily set electrical wires.

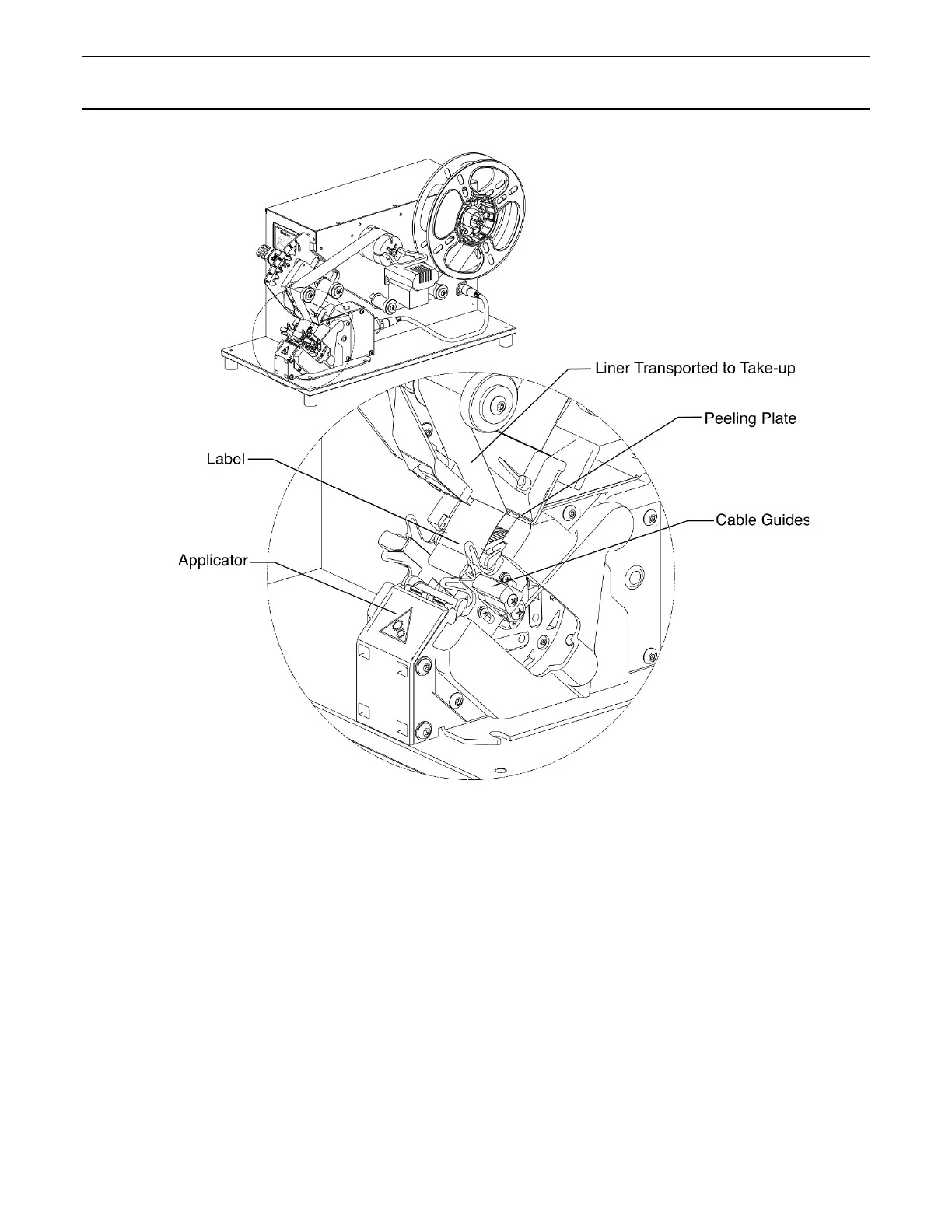

Figure 26: Applicator Installed with Label Presented for Wrap
