8. Depress the green lever a few times and verify that the cleaning tape is advancing properly.
PN433A
Page 1 of 4
For Technical Support: www.panduit.com/resources/install_maintain.asp
OPERATING INSTRUCTIONS
© Panduit Corp. 2009
PN433AOPERATING INSTRUCTIONS
© Panduit Corp. 2009
Page 4 of 4
E-mail:
cs@panduit.com
Fax:
(708) 444-6993
For Instructions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp
www.panduit.com
MTP* Cleaning Tools
Part Numbers: FMTPFCT, FMTPMFCT, FIBCCT, FMTPRR6
READ ALL INSTRUCTIONS COMPLETELY BEFORE PROCEEDING
TABLE OF CONTENTS Page(s)
Safety Precautions.................................................................................................... 2
Important Connector Cleaning Information............................................................... 2
FMTPFCT Instructions - Cleaning Female MTP* Connectors.................................. 2
FMTPMFCT Instructions - Cleaning Male MTP* Connectors................................... 3
FIBCCT Instructions - Cleaning Q
UICKNET Cassette MTP* Connectors................... 3
FMTPRR6 Instructions - Replacing FMTPFCT and FMTPMFCT Cleaning Reel.... 4
*MTP is a registered trademark of US Conec Ltd.
FMTPFCT FMTPMFCT
FIBCCT FMTPRR6
(Contains 6 reels)
MTP* Female Fiber Cleaning Tool MTP* Male Fiber Cleaning Tool
Q
UICKNET Cassette MTP* Cleaning Tool Cleaning Reel Refill for FMTPFCT and FMTPMFCT

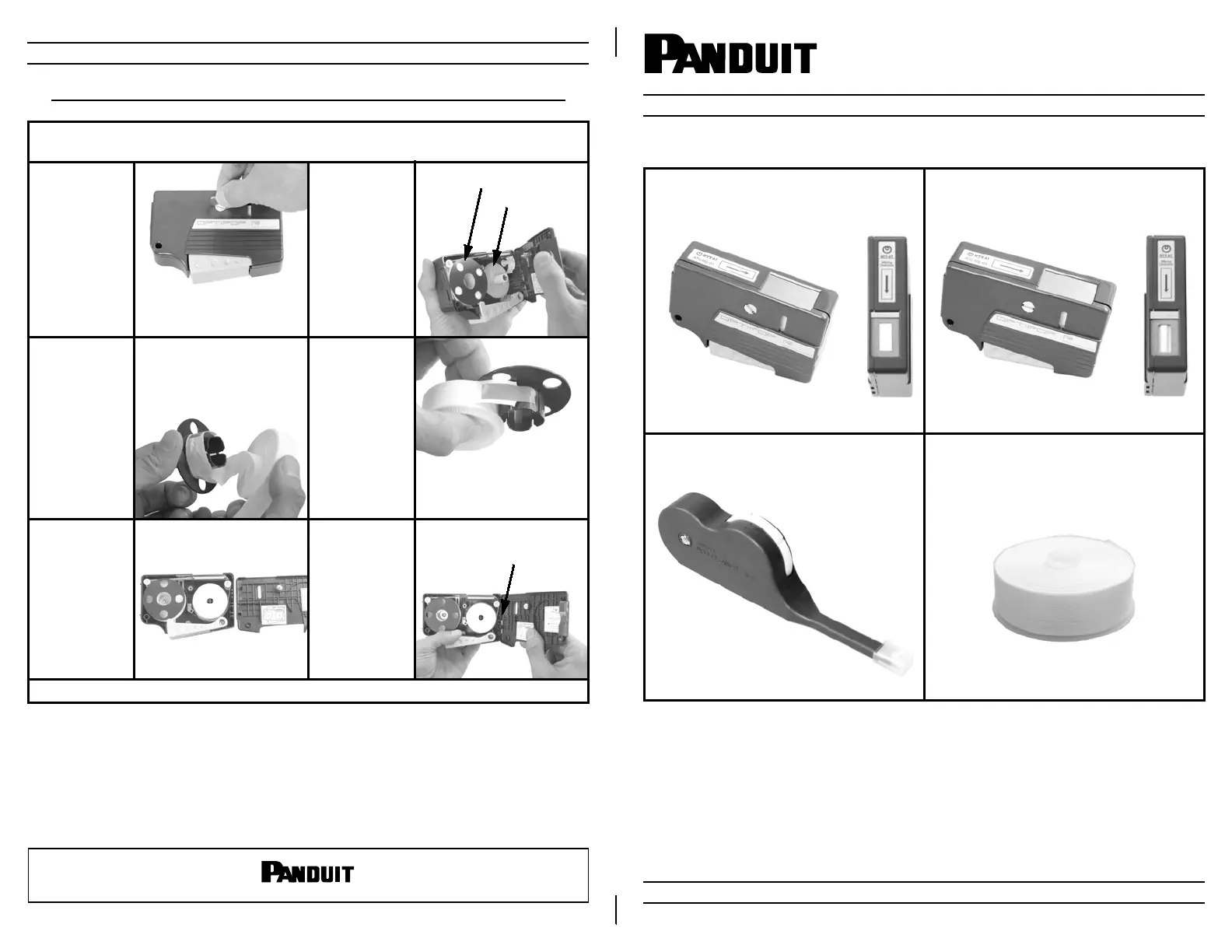

FMTPRR6 - Replacing FMTPFCT and FMTPMFCT Cleaning Reel
1. The cleaning reel should only be replaced in a clean and dust free environment. A contaminated cleaning
reel may cause damage to fibers.
2. Use a coin or
screwdriver to
loosen the screw
located on the
front of the
FMTPFCT or
FMTPMFCT
Fiber Cleaning
Tools.
3. Open and
remove the
cover using the
finger grip on
the side of the
tool.
4. Remove the
cleaning reel and
winding reel by
lifting them
straight out of the
tool. Remove the
cleaning tape
from the winding
reel. Do not
discard the blue
winding reel.
5. Place the empty
winding reel
next to the new
cleaning reel as
shown. Detach
the adhesive
tape from the
cleaning reel
and attach to the
winding reel.
6. Place the winding
reel and the
cleaning reel into
the tool and route
the cleaning tape
as shown on the
diagram located
on the tool cover.
7. Hook the cover
on the tool body
and swing the
cover closed.
Tighten the
screw.
*MTP is a registered trademark of US Conec Ltd.
Winding Reel
Cleaning Reel
Hooks
