For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2018
FS119A

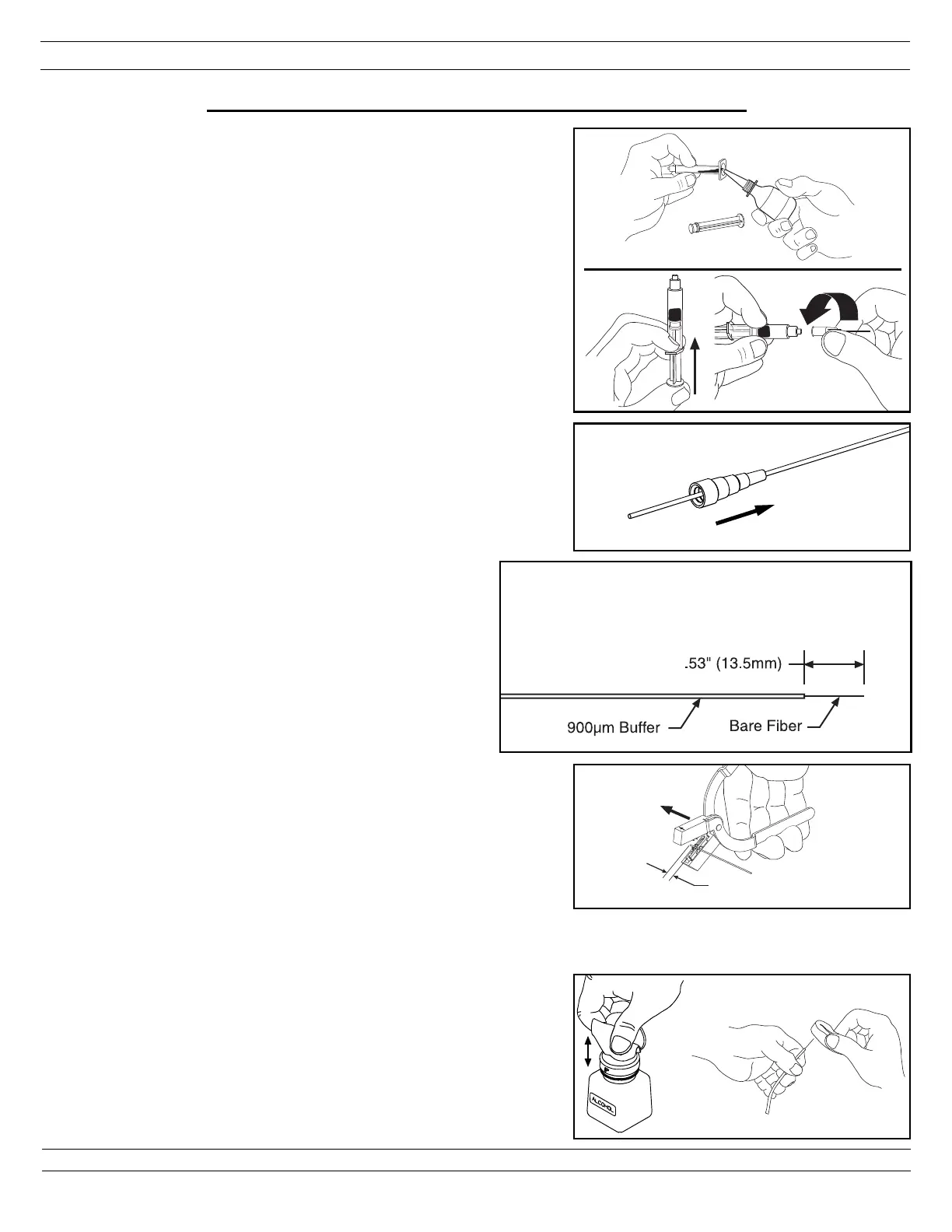

1. PREPARING ADHESIVE AND PRIMER
1.1 Remove the plunger from a syringe. Squeeze about 0.5ml of
FJPXY Anaerobic Adhesive into the back of the syringe barrel.
Insert the plunger. Point opening upward, and squeeze any air
out of the barrel. Attach needle to syringe. Adhesive that is
stored in a syringe may start to harden within 24 hours.
2. STRIPPING 900µm TIGHT-BUFFERED FIBER
2.1 Insert the fiber end through the small end of the 900µm boot.
Slide the boot back out of the way.
2.2 Following the stripping dimensions, use the marking pen to
place a mark .53" (13.5mm) from the end of the buffer.
2.3 With the fiber buffer stripper provided, strip the buffer.
BUFFER STRIPPING GUIDELINES:
• Panduit recommends that you remove no more than
1/4" (6.4mm) of buffer at a time to avoid breaking the
fiber. Refer to cable manufacturer's buffer stripping
guidelines for specific recommendations.
• Hold the buffer stripper such that the arrow on the tool
points in the direction of buffer removal.
• Noting the location of the tool's blades, position the
fiber in the tool's V-notches. Squeeze the handles
firmly, and pull tool in the direction of the arrow on the
tool.
• Clean the buffer stripper blades after each strip by
holding the handles open, pulling the casings back
away from the blades, and letting them snap back
against the blades.
3. ATTACHING FERRULE TO 900µm TIGHT-BUFFERED FIBER
Instructions intended for anaerobic adhesive only.
3.1 Clean the bare fiber using an alcohol (90% minimum
concentration) soaked lint-free wipe. The fibers should be free
of all coating and residue. Insert fiber without adhesive or
primer into ferrule assembly to ensure a proper fit and to
remove any debris which may be blocking the ferrule hole.
Remove fiber, clean fiber again, and proceed to the next step.
ADHESIVE
1.1
Page 3 of 11
1/4" (6.4mm) MAX
2.3
3.1
900µm Tight-Buffered Fiber Termination
900µm TIGHT-BUFFERED STRIPPING DIMENSIONS
IMPORTANT! Due to printing variations, use a rigid
Panduit laminated template.
scale for stripping dimensions, or the appropriate
2.2
2.1
