For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2012
CM546B
Page 4 of 14
Determine Location of 9506 Duct
9506 ducting requires 13 rack spaces for installation. 9506 duct components are to be installed prior to switch installation and are
not designed to support the switch.
NOTE: In server cabinet application, front-to-back equipment rail depth must be set to between 28.0"
and 29.5".

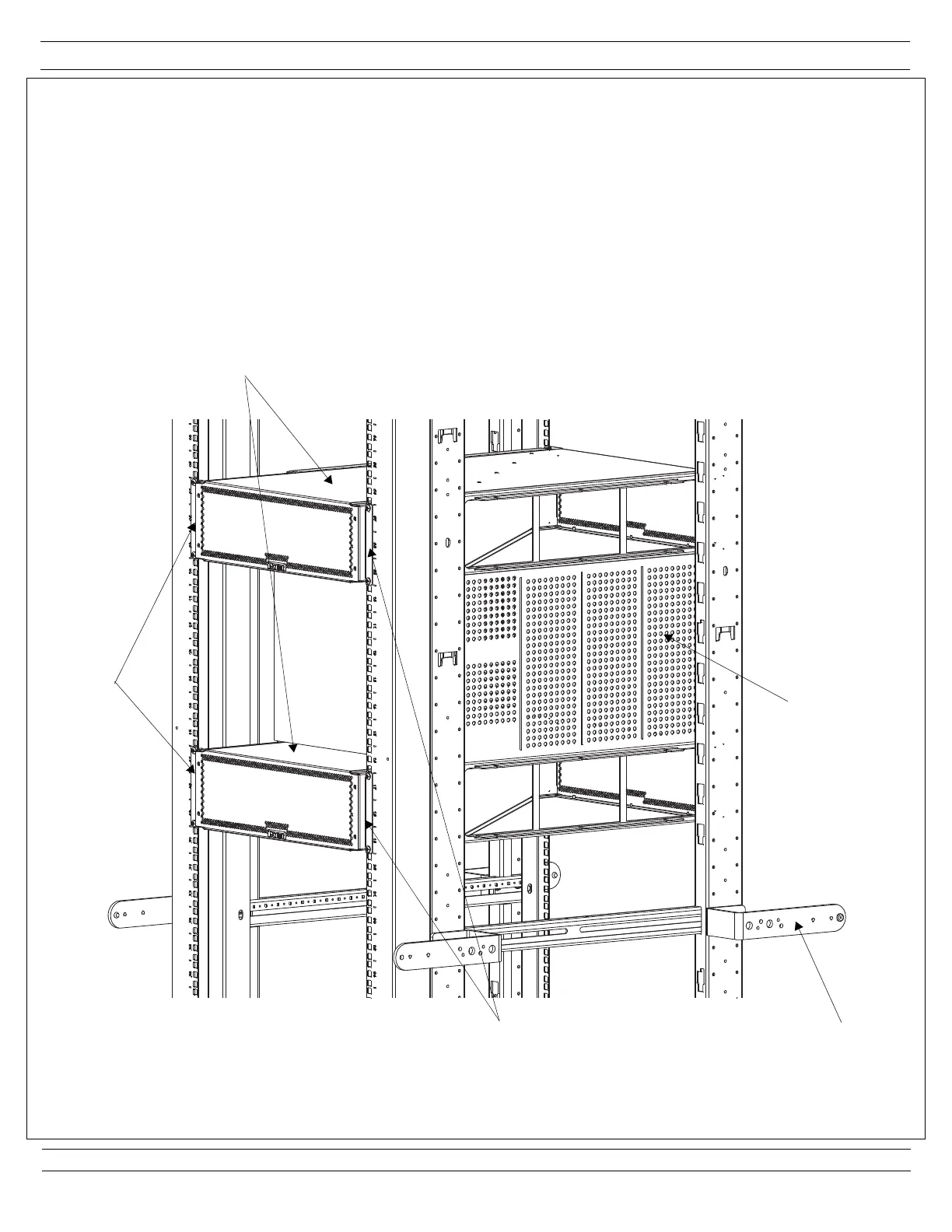

SECTION 1-Server Cabinet Application - Ports Facing Hot Aisle
(Cabinet part numbers CS*** or S***)
9506 Switch
Side
Brackets
Side
Brackets
Duct Box
Front of Cabinet
(Cold Aisle)
Rear of Cabinet
(Hot Aisle)
Note: Duct must be
installed below or
above middle front
to back beam.
