CT-2500CH, CT-2300, UP14ZLW Tools;
CD-525, CD-550, CD-570 and CD-090 Dies
PA25711A01
Rev. 06 11-23

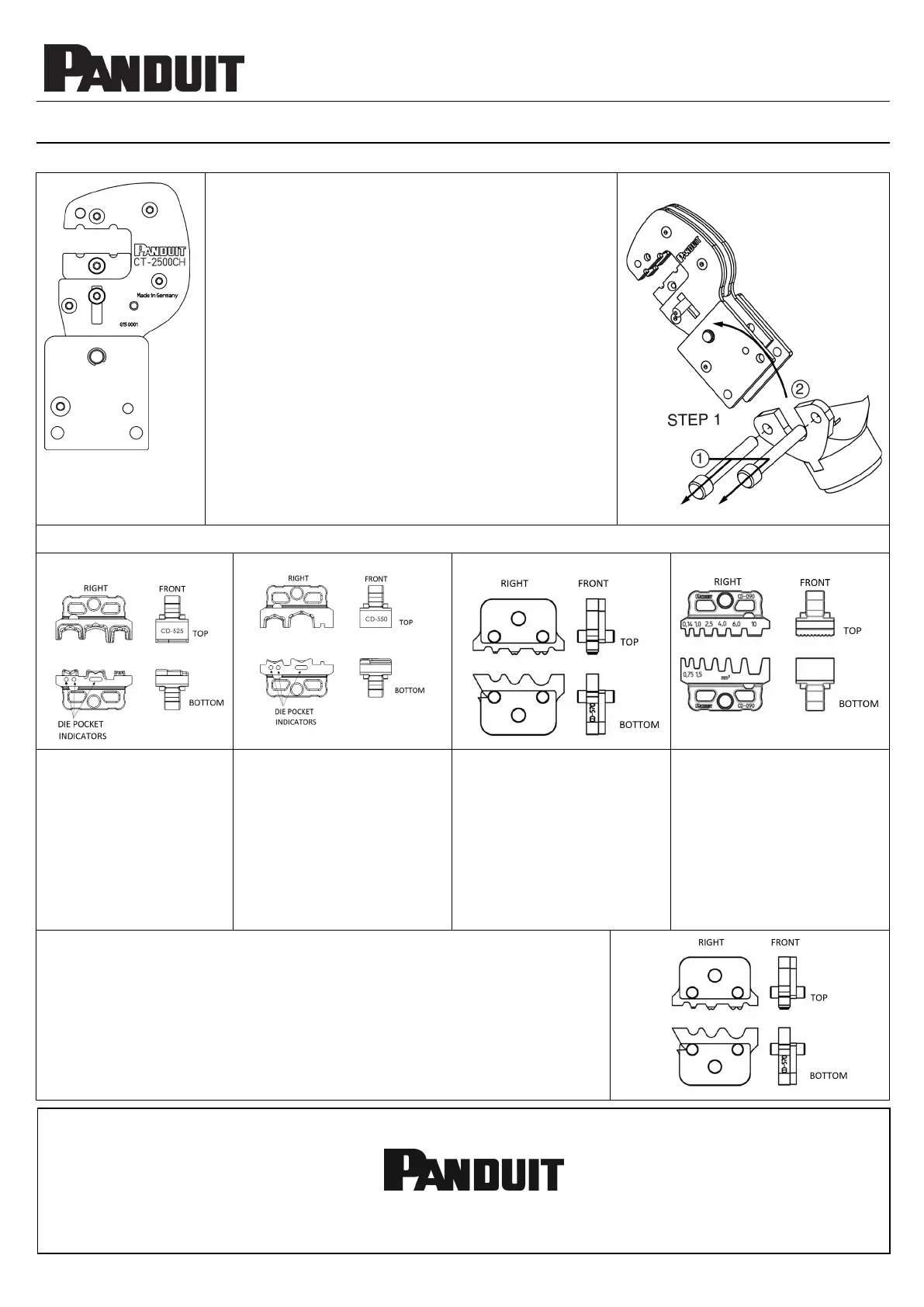

CRIMPING HEAD and CRIMP DIE INSERT INSTALLATION INSTRUCTIONS
© Panduit Corp. 2023
CT-2500CH
(shown without
Crimp Die Inserts)
CRIMPING HEAD REMOVAL / INSTALLATION
• Pull out the pins and remove crimp head for
mounting different crimping die inserts into the
crimp head. Once die inserts have been installed,
reinsert the crimp head and lock the head with
the locating pins (see Step 1) paying attention
that the pins are locked securely before starting.
• The crimping cycle is terminated when the dies
are completely closed and the maximum crimping
force is reached, which is indicated by the auto
retraction of the piston.
• Follow the instructions for installing crimp die
inserts below. The directional callouts indicate die
position for correct die orientation.
Refer to CT-2500, CT-2500/E (PA25346A01);
CT-2500/L or CT-2500/LE (PA28113A01) Operation
Manual for complete tool and crimping head
instructions.
NOTE: DIE MOUNTING ORIENTATION IS SAME FOR CT-2500CH, CT-2300 and UP14ZLW TOOLS.
CD-525
CD-550
CD-570
CD-090
Crimping Die for
installing the following
Panduit products:
#26 – #22 AWG insulated
terminals and splices,
#22 – #10 AWG fully insulated
disconnects, insulated parallel
splices; and specific #22 – #14
AWG barrel insulated
disconnects.
Crimping Die for installing
the following Panduit
products:
#22 – #10 AWG insulated
terminals and splices; and
specific insulated disconnects.
Crimping Die for installing
most of the following Panduit
products:
#22 – #10 AWG and 0,5 – 6,0 mm
2
non-insulated terminals,
disconnects; and specific non-
insulated splices.
Orient part seam on bottom half of
die opposite of indentor.
Crimping Die with square
profile for installing the
following Panduit products:
#26 – #10 AWG insulated and
non-insulated single wire ferrules;
and #22 - #12 AWG insulated twin
ferrules.
CRIMPING DIE INSERT INSTALLATION
Step 1: Align Crimp Die halves as shown.
• Crimp tabs should be centered on crimp pockets
• Color dot die halves should nest together when properly aligned. Crimp die
part numbers should be on top and in front (as shown above).
NOTE: CD-570 crimp die part number should be on bottom and in front
(as shown in view to the right). [Continued on Page 2]
E-mail:
techsupport@panduit.com
EU Website:
www.panduit.com/emea
EU Email:
emeatoolservicecenter
@panduit.com
www.panduit.com
Technical Support:
1-800-777-3300
Panduit Europe
EMEA Service Center
Almelo, Netherlands
Tel: +31-546-580-452
Fax: +31-546-580-441
